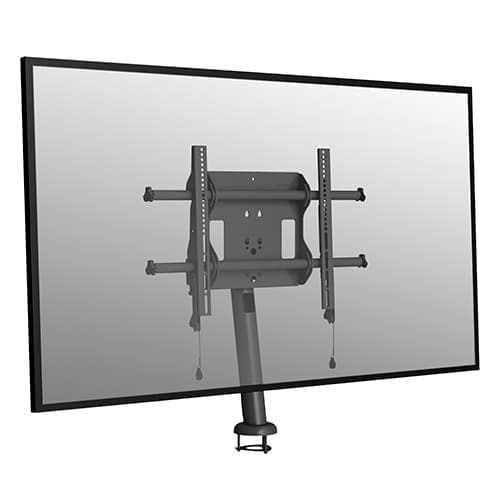

Large Fusion® Flat Panel Bolt-Down Table Stand
Bolt-down table stand for 46"–70" displays with manual swivel, height adjustment, and integrated cable management
The Chief LDB1U is a Large Fusion® Flat Panel Bolt-Down Table Stand designed to provide a secure, professional mounting solution for displays in hospitality and commercial environments. This stand supports a typical screen size range of 46" to 70" (1168–1778 mm) and has a maximum weight capacity of 125 lbs (56.7 kg). The mounting interface accommodates a VESA® pattern range from 100 x 100mm to 642 x 400mm. This unit allows for manual swivel adjustment to position the screen precisely, with the ability to set rotation limits at +/- 15° or 30° to prevent the display from colliding with walls or furniture. For a clean aesthetic, the design features a wide, in-column channel to route and conceal cables. The equipment height can be adjusted between 22" and 38" (56–96.5 cm). To maintain alignment, a set screw locking mechanism prevents lateral slide off-center during use. This SKU is the bolt-down version of the Fusion® series, distinguishing it from the stand-only solutions in the same line.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Equipment Height Range | 22" - 38" (56 - 96.5cm) |
| Shipping Dimensions | 33.5" x 16.75" x 5.63" (850.9 x 425.5 x 143.1 mm) |
| Shipping Weight | 25 lbs (11.3 kg) |
| Typical Screen Size | 46" - 70" (1168mm - 1778mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Swivel |
| Color | Black |
| Mounting Method | Bolt-Down Table Stand |
| Orientation | Landscape |
| TAA Compliant | No |
| UPC | 841872171609 |
| VESA Mounting Pattern | 100 x 100mm - 642 x 400mm |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
FCA112 Fusion® Secure CPU/Media Player Adapter
FCA112$111.20
FCA110 Fusion® CAT5/Surge/CPU Adapter
FCA110$27.20
Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® 14 Inch Above/Below Shelf for Large Displays
FCA801$152.80
Fusion® 8 Inch Above/Below Shelf for Large Displays
FCA800$130.40
Fusion® Center Channel Speaker, Large Displays
FCA830$172.80
Fusion® Low-Profile Above/Below Shelf for Large Displays
FCA803$140.00
Verified fitment
Questions about this part
Will the Chief LDB1U fit my specific display?
The LDB1U is verified against 10,572 display models from 312 manufacturers. Examples include the Samsung 320MX, LG 32CS460, and Panasonic 55VW3KD.
What do I need to buy to complete the installation?
The LDB1U is a mounting stand. You may need accessories such as the FCA800 or FCA801 Fusion® Shelves or the FCA110 Fusion® CPU Adapter for your specific setup.
How do I manage cables with this stand?
You can easily route and conceal all cables through a wide, integrated in-column channel within the stand's structure.
Can I limit how far the screen rotates?
Yes, you can set rotation limits at either +/- 15° or 30° to prevent the display from striking walls or nearby furniture.
What height adjustments are available?
The stand provides an equipment height range of 22" to 38" (56–96.5 cm) via manual adjustment.
