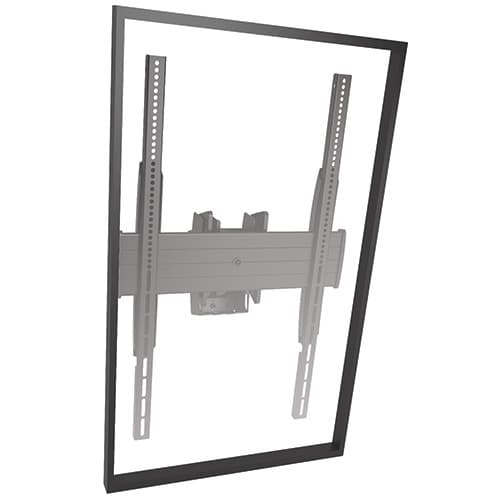

Fusion® Large Portrait Flat Panel Ceiling Mount - LCM1UP
Large portrait-oriented ceiling mount for digital signage with Centris® fingertip tilt technology
The Chief LCM1UP is a Fusion® Large Portrait Flat Panel Ceiling Mount designed specifically for digital signage installations where precise display positioning is critical. This mount allows for a single large-format display to be positioned in a portrait orientation directly from the ceiling. It features Centris® Fingertip Tilt technology, which enables installers to effortlessly adjust the display using a simple on/off connection for easier installation and servicing. The tilt range includes +5° and -20° adjustments, supplemented by a 3° roll to ensure perfect alignment. This unit is TAA compliant and UL Listed. To complete your installation, a ceiling plate and an extension column must be ordered separately. The LCM1UP is compatible with traditional 1.5" NPT ceiling plates and the newer CPA pinned ceiling plate and column system. When utilizing CPA columns, multiple mounts can be stacked on a single pole for streamlined, repeatable installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 37" x 24" x 9" (939.8 x 609.6 x 228.6 mm) |
| Shipping Weight | 26 lbs (11.8 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Tilt |
| Adjustments | Roll: 3° |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 1 |
All other specifications 6
| Orientation | Portrait |
| TAA Compliant | Yes |
| Tilt | +5° and - 20° |
| UPC | 841872159096 |
| VESA Mounting Pattern | 200 x 100mm - 460 x 800mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
CMS0406, 4-6' Adjustable Extension Column, Pole
CMS0406$193.60
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in Black
CMA100$208.00

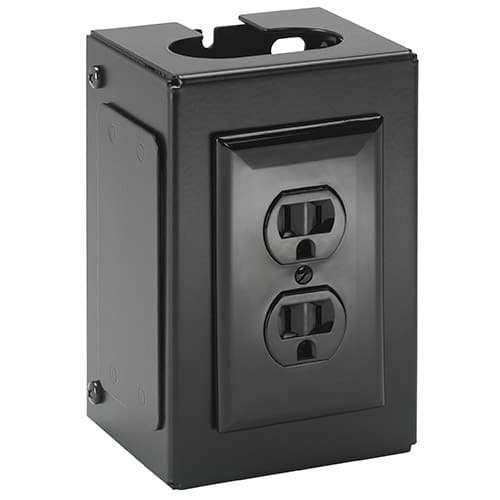

Fusion® Power Outlet Accessory
FCA540$67.20
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
CMS1012, 10-12' Adjustable Extension Column, Pole
CMS1012$278.40
Pin Connection Column 120 Inch (304.8 cm)-CPA120
CPA120$208.00
Truss Clamp - CPA Compatible
CPA380$138.40
Pin Connection Pole and Truss Adapter
CPA365$103.20
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Verified fitment
Questions about this part
Will the LCM1UP fit my specific display model?
This mount is verified against 12,172 display models from 327 manufacturers, including the Sony 65BZ30P, LG 32LD690, and Samsung 400CX.
What additional components are required for installation?
A ceiling plate and an extension column must be purchased separately to complete the assembly.
Can I stack multiple mounts on one pole?
Yes, you can stack mounts on a single pole if you are using the CPA column system.
Does the LCM1UP support landscape orientation?
The LCM1UP is specifically configured for portrait orientation; see the series variants for landscape options.
What is the weight capacity for this ceiling mount?
The LCM1UP supports a maximum weight capacity of 125 lbs (56.7 kg).
