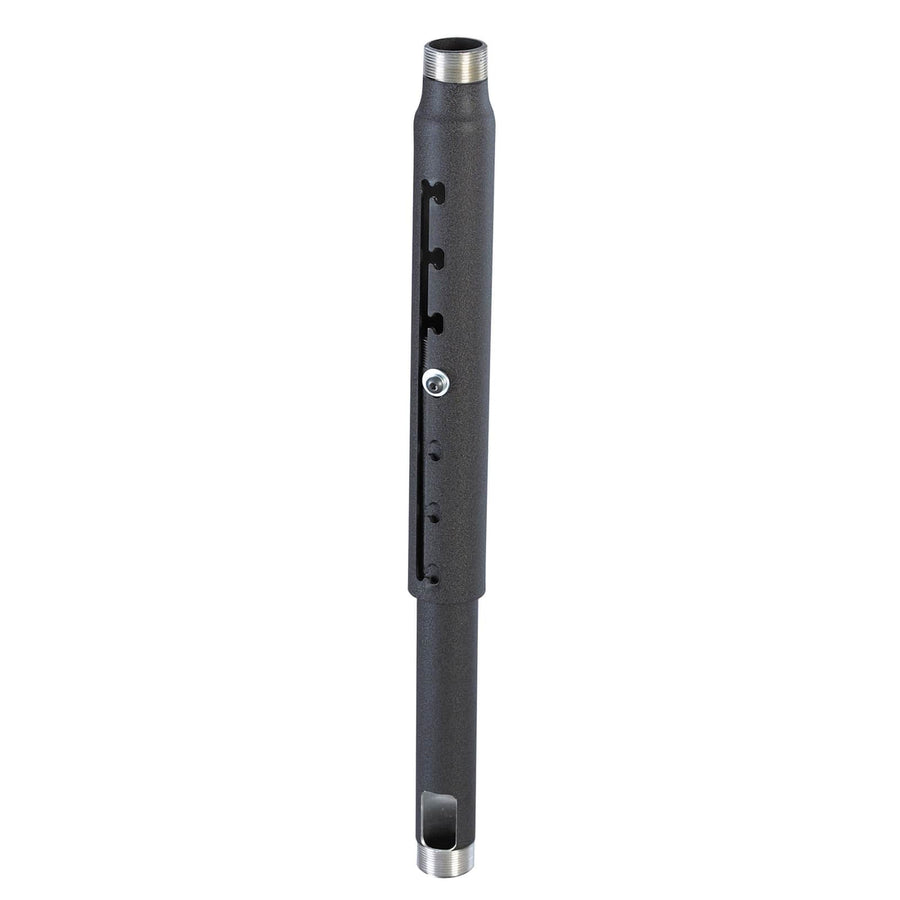

CMS0406, 4-6' Adjustable Extension Column, Pole
Adjustable 4' - 6' (1.22m - 1.83m) extension column for pole applications with a 500 lbs capacity
The Chief CMS0406 is an adjustable extension column designed for pole applications. This 1.5" NPT column is threaded on both ends and offers a height adjustment range of 4' - 6' (1.22m - 1.83m). The notched design allows for height adjustments in 1" increments without the need for disassembly, saving significant installation time. To ensure stability once the desired height is reached, a set screw is included. This column has a 500 lbs (226.8 kg) weight capacity and can be used in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories. It is UL Listed and TAA Compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 4' - 6' (1.22m - 1.83m) |
| Height | 72 in (182.9 cm) |
| Overall Dimensions | 72.0" x 2.3" x 2.3" (1829 x 59 x 59 mm) |
| Shipping Weight | 7.25 lbs (3.3 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872092850 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
Will this column work with my Chief ceiling plate?
Yes, this column is designed to be used with any Chief 1.5" NPT ceiling plate or compatible accessories.
How do I adjust the height of the CMS0406?
The notched design allows for height adjustments in 1" increments without requiring disassembly of the column.
What is the maximum weight capacity for this extension?
The CMS0406 has a weight capacity of 500 lbs (226.8 kg).
What other accessories are compatible with this column?
You can use various accessories such as the CMA151 1.5 Inch to 1 Inch NPT Adapter or the CMA274 Quick-Snap Cable Covers.
Is this product TAA compliant?
Yes, the CMS0406 is TAA Compliant and UL Listed.
