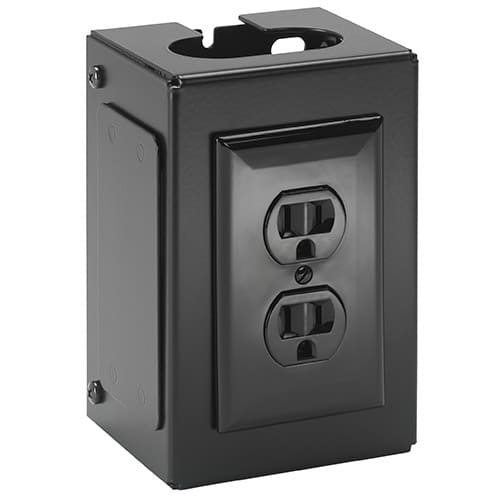

Fusion® Power Outlet Accessory
Power outlet housing for Fusion crossbars and LCM ceiling mounts, allowing for flexible vertical or horizontal installation
The Chief FCA540 is a specialized power outlet housing designed to facilitate electrical access within a Fusion system. This accessory allows installers to position a power outlet exactly where it is required for a specific installation. It is designed to be mounted directly to the back of single LCM ceiling mounts in a vertical orientation, or it can be positioned horizontally anywhere along the length of a newer Fusion crossbar. Because of this infinite lateral positioning capability along the backside of the Fusion interface, you can accommodate various cable entry points and power requirements without compromising the aesthetic of the installation. This component is TAA compliant and serves as the necessary housing to support an electrical outlet within your existing Fusion infrastructure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8.25" x 5.5" x 5.5" (209.6 x 139.7 x 139.7 mm) |
| Shipping Weight | 2.63 lbs (1.2 kg) |
| Accessory Type | Power |
| Application | Power Outlet |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872156545 |
| Certifications | TAA |
Resources
Questions about this part
Does the FCA540 include the actual power outlet?
No, the FCA540 is an accessory housing only; the power outlet itself is not included.
Where can I mount the FCA540 within a Fusion system?
You can install this housing vertically on the back of single LCM ceiling mounts or horizontally at any point along a newer Fusion crossbar.
Is the FCA540 TAA compliant for government projects?
Yes, this accessory is TAA compliant.
Can this be installed in both portrait and landscape orientations?
The housing can be fastened to the system in either a vertical or horizontal orientation to meet your installation needs.
Which technical documents are available for submittals?
You can access the FCA540 technical drawing, CAD drawing (dwg), and the installation manual through the resources tab.
