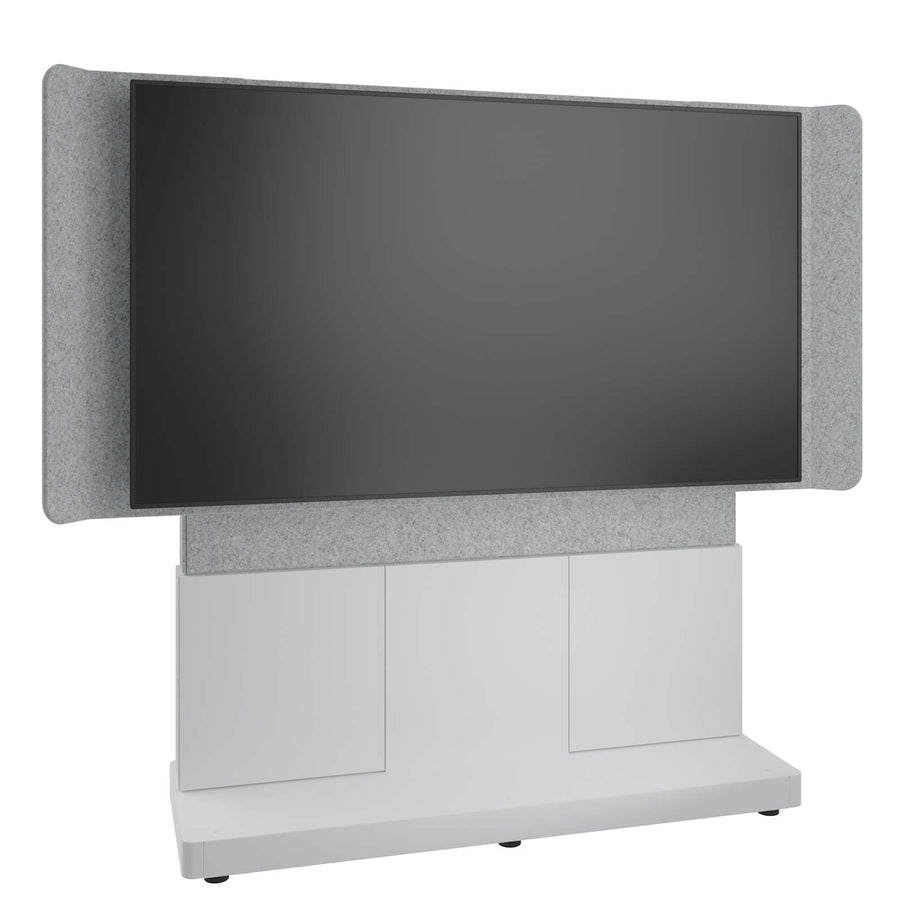

Forum™ Free-Standing 66" (3 Bay) Display Stand for (1) 70" to 75" Display, Light Colorway
Free-standing 66" 3-bay display stand for 70" to 75" displays, featuring Silver Gray acoustic felt and a Designer White finish
The Middle Atlantic FM-DS-6675FS-DD8W is a Forum™ Free-Standing Display Stand designed to support hybrid collaboration in both open and closed workspaces. This 66" wide stand is configured for a single 70" to 75" display and includes a Chief Fusion Modular Extrusion with fixed interface brackets. To enhance audio quality for both local and remote participants, the upper tower and display shroud are wrapped in Silver Gray acoustic felt made from 100% polyester, which includes up to 50% recycled PET plastic bottles. The base and equipment area feature a Designer White high-pressure laminate (HPL) and powder-coated steel finish. This 3-bay unit provides 4 RU of vertical rack mounting space and includes patented Lever Lock™ technology for vertical mounting. For efficient cable management, the base is compatible with Wiremold OFR and Connectrac Raceways via the 1" leveling foot. Equipment is easily accessible through sliding front doors and removable top/bottom rear panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 74.5 in (189.2 cm) |
| Max Screen Size | 75 in (190.5 cm) |
| Mounting Depth Max | 16.78 in (42.6 cm) |
| Mounting Depth Min | 7.78 in |
| Product Weight | 299 lbs (135.6 kg) |
| Rack Units | 4 RU |
| Shipping Weight | 370.55 lbs (168.1 kg) |
All other specifications 18
| Supported Display Size | 70" - 75" |
| Weight Capacity | Display: 150lbs (68kg), Rack: 50lbs per bay (22.6kg) |
| Width | 66 in (167.6 cm) |
| Available Internationally | Yes |
| Base Series | Forum |
| Color | Designer WhiteWhite and Silver Gray |
| Colorway | Light |
| Federal Ops Country of Origin | USA |
| Manufacturer | Middle Atlantic |
| Material | Acoustic Felt (PET)HPLMDFSteel |
| Mounting Style | Free-Standing |
| Number of Bays | 3 |
| Number of Displays | 1 |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747398490 |
| Certifications | TAA |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
IntelliSHOT Auto-Tracking Camera
999-21100-000$2,129.40
ConferenceSHOT ePTZ Camera
999-21050-000$1,018.80

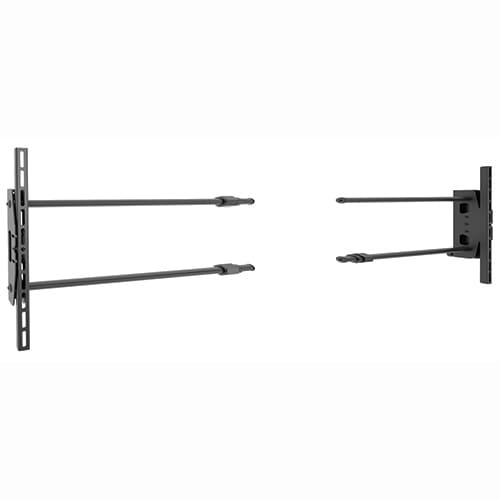

Fusion® Side Channel Speaker Adapter, Extra-Large Displays
FCA841$255.20
Fusion® Center Channel Speaker, Extra-Large Displays
FCA840$196.80
Fusion® Above/Below IntelliSHOT Camera Mount for Extra-Large Displays
FCA810E$201.60

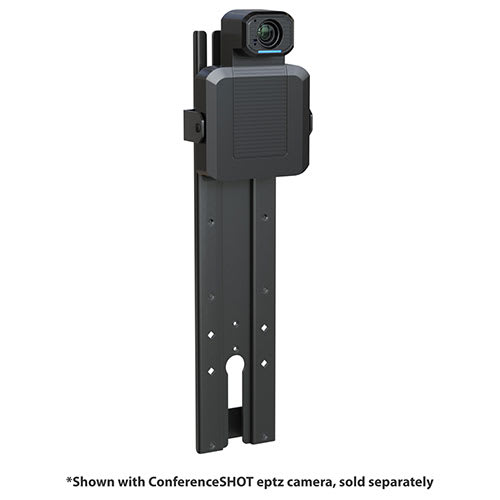

Fusion® Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
FCA800K$106.40
Fusion® and Thinstall™ Hardware Kits | Legrand AV
FHB5149$116.80
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60

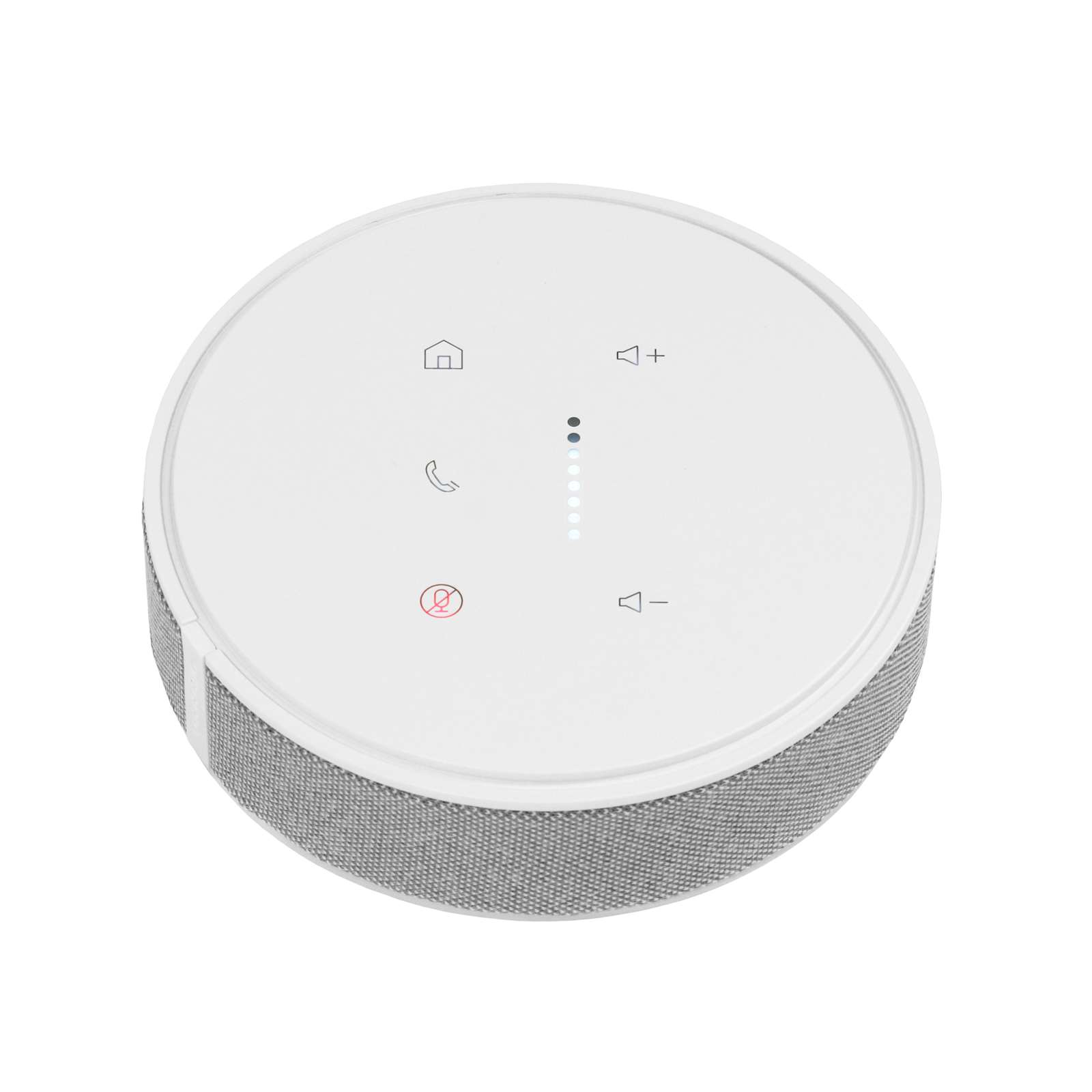

TableMIC Microphone
999-85000-000W$570.60
CeilingMIC Microphone
999-85100-000$641.70
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Questions about this part
Will this stand fit my 75 inch display?
Yes, the FM-DS-6675FS-DD8W is specifically designed to support a single display between 70" and 75" in size.
What equipment mounting options are included in the rack space?
The stand features 4 RU of rack space with 10-32 rack rails and utilizes patented Lever Lock™ technology for secure vertical mounting.
How is equipment accessed for servicing and maintenance?
Installers can access equipment through sliding doors on the front and through removable panels located on the top and bottom of the rear section.
What do I need to buy to complete the cable management?
The base is designed to accept Wiremold OFR or Connectrac Raceways underneath using the integrated 1" leveling foot.
Can I add more hardware to support specific devices like Logitech Rally Bar?
Yes, specialized accessories like the Fusion® Display Mount Accessory for Logitech® Rally Bar (FCALRB1) are compatible with this series.
