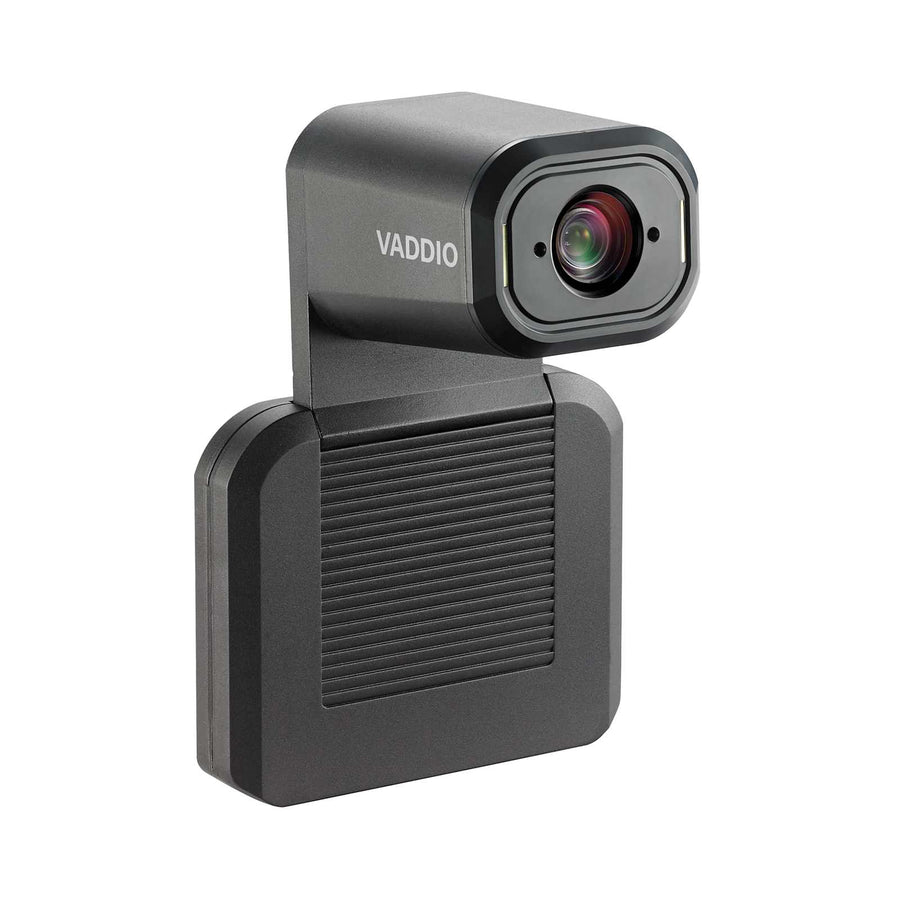

IntelliSHOT Auto-Tracking Camera
Auto-tracking ePTZ camera with IntelliFrame technology, 30x total zoom, and integrated beamforming microphones
The Vaddio 999-21100-000 IntelliSHOT Auto-Tracking Camera is a professional-grade solution designed to simplify video collaboration in medium and large rooms. Utilizing advanced IntelliFrame™ technology, this camera provides smooth, lifelike auto-framing and motion tracking by leveraging highly sensitive motion detection and advanced algorithms rather than facial recognition. This ensures participants remain in view even if they are wearing masks. The IntelliSHOT features a high-performance 8.51 Megapixel 1/2.5-type Exmor R CMOS sensor, providing exceptional image quality and a 70.2° wide field of view. It offers a 30x total zoom, combining 20x true optical zoom with 10x IntelliZoom™ Image Processing to maintain high resolution at any magnification. For audio, the unit includes two integrated beamforming microphones with built-in Acoustic Echo Cancellation (AEC) for streamlined conferencing. Deployment is simplified via PoE+ power and balanced audio I/O for integration with third-party audio systems. Installers can remotely fine-tune IntelliFrame speed, sensitivity, and responsiveness through the built-in web interface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.5 in (11.4 cm) |
| Height | 8.38 in (21.3 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.25 lbs (1.9 kg) |
| Shipping Dimensions | 14" x 13" x 13" (355.6 x 330.2 x 330.2 mm) |
| Shipping Weight | 9 lbs (4.1 kg) |
| Storage Temperature | 32° to 104°F (0° - 40°C) |
| Width | 6 in (15.2 cm) |
All other specifications 33
| 3rd Party Control | Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | Fixed |
| Color | Black |
| Control Method | TelnetTouch ScreenWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Input Ports | AudioNetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p30 |
| OneLINK Compatibility | No |
| Output Ports | AudioHDMIIP StreamingNetworkUSB 3.0 Type B |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| Quick-Connect Compatibility | No |
| Signal Type | AudioHDMIIP StreamingUSB 2.0USB 3.0 |
| Solution Type | Camera Only |
| Special Features | Audio IOAuto-FramingInfoComm |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077507121 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CECertified for Barco ClickShare ConferenceRoHSTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
440-1015-015$632.70
PAC810E Above/Below IntelliSHOT Camera Mount for Extra-Large Displays
PAC810E$132.00
PAC800E Above/Below IntelliSHOT Auto-Tracking Camera Mount for Large Displays
PAC800E$120.80
Vaddio RF Remote Commander
998-2180-000$145.80
0.5ft (0.15m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28874$12.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
USB 3.0 Type A to Type B Active Cable - 20m
440-1005-023$611.10
USB 3.0 Type A to Type B Active Cable - 30m
440-1005-025$854.10
USB 3.0 Type A to Type B Active Cable - 8m
440-1005-008$230.40
Thinstall™ Above/Below IntelliSHOT Camera Mount for Large Displays
TA210E$108.00
Questions about this part
Will the IntelliSHOT 999-21100-000 fit my room size?
This camera is designed for medium and large rooms. It features a 70.2° wide field of view and 30x total zoom to cover large spaces effectively.
How do I control the camera's auto-framing settings?
Installers can use the built-in web interface to remotely fine-tune IntelliFrame settings, including speed, sensitivity, and responsiveness to movement.
What mounting accessories are compatible with the IntelliSHOT?
Compatible mounting options include the PAC800E for large displays, the PAC810E for extra-large displays, and Thinstall™ or Fusion® mounts.
Does this camera require a separate microphone for conferencing?
The IntelliSHOT includes two integrated beamforming microphones with built-in Acoustic Echo Cancellation (AEC) to simplify audio for small to mid-size rooms.
What video outputs are available on the 999-21100-000?
The unit provides simultaneous HDMI, USB 3.0, and H.264 IP Streaming (RTSP or RTMP) outputs for versatile integration.
