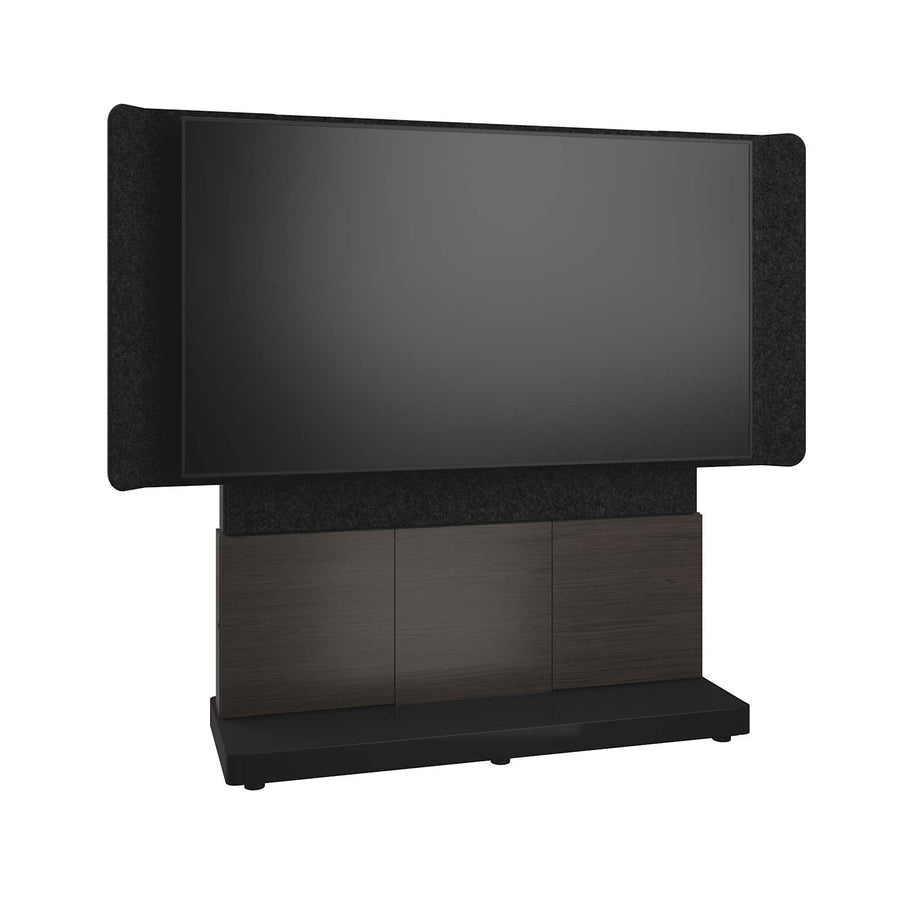

Forum™ Free-Standing 66" (3 Bay) Display Stand for (1) 70" to 75" Display, Dark Colorway
Free-standing 66" display stand for 70" to 75" displays, featuring a 3-bay rack area and acoustic felt shroud
The FM-DS-6675FS-DA3B is a Forum™ Free-Standing 66" (3 Bay) Display Stand designed to support hybrid collaboration in both open and closed workspaces. This stand is engineered to host a single 70" to 75" display via an included Chief Fusion Modular Extrusion and fixed interface brackets. To improve audio quality for both local and remote participants, the upper tower and display shroud are wrapped in Charcoal Gray acoustic felt made from 100% polyester, which contains up to 50% recycled PET plastic bottles to reduce echo. The storage area features 3 bays of equipment mounting, providing 4 RU of vertical rack space and 50 lbs of capacity per bay. Access to equipment is facilitated through sliding front doors and removable top and bottom rear panels. The base is powder-coated in a satin black finish, while the equipment storage area utilizes Wilsonart Asian Night high-pressure laminate (HPL). The 66-inch wide unit provides a slim footprint and includes a 1” leveling foot. It is TAA Compliant and manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 74.5 in (189.2 cm) |
| Max Screen Size | 75 in (190.5 cm) |
| Mounting Depth Max | 16.78 in (42.6 cm) |
| Mounting Depth Min | 7.78 in |
| Product Weight | 299 lbs (135.6 kg) |
| Rack Units | 4 RU |
| Shipping Weight | 370.55 lbs (168.1 kg) |
All other specifications 18
| Supported Display Size | 70" - 75" |
| Weight Capacity | Display: 150lbs (68kg), Rack: 50lbs per bay (22.6kg) |
| Width | 66 in (167.6 cm) |
| Available Internationally | Yes |
| Base Series | Forum |
| Color | Asian NightBlack and Charcoal Gray |
| Colorway | Dark |
| Federal Ops Country of Origin | USA |
| Manufacturer | Middle Atlantic |
| Material | Acoustic Felt (PET)HPLMDFSteel |
| Mounting Style | Free-Standing |
| Number of Bays | 3 |
| Number of Displays | 1 |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747398483 |
| Certifications | TAA |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
IntelliSHOT Auto-Tracking Camera
999-21100-000$2,129.40
ConferenceSHOT ePTZ Camera
999-21050-000$1,018.80
Fusion® Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
FCA800K$106.40
Fusion® Above/Below IntelliSHOT Camera Mount for Extra-Large Displays
FCA810E$201.60
Fusion® Side Channel Speaker Adapter, Extra-Large Displays
FCA841$255.20
Fusion® Center Channel Speaker, Extra-Large Displays
FCA840$196.80
Fusion® and Thinstall™ Hardware Kits | Legrand AV
FHB5149$116.80
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60
TableMIC Microphone
999-85000-000W$570.60
CeilingMIC Microphone
999-85100-000$641.70
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Questions about this part
What display sizes is the FM-DS-6675FS-DA3B compatible with?
This stand is specifically designed to support a single display between 70" and 75".
How much weight can the equipment bays hold?
The stand features 3 bays, each capable of supporting 50 lbs (22.6 kg) of equipment.
Can I add cable management under the stand?
Yes, the slim base is designed to accept Wiremold OFR and Connectrac Raceways underneath using the 1" leveling foot.
How is equipment accessed for maintenance or servicing?
Service is simplified by sliding access doors on the front and removable top and bottom panels on the rear.
Which documents are available for submittals?
You can access the Forum Collaboration Suite 66" Display Stand Instruction Sheet and the technical specification drawings for submittal purposes.
