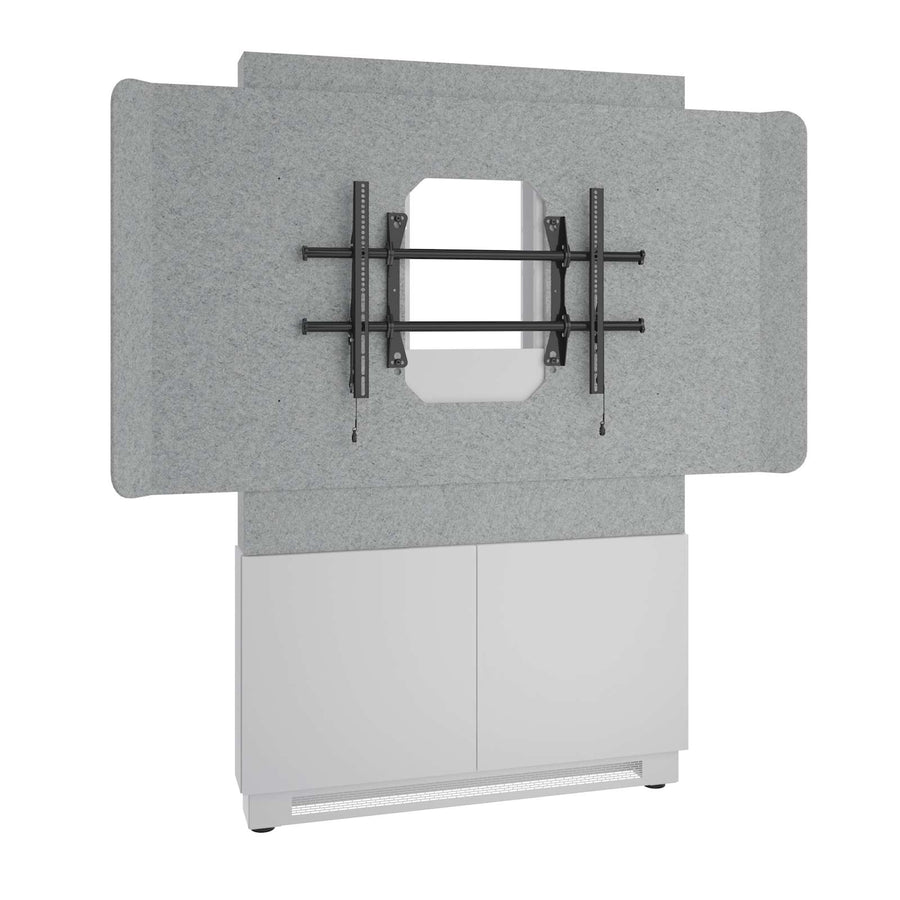

Forum™ Floor-to-Wall Mounted 48" (2-Bay) Display Stand for (1) 56" to 65" Display, Light Colorway
Floor-to-wall display stand for 56"–65" displays, featuring 2-bay equipment storage and acoustic felt shroud in a light colorway
The FM-DS-4875FW-BD8W is a 48" wide Forum™ Floor-to-Wall Mounted Display Stand designed to facilitate hybrid collaboration in professional workspaces. This stand supports a single 56" to 65" display via an included Chief Fusion Fixed display mount. To optimize audio quality for both local and remote participants, the upper tower and display shroud are wrapped in Silver Gray acoustic felt made of 100% polyester PET, which contains up to 50% recycled plastic bottles. This shroud helps limit audio reverberation and reduces echo during meetings. The stand features two bays of equipment storage with a 4 RU capacity and utilizes patented Lever Lock™ technology for vertical rack mounting. For easy maintenance, the front access doors slide open to provide unimpeded access to the 2-bay system. The unit is built with a 6 in (15.2 cm) depth, allowing it to sit nearly flush to the wall while accommodating Wiremold OFR or Connectrac Raceways underneath via a 1" leveling foot.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6 in (15.2 cm) |
| Height | 74.5 in (189.2 cm) |
| Max Screen Size | 65 in (165.1 cm) |
| Mounting Depth Max | 16.78 in (42.6 cm) |
| Mounting Depth Min | 7.78 in |
| Product Weight | 166 lbs (75.3 kg) |
| Rack Units | 4 RU |
| Shipping Weight | 246 lbs (111.6 kg) |
All other specifications 18
| Supported Display Size | 56" - 65" |
| Weight Capacity | Display: 150lbs (68kg), Rack: 50lbs per bay (22.6kg) |
| Width | 48 in (121.9 cm) |
| Available Internationally | Yes |
| Base Series | Forum |
| Color | Designer WhiteWhite and Silver Gray |
| Colorway | Light |
| Federal Ops Country of Origin | USA |
| Manufacturer | Middle Atlantic |
| Material | Acoustic Felt (PET)HPLMDFSteel |
| Mounting Style | Floor-to-Wall |
| Number of Bays | 2 |
| Number of Displays | 1 |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747398452 |
| Certifications | TAA |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
IntelliSHOT Auto-Tracking Camera
999-21100-000$2,129.40
ConferenceSHOT ePTZ Camera
999-21050-000$1,018.80
Fusion® Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
FCA800K$106.40
Fusion® Side Channel Speaker Adaptor
FCA831$231.20
Fusion® Center Channel Speaker, Large Displays
FCA830$172.80
Fusion® and Thinstall™ Hardware Kits | Legrand AV
FHB5149$116.80
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60
Fusion® Above/Below IntelliSHOT Camera Mount for Large Displays
FCA800E$154.40
TableMIC Microphone
999-85000-000W$570.60
CeilingMIC Microphone
999-85100-000$641.70
Fusion® 14 Inch Above/Below Shelf for Large Displays
FCA801$152.80
Questions about this part
Yes, this stand is designed specifically to support a single 56" to 65" display.
The unit is verified to support a single display within the 56" to 65" range.
The display has a weight capacity of 150 lbs (68 kg), while each of the two bays can support 50 lbs (22.6 kg) of equipment.
This stand accommodates a 150 lbs (68 kg) display and provides 50 lbs (22.6 kg) of capacity per bay.
This model is a floor-to-wall mount that secures to the wall with minimal hardware and fasteners.
It is a floor-to-wall mounting style that requires minimal hardware for installation.
Yes, the stand's 1" leveling foot allows it to accept Wiremold OFR or Connectrac Raceways underneath.
The design allows for clean cable paths using Wiremold or Connectrac solutions.
The product documentation includes the Forum Collaboration Suite 48" Display Stand Instruction Sheet and CAD Technical Specification Drawings.
Installers can access the instruction sheet and Revit models for technical planning.
