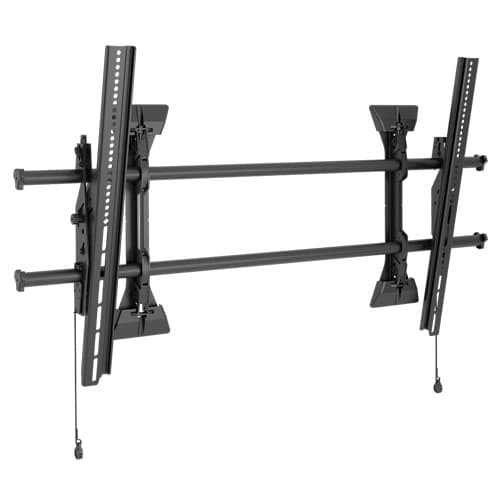

Extra-Large Fusion® Micro-Adjustable Tilt Wall Mount, TAA Compliant
Extra-large tilt wall mount for 55" to 100" displays, 250 lbs capacity, featuring micro-adjustability and TAA compliance
The Chief XTM1U-G is an extra-large Fusion® Wall Tilt Mount designed to solve common installation challenges for large-format displays. Engineered for professional environments like corporate offices, digital signage, and hospitality, this mount provides a low-profile solution for displays ranging from 55" to 100" (1397mm - 2540mm). It supports a maximum weight capacity of 250 lbs (113.4 kg) and accommodates a maximum screen thickness of 6 in (152.4 mm). This TAA compliant and UL Listed mount features integrated Centris tilt, ControlZone leveling, and ClickConnect Latching to ensure a faster, more secure installation. For installers requiring precise positioning, the mount offers micro-adjustable, lateral shift, and 1 in (25.4 mm) manual height adjustment. It is verified for use with 10,269 display models from 254 manufacturers, including Samsung 460CX, Sony 55BZ30P, and LG 100QNED85AU. The mount is designed for landscape orientation and is compatible with OSHPD requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.5 in (6.4 cm) |
| Height | 24.5 in (62.2 cm) |
| Manual Height Adjustment | 1 in (25.4 mm) |
| Maximum Screen Thickness | 6 in (152.4 mm) |
| Minimum Depth | 2.5 in (6.4 cm) |
| Overall Dimensions | 24.5" x 42.75" x 2.5" (622 x 1086 x 64 mm) |
| Shipping Weight | 26.27 lbs (11.9 kg) |
| Typical Screen Size | 55" - 100" (1397mm - 2540mm) |
All other specifications 14
| Wall Stud Compatibility | 24" - 42" (610mm - 1067mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 42.75 in (108.6 cm) |
| Adjustability | Height AdjustableLateral ShiftMicro-AdjustableTilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +5° / -12° |
| UPC | 841872165547 |
| VESA Mounting Pattern | 100 x 100mm - 1070 x 600 mm |
| Certifications | OSHPDTAAUL Listed |
Resources
You'll need these with it
Fusion® Pull Out Accessory
FCAV1U$412.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
PAC525FC, In-Wall Storage Box with Flange and Cover
PAC525FC$140.00
FCK016, Fusion® Connector Kit - 16 Inch
FCK016$63.20
FCK008, Fusion® Connector Kit - 8 Inch
FCK008$50.40
Fusion® Wall Plate
FCA115$103.20
FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
FCK000, Fusion® Connector Union
FCK000$30.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC526FC, Large In-Wall Storage Box with Flange and Cover
PAC526FC$200.80
Verified fitment
Questions about this part
Will the XTM1U-G fit my specific display?
This mount is verified against 10,269 display models from 254 manufacturers, including Samsung 460CX, Sony 55BZ30P, LG 100QNED85AU, and Panasonic LH65QM1.
What kind of wall mounting is required for the XTM1U-G?
The mount is designed for wall applications and is compatible with wall stud spacing of 24" to 42" (610mm - 1067mm).
What accessories are compatible with this Fusion® mount?
You can expand the installation with accessories like the FCA813 Fusion® Low-Profile Above/Below Shelf, the FCA820 Fusion® Center Camera Shelf - 8 Inch, or the FCA112 Fusion® Secure CPU/Media Player Adapter.
How much tilt adjustment does the XTM1U-G provide?
The mount offers a tilt range of +5° to -12° to help manage glare and ensure optimal viewing angles for large-format displays.
Does this mount support heavy or thick displays?
Yes, it is built to support displays up to 250 lbs (113.4 kg) with a maximum screen thickness of up to 6 in (152.4 mm).
