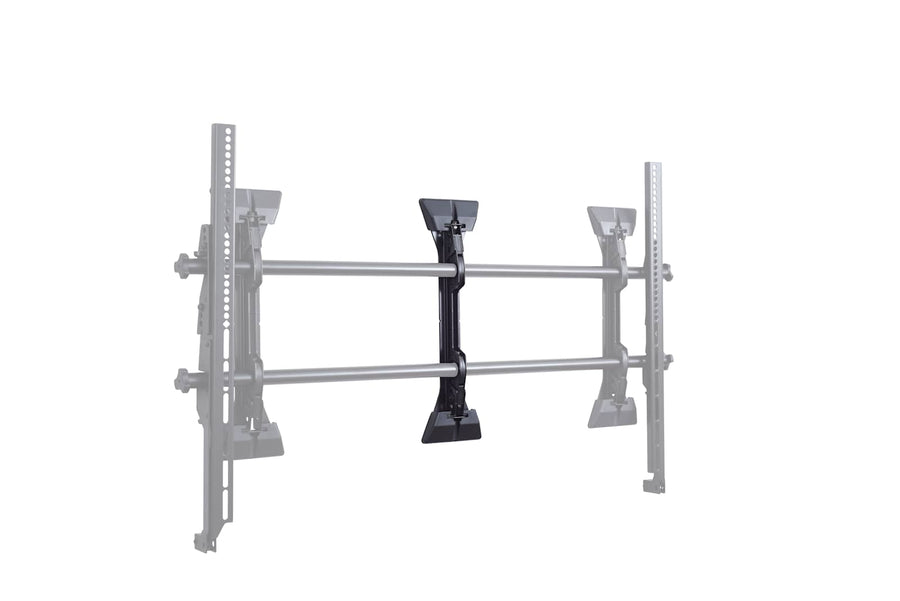

Fusion® Wall Plate
Fusion® wall plate for XSM1U and XTM1U mounts with 24" studs and narrow display mounting patterns
The Chief FCA115 Fusion® Wall Plate is specialized mounting hardware designed to facilitate installation when working with 24" studs and displays that feature narrow mounting patterns. This accessory is intended for use specifically with the XSM1U and XTM1U mount series. Its 17" x 4.75" x 1.61" (406 x 121 x 41 mm) profile provides the necessary interface to bridge the gap between the wall structure and the display mount. This plate is an essential component for installers managing specific architectural constraints or non-standard display configurations during a Fusion® series installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.61 in (4.1 cm) |
| Height | 17 in (43.2 cm) |
| Overall Dimensions | 17" x 4.75" x 1.61" (406 x 121 x 41 mm) |
| Shipping Weight | 4.25 lbs (1.9 kg) |
| Width | 4.75 in (12.1 cm) |
| Accessory Type | Mounting Hardware |
| Color | Black |
| TAA Compliant | No |
| UPC | 841872166582 |
Resources
Questions about this part
What mounts is the FCA115 compatible with?
The FCA115 is designed to be used with the Chief XSM1U and XTM1U wall mount series.
When should I use this wall plate?
This plate should be used when installing on 24" studs or when working with displays that have narrow mounting patterns.
Will it work with my Sony or NEC display?
It is verified for use with various models, including the Sony GXDL65H1 and NEC P701, P701AVT, and P702, P702AVT.
Which other manufacturer displays is this compatible with?
It is verified for use with Cybertouch RMT7002, EYEVIS LCD64004K, LCD7000HD, Sharp PNL802B, and TOSHIBA L65A5XP.
Where can I find the installation manual for the FCA115?
The FCA115 installation manual is available as a PDF document in the Resources section for installation guidance.
