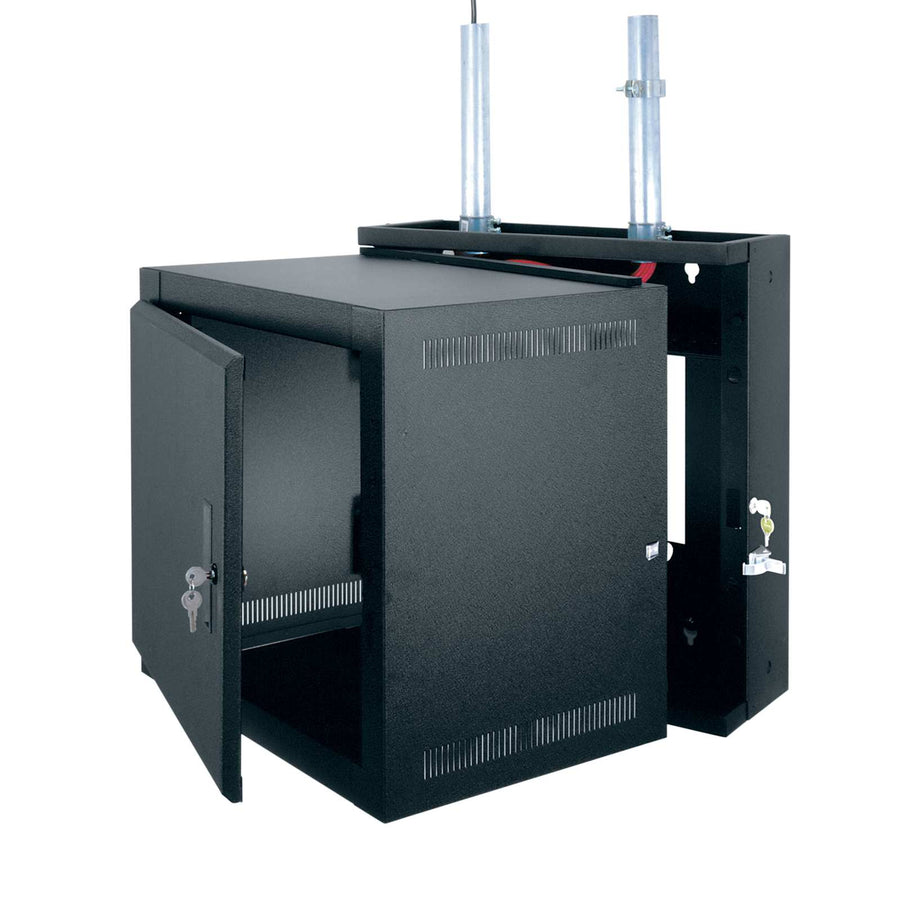

EWR Series Pivoting Wall Rack - EWR-8-22SD
8 RU pivoting wall rack with 22" depth and 150 lbs UL load capacity, featuring a reversible center section and solid front door
The EWR-8-22SD is a specialized 8 RU pivoting wall rack designed to provide an economical, high-quality solution for smaller system deployments in both secured and unsecured environments. This sectional wall cabinet features a 22 in (55.9 cm) total depth with a 20 in (50.8 cm) usable depth, making it a versatile choice for space-constrained installations. The center section utilizes a patented Tool Free Quick-Mount™ system for efficient mounting of the center section. For increased security, the center section swing is reversible and can be secured with either a key or a padlock, notably featuring a different keying than the optional front door. The unit is optimized for passive thermal management to protect sensitive electronics. It comes fully assembled with a solid front door and includes standard front adjustable 10-32 threaded rackrails. This TAA compliant enclosure is UL Listed in the US and Canada with a verified load capacity of 150 lbs (68 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 21 in (53.3 cm) |
| Product Weight | 68 lbs (30.8 kg) |
| Rack Units | 8 RU |
| Shipping Weight | 69 lbs (31.3 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 14 in (35.6 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057281 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
1 RU Mounting Rackshelf - 12 Piece
UTR1-RP12$615.60
Multi-Mount PDU, 20 Outlet & 15A
PD-2015R-NS$333.00
8 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR8$59.40
4 RU UCP Series Frame Kit
FK4$117.90
Cover Plate for DWR Series
DWR-CVR$60.30
Wide Unit Shelf System, 14 Inches Deep
WUSS14$122.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
Questions about this part
How much weight can the EWR-8-22SD actually support?
The EWR-8-22SD is UL Listed with a 150 lbs (68 kg) load capacity.
What is the usable internal depth for my equipment?
While the total depth is 22 in (55.9 cm), this rack provides a 20 in (50.8 cm) usable depth.
Can I secure the center section of this rack?
Yes, the center section swing is reversible and can be secured with a key or a padlock; it is keyed differently than the optional front door.
What accessories are compatible with the EWR series?
Compatible components include the QTFP-2 fan panel, QBP-2 blower panel, and various Wide Unit Shelf Systems like the WUSS17-5.
Is this rack TAA compliant for government contracts?
Yes, the EWR-8-22SD is TAA compliant and UL Listed in the US and Canada.
