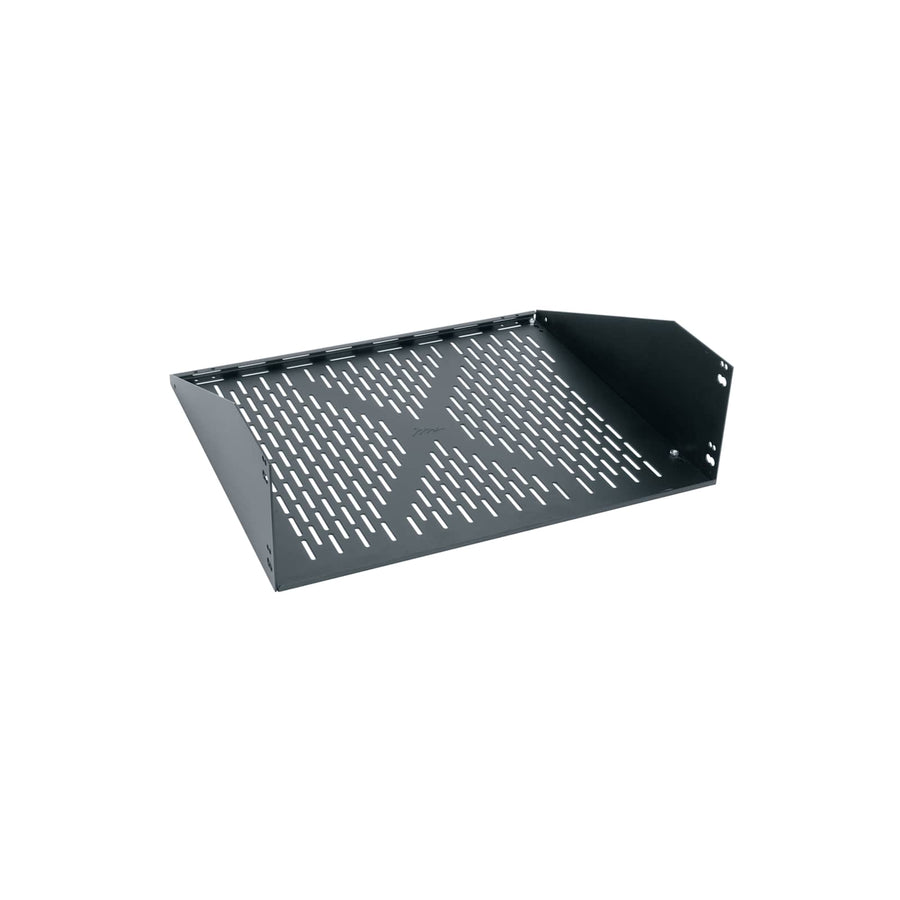

Wide Unit Shelf System, 14 Inches Deep
Wide unit shelf system for components up to 22-1/2” wide, 14 in (35.6 cm) depth, occupying 3 rackspaces
The WUSS14 is a Middle Atlantic Wide Unit Shelf System designed to accommodate oversized equipment that exceeds the 17-3/8” internal width of standard rackshelves. This 3-rackspace shelf provides a 14 in (35.6 cm) depth and is constructed from steel with a durable powder coat finish. It is engineered to bolt directly into millwork or onto the mounting angles of standard rackrail. Note that this shelf is compatible with all Middle Atlantic enclosures except those utilizing Z-Rail. For improved airflow around oversized components, the bottom panel is fully vented and the system is compatible with various Middle Atlantic component coolers, such as the COMP-COOL50.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 14 in (35.6 cm) |
| Height | 5.19 in (13.2 cm) |
| Shipping Weight | 8.77 lbs (4 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 17.56 in (44.6 cm) |
| Mounting Points | 2 |
| UPC | 656747034497 |
| Certifications | UL Listed |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
Will the WUSS14 fit my oversized equipment?
Yes, this system is specifically designed to hold components up to 22-1/2” wide, making it suitable for units that are too wide for standard 17-3/8” rack enclosures.
Can I use this with any Middle Atlantic enclosure?
The WUSS14 works with all Middle Atlantic Products enclosures, with the exception of those that use a Z-Rail mounting system.
How much weight can this shelf support?
The WUSS14 has a weight capacity of 50 lbs (22.7 kg), which is also its UL Load Capacity.
How do I mount this shelf in a custom build?
This shelf is designed to be bolted into millwork or directly into the mounting angles of standard rackrail.
What cooling accessories are compatible with this shelf?
You can install component coolers such as the COMP-COOL50, COMP-COOL-3, or the ICOMP-COOL series to assist with thermal management.
