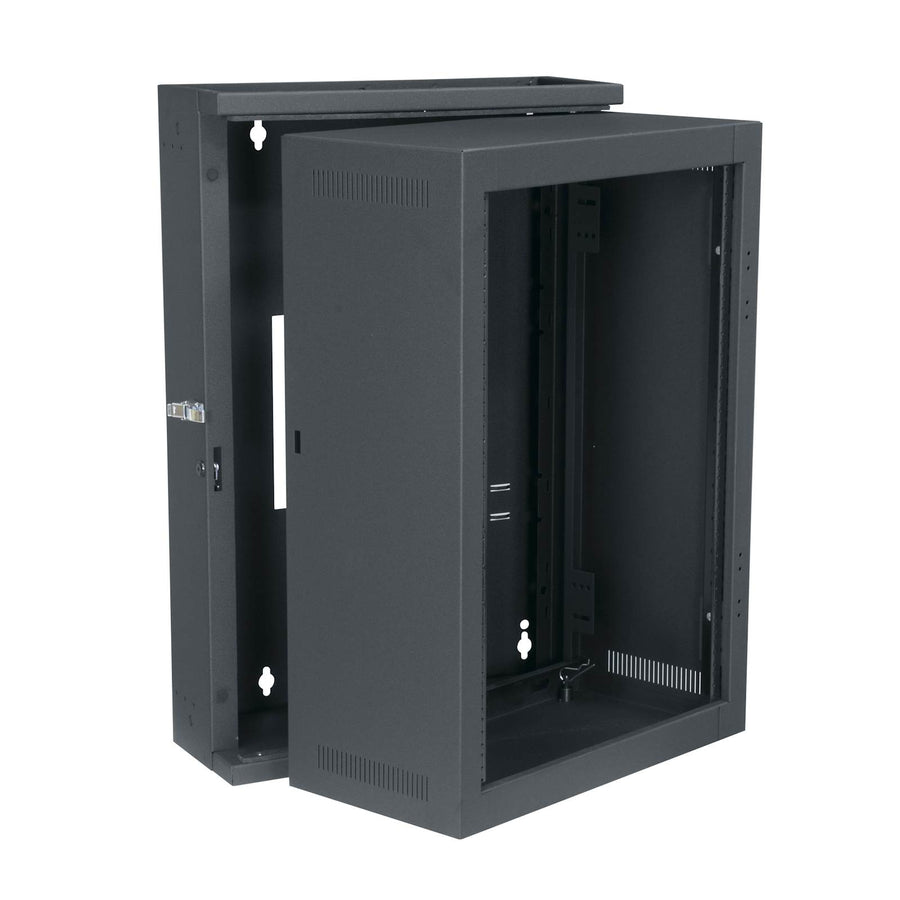

EWR Series Pivoting Wall Rack - EWR-16-22
16RU pivoting wall rack with 22" depth, 150 lbs UL load capacity, and reversible center section
The Middle Atlantic EWR-16-22 is a 16RU pivoting wall rack designed to provide an economical solution for smaller AV systems. This sectional wall cabinet features a fully welded construction for maximum strength and is suitable for both secured and unsecured installation environments. It is engineered with a center section that is reversible and can be secured with either a key or a padlock. To facilitate easier installation, the rack utilizes the patented Tool Free Quick-Mount™ system for mounting the center section. This 22 in (55.9 cm) deep unit offers a usable depth of 20 in (50.8 cm) and a usable height of 28 in (71.1 cm). The interior features standard adjustable 10-32 threaded rackrails and is optimized for passive thermal management. This TAA compliant rack is UL Listed in the US and Canada, supporting a UL load capacity of 150 lbs (68 kg). For added security, the center section can be keyed differently from any optional front door installed on the unit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 35 in (88.9 cm) |
| Product Weight | 82 lbs (37.2 kg) |
| Rack Units | 16 RU |
| Shipping Weight | 85 lbs (38.6 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 28 in (71.1 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | No |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057236 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
16 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR16$98.10
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
1 RU Fan Tray, 3 Fans, 207 CFM
FTA-3$556.20
100 CFM Fan Panel, 27dB, Anodized, Intake Secondary Only
UQFP-4RIS$642.60
Questions about this part
Will the EWR-16-22 fit my rackmount equipment?
The EWR-16-22 features standard 10-32 threaded rackrails and 16RU of space, making it compatible with standard 19-inch rackmount hardware. For specific rail requirements, this unit uses 10-32 type rails.
How much weight can the EWR-16-22 support?
This rack has a UL Listed load capacity of 150 lbs (68 kg). The physical product weight is 82 lbs (37.2 kg).
Can I secure the center section of this rack?
Yes, the center section is reversible and can be both key-locked or padlocked. If you install an optional front door, the center section can be keyed differently for enhanced security.
What is the usable depth for mounting components?
While the total depth is 22 in (55.9 cm), the usable depth for equipment mounting is 20 in (50.8 cm).
Does the EWR-16-22 meet TAA compliance requirements?
Yes, the EWR-16-22 is TAA compliant and is UL Listed in both the US and Canada.
