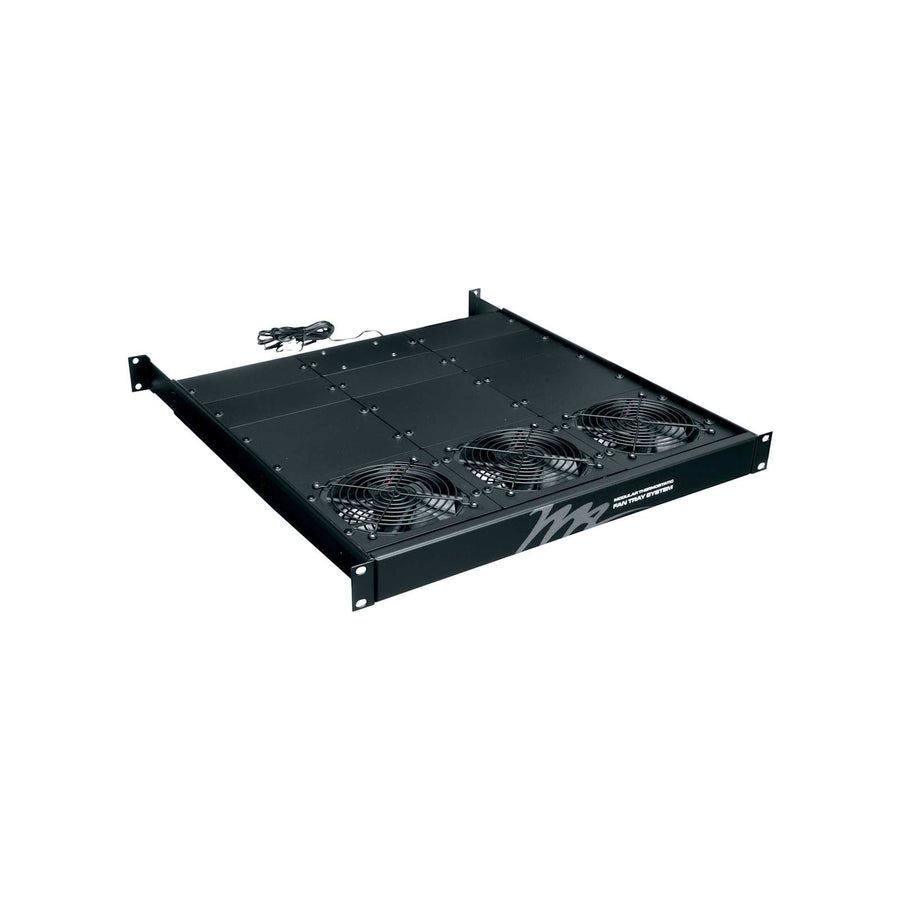

1 RU Fan Tray, 3 Fans, 207 CFM
1 RU active fan tray with three 4" DC fans providing 207 CFM to assist thermal management in racks
The Middle Atlantic FTA-3 is an active 1 RU fan tray system designed to improve thermal management by positioning airflow directly above hot equipment vents. This unit utilizes three 4" DC fans to deliver a total of 207 CFM of airflow, helping move hot air in the necessary direction for efficient rack cooling. The tray is built for versatility, featuring 8 fan mounting positions that allow installers to locate fans exactly where they are needed for specific equipment layouts. It includes a power supply and a thermostatic controller for energy-saving, automatic on/off operation. The FTA-3 occupies a single rackspace and offers an adjustable mounting range from 18" to 32" in depth. For larger thermal requirements, the system can be expanded with additional FT-FAN 4" DC fans to reach a total of 8 fans.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 207 |
| Depth | 18.1 in (46 cm) |
| Height | 1.75 in (4.4 cm) |
| Mounting Depth Max | 32 in (81.3 cm) |
| Mounting Depth Min | 18 in |
| Rack Units | 1 RU |
| Shipping Weight | 13.6 lbs (6.2 kg) |
All other specifications 8
| Volts DC | 12 VDC |
| Width | 19 in (48.3 cm) |
| Available Internationally | No |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Mounting Points | 4 |
| Power Type | DC |
| UPC | 656747130052 |
Resources
You'll need these with it
Questions about this part
Will the FTA-3 fit in my server rack?
The FTA-3 occupies 1 RU of rack space and is designed for 19" wide racks with a mounting depth between 18" and 32".
How many additional fans can I add to this tray?
This SKU comes with 3 fans installed, but you can add up to 5 additional FT-FAN 4" DC fans for a total of 8 fans.
Does this fan tray include the necessary power components?
Yes, the FTA-3 includes the required power supply and a thermostatic controller for automatic thermal management.
How does the thermostatic control work?
The integrated thermostatic controller provides energy-saving, automatic on/off operation based on the thermal needs of your equipment.
Which document should I use for technical submittals?
The FTA Series Fan Tray A&E Specification Sheet is available in the resources section for detailed technical submittals.
