DWR Series Pivoting Wall Rack - DWR-16-22PD

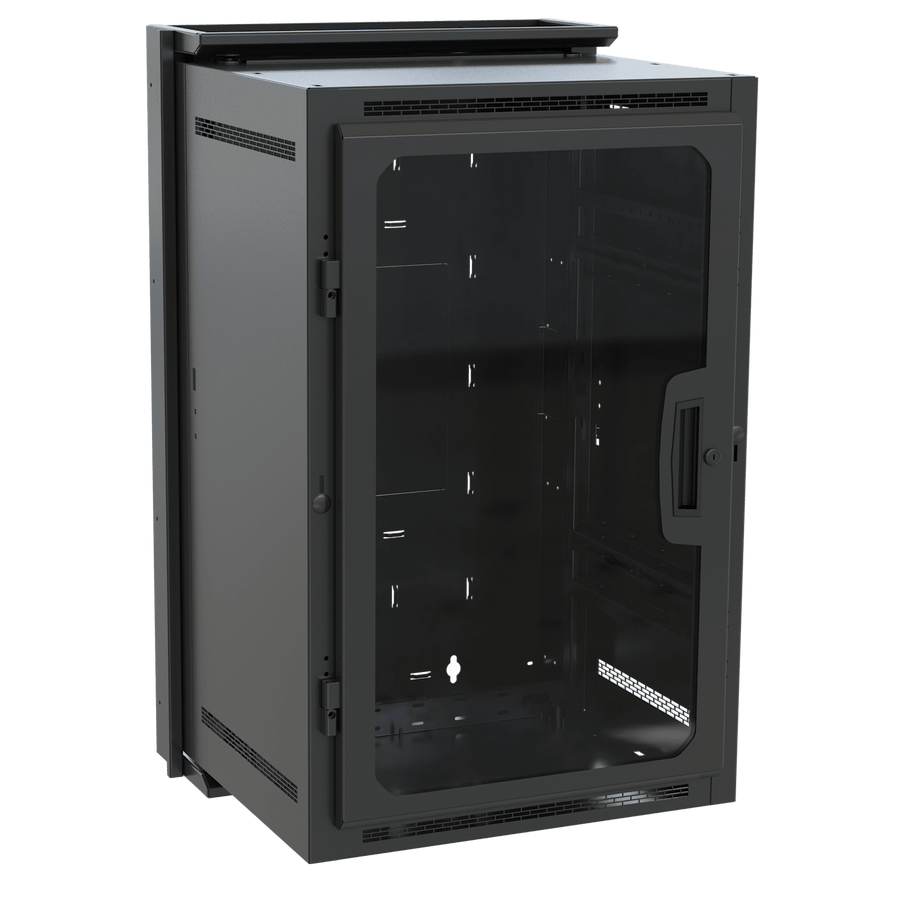

16RU pivoting wall rack with 22" depth, featuring a plexi door and TAA compliance
The Middle Atlantic DWR-16-22PD is a 16RU pivoting wall rack designed to provide efficient space management and easy serviceability in professional AV installations. This 22 in (55.9 cm) deep rack features a robust welded steel construction with a black wrinkle powder coat finish. It includes a factory-installed plexi front door to allow for visual inspection of equipment while maintaining a professional appearance. For installers prioritizing speed, the Tool-Free Quick-Mount™ system enables a one-person installation of the center section to the backpan on the jobsite. The center section is reversible and can be secured with either a key or a padlock, with the center section keyed differently than the front door for enhanced security. This rack is TAA compliant and seismic rated when used with the DWRSR-ZL latch, offering a seismic load capacity of 155 lbs (70.3 kg) and a UL load capacity of 200 lbs (90.7 kg). The center section rear channel is designed to accommodate optional PDT or PD Slim PDUs to optimize usable space.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 35.06 in (89.1 cm) |
| Product Weight | 87.5 lbs (39.7 kg) |
| Rack Units | 16 RU |
| Shipping Weight | 124 lbs (56.3 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 28 in (71.1 cm) |
All other specifications 16
| Width | 23.4 in (59.4 cm) |
| Available Internationally | Yes |
| Color | Black |
| Door Type | Plexi |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747005312 |
| Certifications | CSA StandardTAA |
| Patent Number | 7278183 |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
