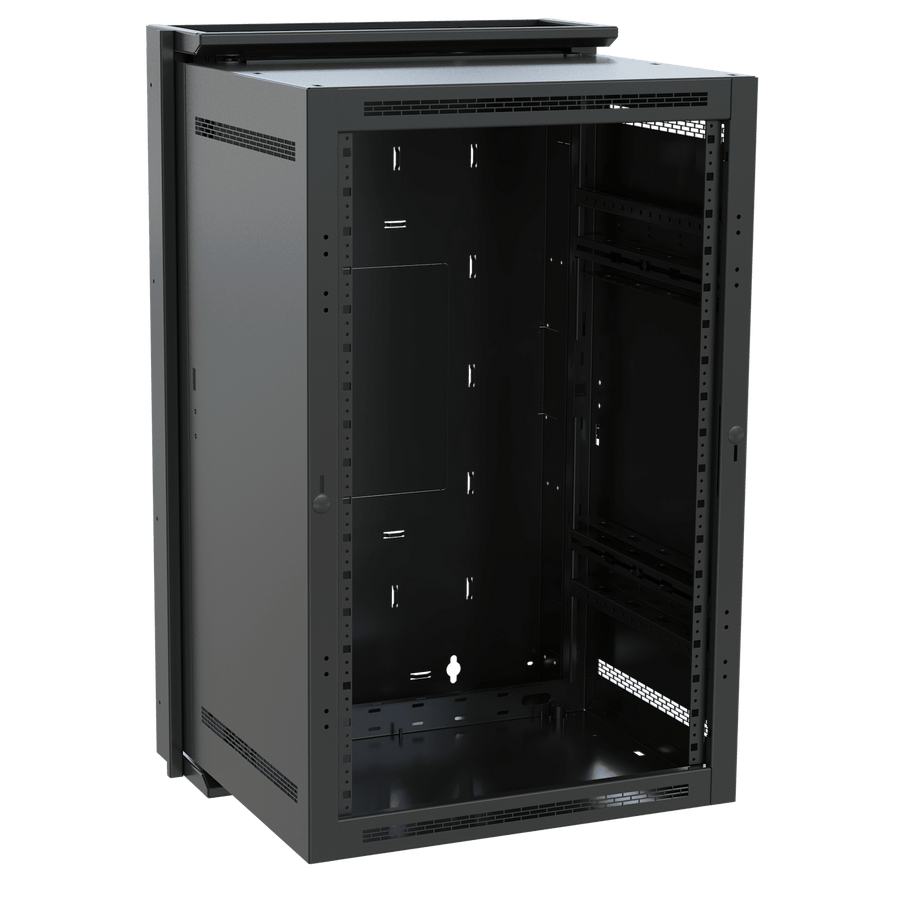

DWR Series Pivoting Wall Rack - DWR-16-22
16 RU pivoting wall rack, 22" depth, seismic rated, with TAA compliance and reversible center section
The Middle Atlantic DWR-16-22 is a 16 RU pivoting wall rack designed to provide easy access to equipment in tight spaces. Featuring a 22 in (55.9 cm) depth and 23.4 in (59.4 cm) width, this rack is constructed from robust welded steel with a black wrinkle powder coat finish. The center section features a reversible swing and can be configured to be either key-locked or padlocked for enhanced security. To improve installation efficiency, the unit utilizes a Tool-Free Quick-Mount™ system, allowing a single person to mount the center section to the backpan on-site. For advanced cable management, the center section rear channel is designed to accommodate optional PDT or PD Slim PDUs. This rack is TAA compliant, UL listed, and CSA certified. While it is seismic rated, the seismic load capacity is 155 lbs (70.3 kg) when used with the DWRSR-ZL latch.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 35.06 in (89.1 cm) |
| Product Weight | 65.3 lbs (29.6 kg) |
| Rack Units | 16 RU |
| Shipping Weight | 101.8 lbs (46.2 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 28 in (71.1 cm) |
All other specifications 15
| Width | 23.4 in (59.4 cm) |
| Available Internationally | Yes |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | No |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747005305 |
| Certifications | CSA StandardTAAUL Listed |
| Patent Number | 7278183 |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
Resources
You'll need these with it

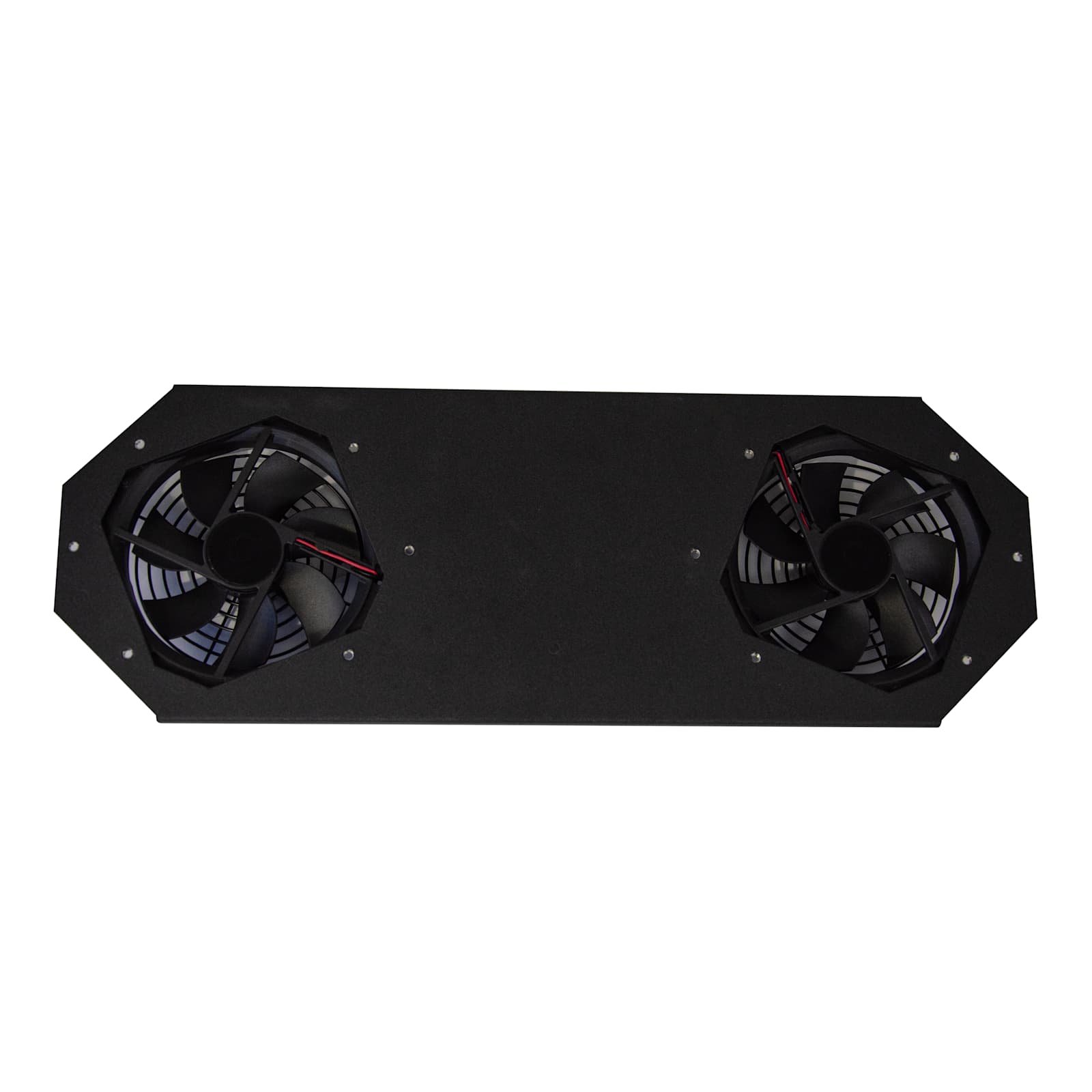

138 CFM Fan Kit for SR and DWR Racks
DWRSR-138FT-K-EU$342.90
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
190 CFM Fan Kit for DWR or SR Rack, 17 or 22 Inches Deep
DWRSR-4-FK$262.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
16 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR16$98.10
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
16 RU Vented Front Door for DWR, SWR and EWR Racks, 64% Open
LVFD-16$473.40
PD Slim High Density Vertical Power Strip, 7 Outlet, 15A
PD-715SC-NS$210.60
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-620C-SP$766.80

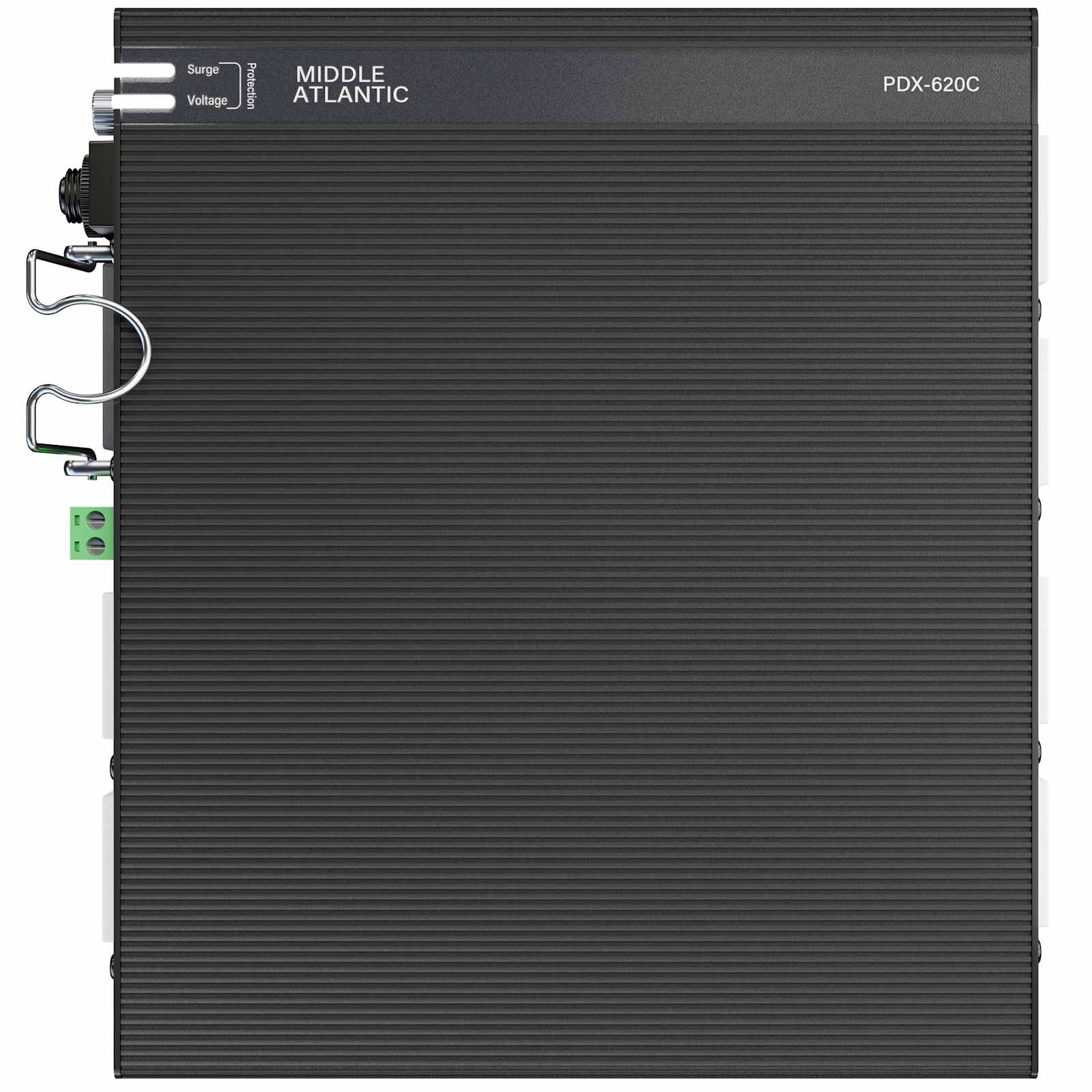

NEXSYS™ 6 Outlet, 20 Amp Compact Power with Multi-Stage Surge Protection
PDX-620C$443.70
Questions about this part
Will the DWR-16-22 fit my equipment depth?
This rack has a 22 in (55.9 cm) total depth with a 20 in (50.8 cm) usable depth for your hardware.
What is the seismic rating for the DWR-16-22?
It is seismic rated with a seismic load capacity of 155 lbs (70.3 kg) provided it is used with the DWRSR-ZL latch.
Can I add a door to this rack?
Yes, you can install a 16 RU Vented Front Door, such as the LVFD-16, which offers 64% open area.
What power accessories are compatible with this rack?
The center section rear channel accommodates PD Slim High Density Vertical Power Strips like the PD-815SC-NS or PD-715SC-NS.
What is the difference between the UL and seismic load capacities?
The UL Load Capacity is 200 lbs (90.7 kg), while the Seismic Load Capacity is 155 lbs (70.3 kg).
