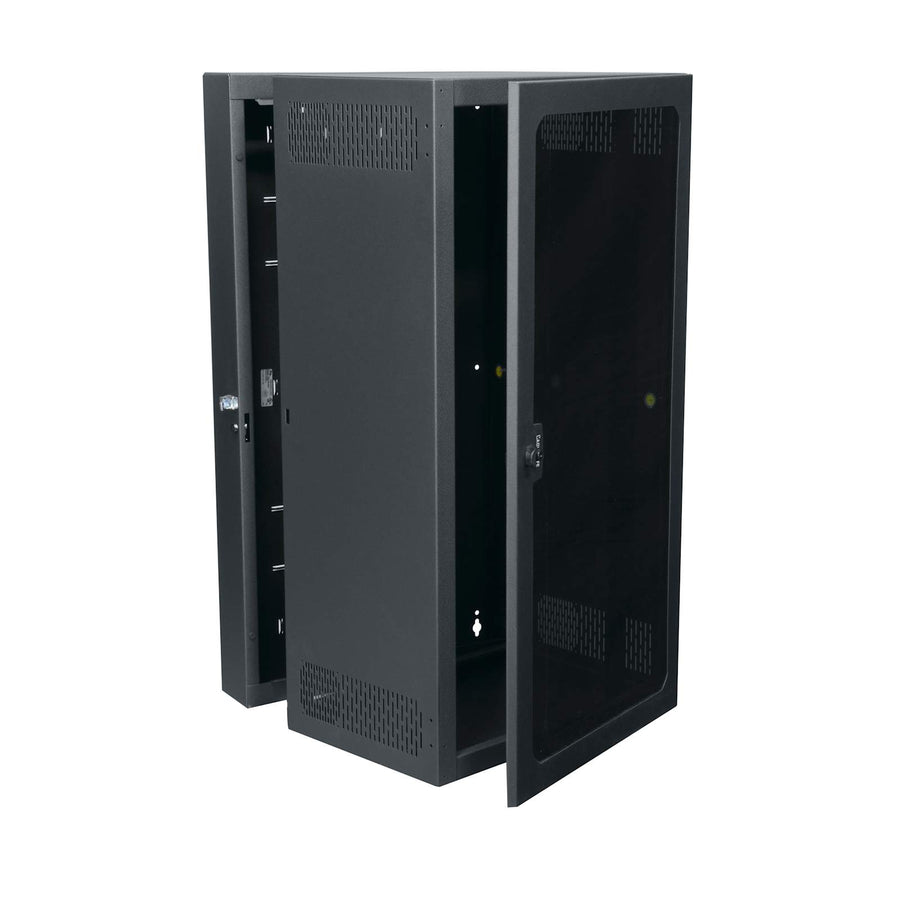

CWR Series Data Swing Wall Rack CWR-26-22PD
26 RU data swing wall rack with 22 in depth, plexiglass door, and 200 lbs UL load capacity
The Middle Atlantic CWR-26-22PD is a specialized swing wall rack engineered for structured cabling applications. This 26 RU system provides a versatile solution for mounting multiple patch panels and voice/data equipment in environments where floor or wall space is at a premium. The rack features a locking swing-open center section that facilitates both front and rear access to equipment. The 26 in wide frame offers extra space to manage cables and patching, while the included plexiglass front door can be reversed to allow for either left or right-hand swing based on your installation requirements. Built with welded steel construction, this rack is TAA compliant and UL Listed. For thermal management, the unit is engineered for passive airflow, though the CWR-FKIT fan kit is available for active cooling requirements. This model uses 12-24 threaded rackrails and includes a bag of 50 mounting screws for installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 49.38 in (125.4 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 124 lbs (56.3 kg) |
| Rack Units | 26 RU |
| Shipping Weight | 152 lbs (69 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 20 in (50.8 cm) |
All other specifications 11
| Usable Height | 45.5 in (115.6 cm) |
| Width | 26 in (66 cm) |
| Available Internationally | Yes |
| Door Type | Plexi Door |
| Federal Ops Country of Origin | Mexico |
| Material | Steel |
| Rack Rail Type | 12-24 |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747113154 |
| Certifications | CSA StandardGREENGUARDTAAUL Listed |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
95 CFM Fan Kit for CWR Series Rack
CWR-FKIT$286.20
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
Multi-Mount PDU, 18 Outlet, 20A & 2-Stage Surge
PD-1820R-RN$432.00
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
PDT-1015C-M-NS$385.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
Filter Kit for CWR and VWM Series
FILTER-R-4-2K$154.56
12-24 Rackscrew - 500 Piece
HP24-500$214.20
12-24 Rackscrew - 100 Piece
HP-24$46.80
Questions about this part
What is the access method for the CWR-26-22PD?
The rack features a locking swing-open center section, which allows installers to access both the front and rear of the equipment.
Does the CWR-26-22PD support active cooling?
The rack is engineered for passive thermal management, but you can add a CWR-FKIT 95 CFM fan kit to provide active cooling.
What is the maximum weight capacity for this rack?
This rack is UL Listed with a load capacity of 200 lbs (90.7 kg).
What accessories are compatible with the CWR series?
You can integrate various components such as PDT Low Profile Vertical Power Strips (like the PDT-1620C-NS) or a Select Series UPS Backup Power (UPS-S500R).
Can the front door be adjusted for specific room layouts?
Yes, the plexiglass front door can be easily reversed to accommodate either a left or right-hand swing.
