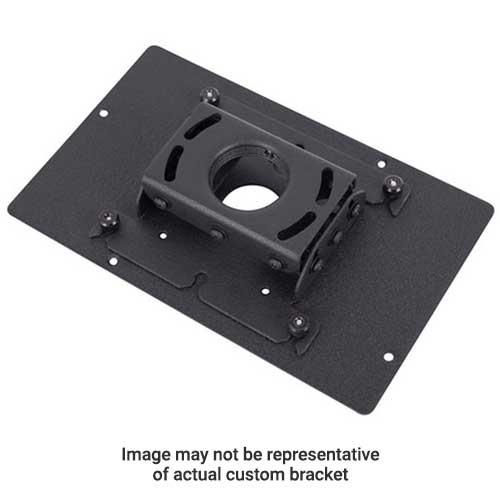

Custom RPA Projector Mount-RPA318
Custom ceiling projector mount providing independent roll, pitch, and yaw adjustments and a 50 lbs capacity
The Chief RPA318 is a custom-configured projector mount designed to facilitate rapid and accurate installation for specific professional projection systems. Because this is a custom RPA solution, it ships with a specialized interface bracket engineered specifically to fit your designated projector model, ensuring a secure and precise connection. This mount provides independent roll, pitch, and yaw adjustments, allowing for highly accurate image registration during the setup process. When configured for a flush mount to a ceiling, the system offers up to 12° of adjustment. Integrated cable management runs through the top of the mount to keep installations clean without needing separate accessories. To protect against theft in public spaces, the All-Points™ Security System utilizes exclusive steel-into-steel locking hardware at every connection point. This mount is TAA compliant and UL Listed, making it suitable for sensitive government or commercial projects. It supports a weight capacity of 50 lbs (22.7 kg) and offers multiple ceiling installation options, including flush mount, 0.25" threaded rod, or a 1.5" NPT threaded extension column.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 6.07 lbs (2.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | 12° on flush mount |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872160955 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPA318 fit my specific projector model?
This is a custom mount that ships with a specific interface bracket for your projector. It is verified for use with models like the EIKI LC-XNS2600, Panasonic PT-LMW460, and Ask Proxima C3307A.
What are the adjustment capabilities of this mount?
The RPA318 features independent roll, pitch, and yaw adjustments. For flush mount ceiling installations, it provides up to 12° of adjustment to assist with precise image registration.
How do I adjust my projector after it is mounted?
The design allows for quick projector connection and disconnection, providing convenient access to the lamp and filter on most projectors while maintaining your preset registration adjustments.
Does this mount include cable management?
Yes, the RPA318 features integrated cable management through the top of the mount, which allows for a clean installation without the need to purchase additional accessories.
What are the installation options for ceiling mounting?
The RPA318 supports multiple configurations including a flush mount to the ceiling, use of a 0.25" threaded rod, or a 1.5" NPT threaded extension column.
