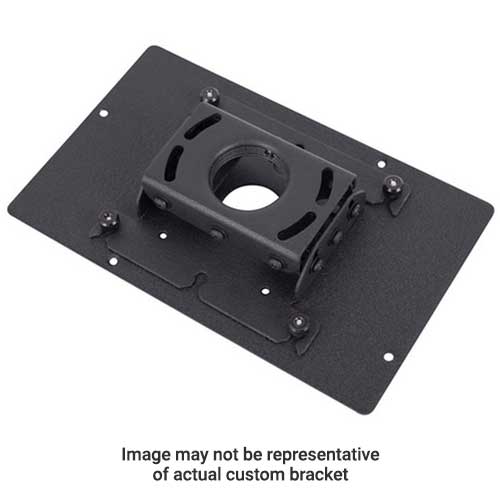

Custom RPA Projector Mount-RPA317
Custom ceiling projector mount with independent roll, pitch, and yaw for precise image registration
The Chief RPA317 is a custom-engineered projector mount designed to provide a rapid and easy installation for specific hardware. This unit ships with a custom interface bracket specifically tailored to fit your projector model, ensuring a precise fit for the intended device. For the installer, the RPA317 features independent roll, pitch, and yaw adjustments, allowing for quick and precise projector image registration. When used in a flush mount configuration, the unit offers 12° of adjustment. This mount is designed for ceiling applications and includes integrated cable management through the top of the mount, eliminating the need for additional accessories. For security, the All-Points™ Security System utilizes steel-to-steel locking hardware at all connection points to protect the installation against theft. The design allows for quick projector connection and disconnection, providing convenient access to lamps and filters on most projectors without losing preset adjustments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 18.25" x 18.25" x 4.25"(463.6 x 463.6 x 108 mm) |
| Shipping Weight | 6.05 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | 12° on flush mount |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872159850 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPA317 fit my specific projector model?
This is a custom mount that ships with an interface bracket designed for your specific hardware. For example, this SKU is verified to fit Panasonic models such as the PT-DW830E, PT-DW830EK, PT-DW830K, and PT-DW830U.
How much adjustment does the RPA317 offer for image alignment?
The mount features independent roll, pitch, and yaw for precise registration. In a flush mount installation, you can achieve up to 12° of adjustment.
What mounting options are available for ceiling installations?
The RPA317 supports multiple installation methods, including flush mounting to a ceiling, using 0.25" threaded rods, or utilizing a 1.5" NPT threaded extension column.
Can I maintain my projector alignment while performing maintenance?
Yes. The mount is designed to maintain registration when the projector is disconnected, allowing for easy access to the lamp and filter without needing to reset adjustments.
Does this mount require additional accessories for cable management?
No. The RPA317 features integrated cable management through the top of the mount, so you do not need to purchase extra components for cable routing.
