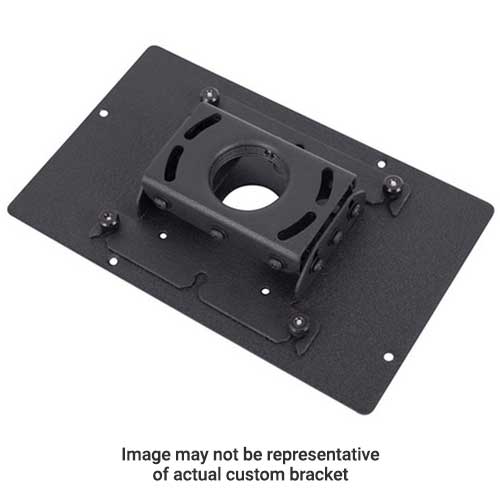

Custom RPA Projector Mount (Black)-RPA351
Custom ceiling projector mount with independent roll, pitch, and yaw adjustment for precise registration
The RPA351 is a custom-ordered ceiling mount designed to facilitate a quick and efficient installation for specific projector models. To ensure this solution meets your requirements, you must verify compatibility with your equipment via the manufacturer's compatibility data. This mount offers independent roll, pitch, and yaw adjustments, allowing for precise projector registration during the setup process. Once adjusted, the mount maintains registration and does not affect preset adjustments, and it features a quick connect/disconnect mechanism for easy access to projector lamps and filters. Security is addressed through All-Points Security steel-into-steel locking hardware at all key connection points to help protect against theft. For installation, this unit offers multiple options including a flush mount to the ceiling, mounting with 0.25" threaded rods, or utilizing a 1.5" NPT threaded extension column. Integrated cable management is provided without the need for additional accessories. This TAA compliant, UL listed black mount has a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Product Weight | 5 lbs (2.3 kg) |
| Shipping Dimensions | 13.25" x 13.25" x 3.5"(336.6 x 336.6 x 88.9 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872169477 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
CMS048W, 48 Inch Fixed Extension Column, Pole
CMS048W$80.00
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
Verified fitment
Questions about this part
Will the RPA351 fit my specific projector model?
This is a custom mount. It is verified against 36 device models from 1 manufacturer, including Epson EB-L1405, EB-L1405U, EB-L1405UNL, and EB-L1490U. Always check the compatibility tab for your specific device.
How do I access the projector lamp or filter?
The mount features a quick connect/disconnect mechanism. This allows for convenient access to the lamp and filter on most projectors without losing your registration settings.
What are the installation options for this ceiling mount?
You can install this unit as a flush mount to the ceiling, mount it using 0.25" threaded rods, or use a 1.5" NPT threaded extension column.
What is the maximum weight capacity for the RPA351?
The RPA351 has a weight capacity of 50 lbs (22.7 kg).
Does this mount include cable management?
Yes, this mount includes cable management features directly in the design, so you do not need to purchase additional accessories for cable routing.
