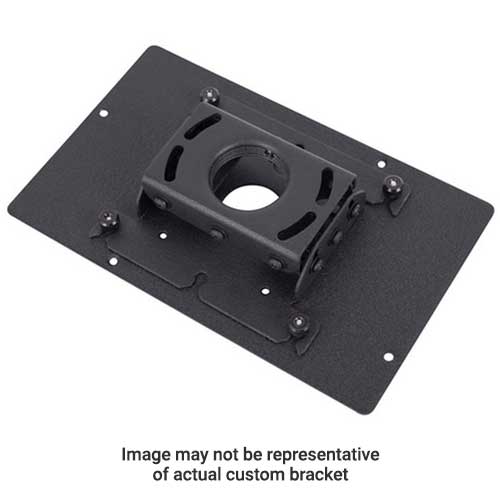

Custom RPA Projector Mount (Black)-RPA349
Custom black ceiling projector mount with independent roll, pitch, and yaw adjustment and a 50 lbs capacity
The Chief RPA349 is a custom-engineered ceiling projector mount designed to provide a precise, secure installation for specific projector models. This black-finish mount features independent roll, pitch, and yaw adjustments, allowing installers to achieve accurate projector registration quickly. To maintain this alignment during maintenance, the mount includes a quick connect/disconnect mechanism for easy access to lamps and filters on most projectors; this feature ensures that preset adjustments are not disturbed when the unit is disconnected. For security, the RPA349 utilizes All-Points Security exclusive steel-into-steel locking hardware at all key connection points to protect against theft. This ceiling-application mount offers versatile installation methods, including flush mounting to the ceiling, mounting via 0.25" threaded rods, or utilizing a 1.5" NPT threaded extension column. It also includes integrated cable management to maintain a clean installation without the need for additional accessories. This TAA compliant and UL Listed solution supports a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Product Weight | 5 lbs (2.3 kg) |
| Shipping Weight | 4.13 lbs (1.9 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872168401 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPA349 fit my projector?
This is a custom mount. It is verified to work with Panasonic models including the PT-EW550, PT-EW550U, PT-EW650, and PT-EW650U.
How do I adjust the projector once it is mounted?
The mount features independent roll, pitch, and yaw adjustability to allow for quick and precise registration during installation.
Does this mount require extra parts for cable management?
No, the RPA349 includes integrated cable management, so you do not need to purchase additional accessories for cable organization.
What mounting options are available for ceiling installation?
You can install this mount flush to the ceiling, use 0.25" threaded rods, or use a 1.5" NPT threaded extension column.
What documentation is available for submittals?
Technical drawings (PDF), CAD drawings (dwg), and installation manuals (PDF) are available in the Resources tab for your project submittals.
