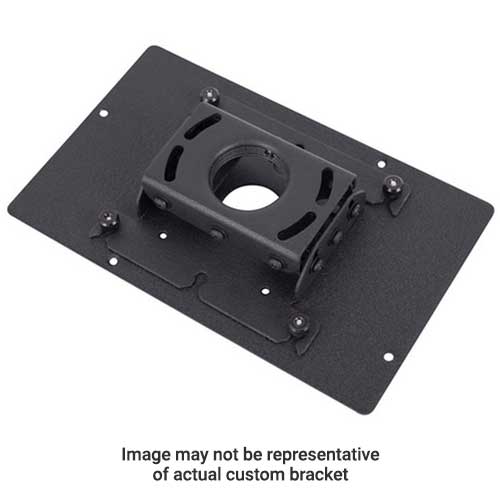

Custom RPA Projector Mount (Black)-RPA346
Custom black ceiling mount for projectors, featuring independent roll, pitch, and yaw adjustments and a 50 lbs capacity
The Chief RPA346 is a custom-engineered RPA series projector mount designed for ceiling applications. This black-finished mount provides a tailored solution for specific projector hardware, allowing for precise installation and alignment. To facilitate rapid projector registration, the mount features independent roll, pitch, and yaw adjustments. For maintenance, it utilizes a quick connect/disconnect mechanism that provides convenient access to lamps and filters on most projectors; this feature allows the installer to perform service without losing the preset adjustments or the current registration. Security is managed through All-Points Security exclusive steel-into-steel locking hardware at all key connection points. Installation versatility is high, as this unit can be used as a flush mount to the ceiling, mounted with 0.25" threaded rods, or utilized with a 1.5" NPT threaded extension column. Integrated cable management is built into the design, eliminating the need for additional accessories. This TAA-compliant and UL Listed mount supports a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Product Weight | 5 lbs (2.3 kg) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872168050 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPA346 fit my EIKI projector?
This custom mount is verified for EIKI models EK-500U, EK-500UL, EK-501W, and EK-501WL.
What are the installation options for this ceiling mount?
You can install this as a flush mount to the ceiling, with 0.25" threaded rods, or using a 1.5" NPT threaded extension column.
How does the quick connect feature work for projector maintenance?
The quick connect/disconnect mechanism provides access to lamps and filters without affecting your preset adjustments or losing registration.
What accessories are required for specialized mounting?
Depending on your environment, you may need accessories like the CMA151 1.5 Inch to 1 Inch NPT Adapter or the CMA360 I-Beam Clamp.
Is the RPA346 secure against theft?
Yes, it features All-Points Security exclusive steel-into-steel locking hardware at all key connection points.
