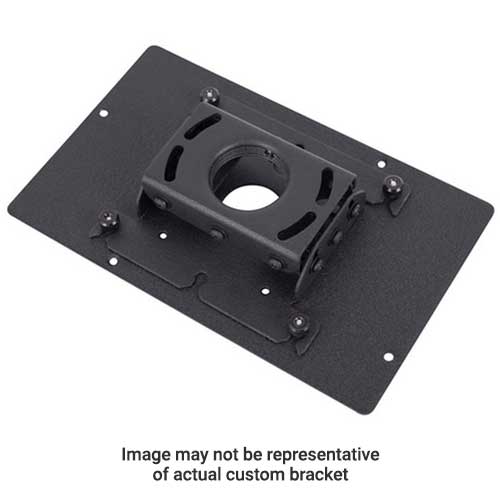

Custom RPA Projector Mount (Black)-RPA281
Custom ceiling mount for projectors, featuring independent roll, pitch, and yaw adjustment and a 50 lbs capacity
The Chief RPA281 is a custom-configured RPA projector mount designed to facilitate quick and precise installation for specific projector models. This black ceiling mount provides independent roll, pitch, and yaw adjustments, allowing installers to achieve exact projector registration. Once adjustments are set, the mount maintains that registration when disconnected, ensuring that preset alignments are not lost during maintenance. A quick-connect/disconnect feature provides convenient access to lamps and filters on most projector models. For high-security environments, the RPA281 utilizes All-Points Security steel-into-steel locking hardware at all key connection points to deter theft. This TAA compliant and UL Listed mounting solution supports multiple installation methods, including flush mounting to a ceiling, installation using 0.25" threaded rods, or utilizing a 1.5" NPT threaded extension column. Integrated cable management is built into the design to keep installations clean without requiring additional accessories.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 18.25" x 18" x 4.5"(463.6 x 457.2 x 114.3 mm) |
| Shipping Weight | 7.2 lbs (3.3 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872150161 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPA281 fit my projector?
This is a custom-configured mount. It is verified compatible with 163 display models from 3 manufacturers, including JVC models DLA-F110 and DLA-N7B, DREAMVISION ESO Light+, and BENQ HT8050.
What is the weight capacity of the RPA281?
The RPA281 has a weight capacity of 50 lbs (22.7 kg).
How can I adjust the projector once it is mounted?
The mount features independent roll, pitch, and yaw adjustability to allow for precise alignment during setup.
What mounting options are available for ceiling installation?
You can install this unit as a flush mount to the ceiling, using 0.25" threaded rods, or with a 1.5" NPT threaded extension column.
What additional accessories are needed for cable management?
The RPA281 features integrated cable management, so no additional accessories are required to manage cables.
