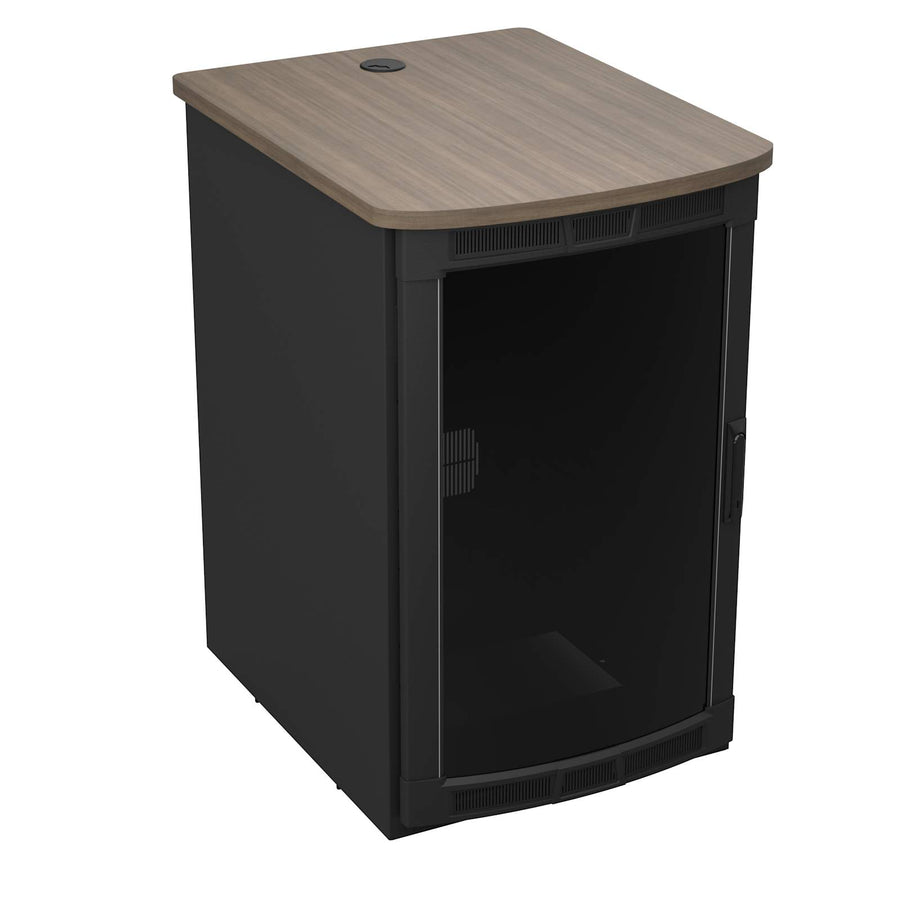

BGR-25SA27MDK-C8 Rolling Presentation Rack with Studio Teak Top
Rolling 25 RU mobile AV rack featuring a Studio Teak HPL monitor top and Forward Rackrail system
The BGR-25SA27MDK-C8 is a 25 RU mobile AV rack designed to blend furniture-grade aesthetics with professional-grade durability. This rolling enclosure features a Studio Teak high-pressure laminate (HPL) top, providing a surface suitable for monitor mounting in high-end environments. Built from steel with a black wrinkle powder coat finish, the rack is TAA compliant and UL listed for professional installations. It includes a curved plexi front door and a rear door with cable entry for simplified serviceability. The system utilizes the Forward Rackrail design, which provides side lacing for flexible internal cabling and compatibility with Forward vertical cable management products. With a 23" width, the unit creates additional space for front-to-back cable management or mounting small devices via Lever Lock™ accessories. This mobile solution includes a skirted wheelbase and leveling feet, ensuring stability during transport and placement in any venue.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 189 lbs (85.7 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 207 lbs (93.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Studio Teak |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402692 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented - 4 Piece
U2V-4$358.20

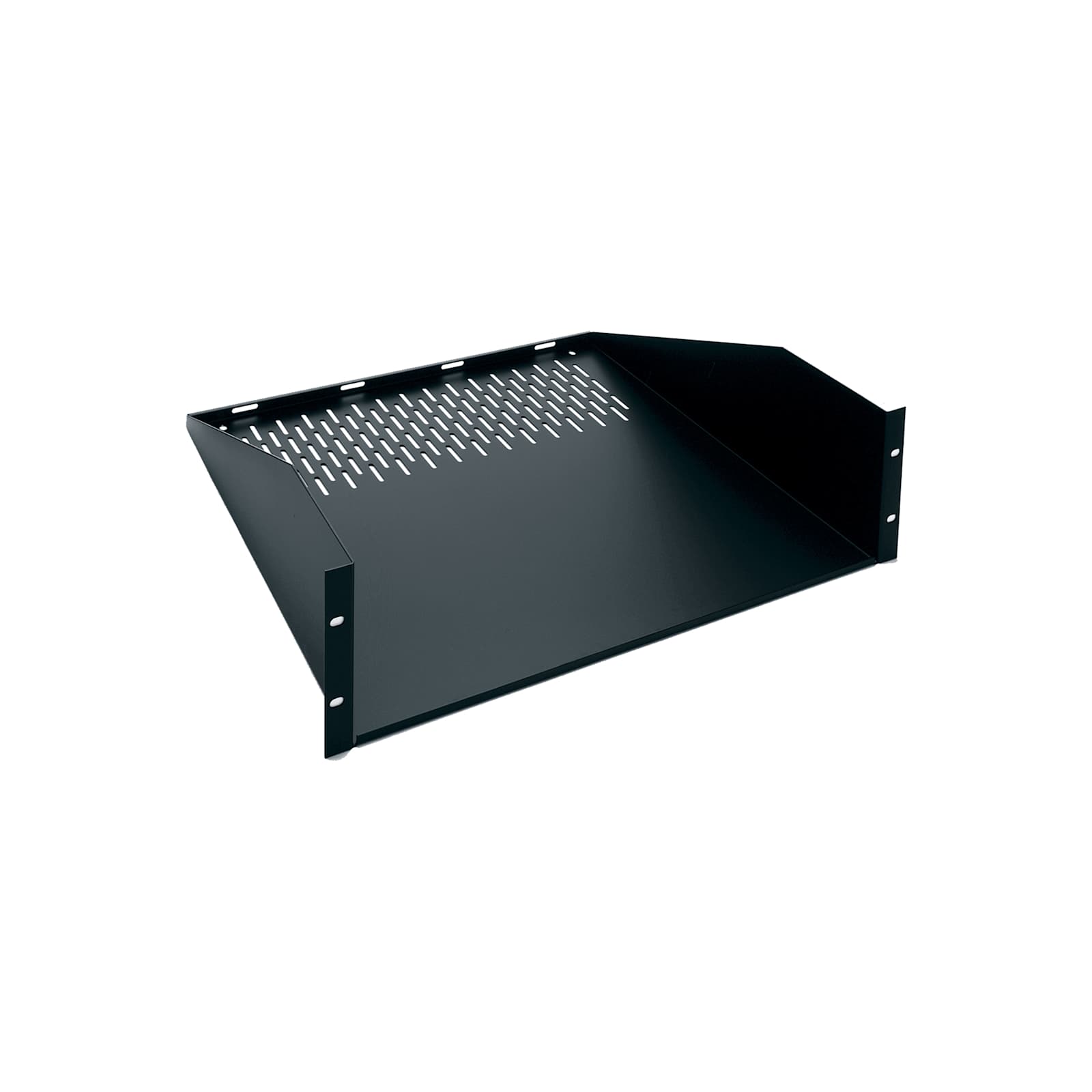

3 RU Utility Rackshelf, 17.75 Inches Deep, Vented
U317$124.20

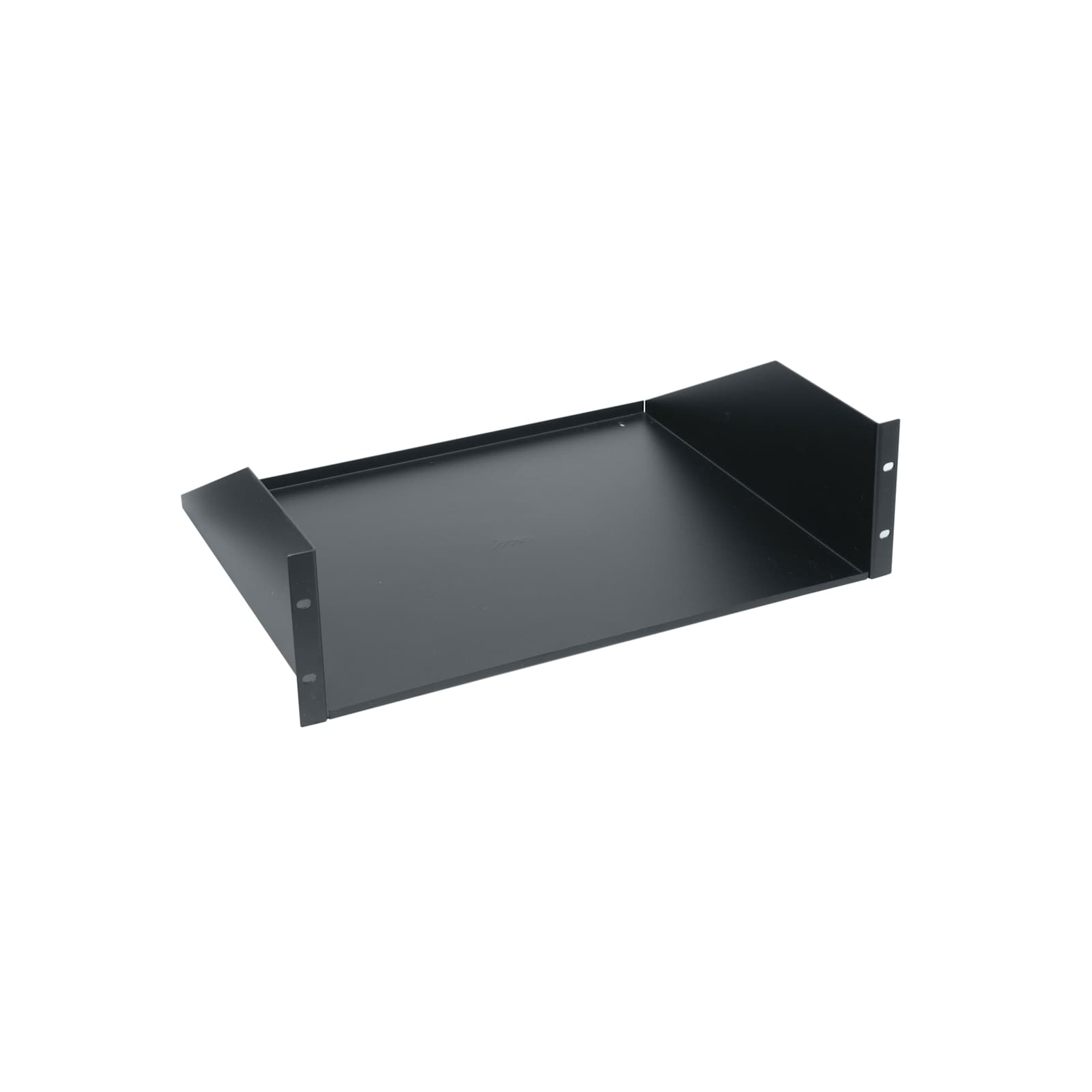

3 RU Utility Rackshelf, 14.55 Inches Deep
U3$108.90
3 RU Clamping Rackshelf Knockdown
RC-3$124.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Questions about this part
Will this rack accommodate my video monitors?
Yes, the BGR-25SA27MDK-C8 is designed with a monitor mounting top featuring a Studio Teak HPL finish.
What is the total weight capacity for this rack?
This unit has a UL Load Capacity of 1100 lbs (499 kg), making it suitable for heavy AV equipment.
What accessories are needed for cable management?
You can use Forward blank panels, vent panels, or Forward vertical cable management products with the integrated Forward Rackrail system.
Does this rack meet government procurement requirements?
Yes, the BGR-25SA27MDK-C8 is TAA compliant and is manufactured in the USA.
What is the difference between the usable and total depth?
The total product depth is 31.35 in (79.6 cm), while the usable depth for equipment is 24.4 in (62 cm).
