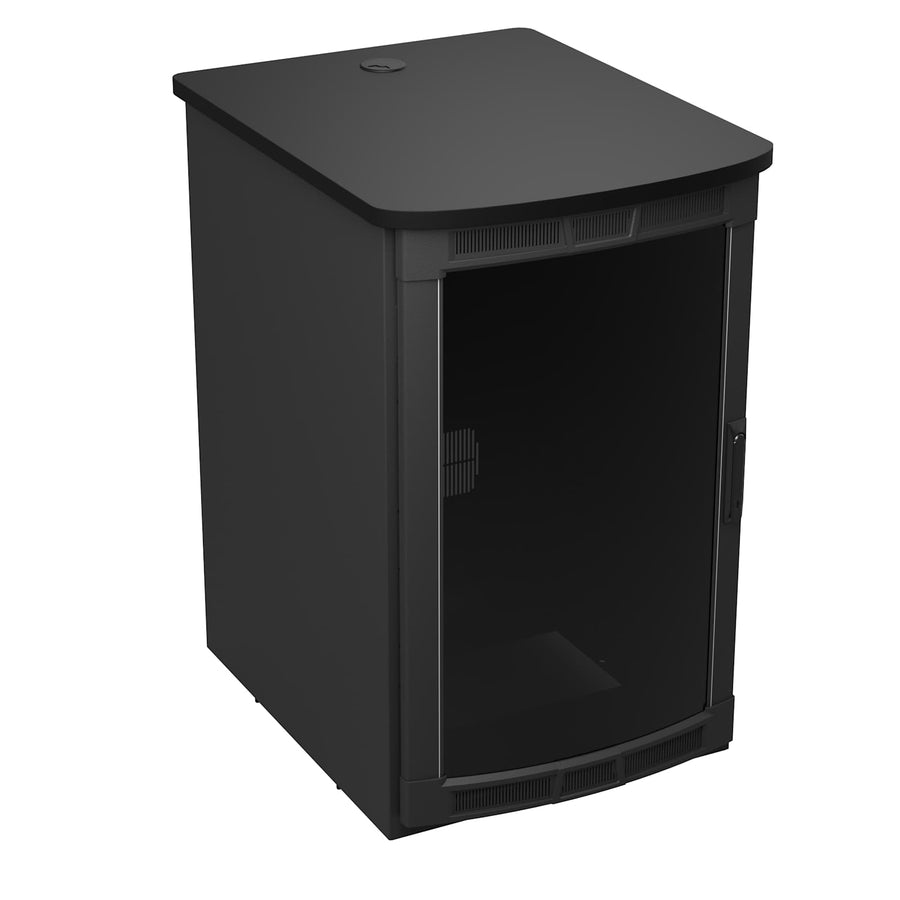

BGR-25SA27MDK-A5 Rolling Presentation Rack with Black Top
25 RU mobile AV rack with black wood laminate top, 1100 lbs UL load capacity, and steel construction
The BGR-25SA27MDK-A5 is a 25 RU mobile AV rack from the Middle Atlantic BGR-MDK Series, designed to combine professional-grade protection with furniture-style aesthetics. This rolling steel enclosure features a black high-pressure laminate (HPL) wood top that is capable of accommodating video monitors. The unit is built with a steel construction and finished in a black wrinkle powder coat, providing a robust solution for mobile presentations. It includes a skirted wheelbase with leveling feet and integrated swing handles (25mm x 150mm). The enclosure is equipped with a curved plexi front door and a rear door designed for cable entry. This specific SKU is TAA compliant and UL listed. It utilizes the Forward Rackrail system, which is forward compatible with Forward blank panels, vent panels, and both horizontal and vertical cable management products. The 23" width provides additional side lacing room for front-to-back cable management or mounting small devices using Lever Lock™ hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 189 lbs (85.7 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 207 lbs (93.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402630 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
FTA Series 4 Inch DC Fan
FT-FAN$90.00
Multi-Mount PDU, 20 Outlet & 20A
PD-2020R-NS$378.00
19 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR19$152.10
1 RU Flanged Blank Rack Panel, Textured - 12 Piece Contractor Pack
SB1-CP12$243.00
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Questions about this part
Does the BGR-25SA27MDK-A5 support monitor mounting?
Yes, the BGR-25SA27MDK-A5 features a black wood laminate top specifically designed to accommodate video monitors for presentations.
What is the weight capacity of this mobile rack?
This rack has a UL load capacity of 1100 lbs (499 kg), making it capable of supporting heavy AV equipment during transport.
What accessories are needed for cable management with this rack?
This rack is compatible with the Forward series, including Forward vent panels (such as VTP-1, VTP-2, or VTP-3) and Forward vertical cable management products.
What is the difference between this and the 19 RU version?
While this SKU is the 25 RU version, the series also offers a 19 RU option for applications requiring less vertical space.
Which documents are available for submittals?
Installers can access the BGR-MDK Series A&E Specification Sheet, CAD Technical Specification Drawings, or Revit Models for project submittals.
