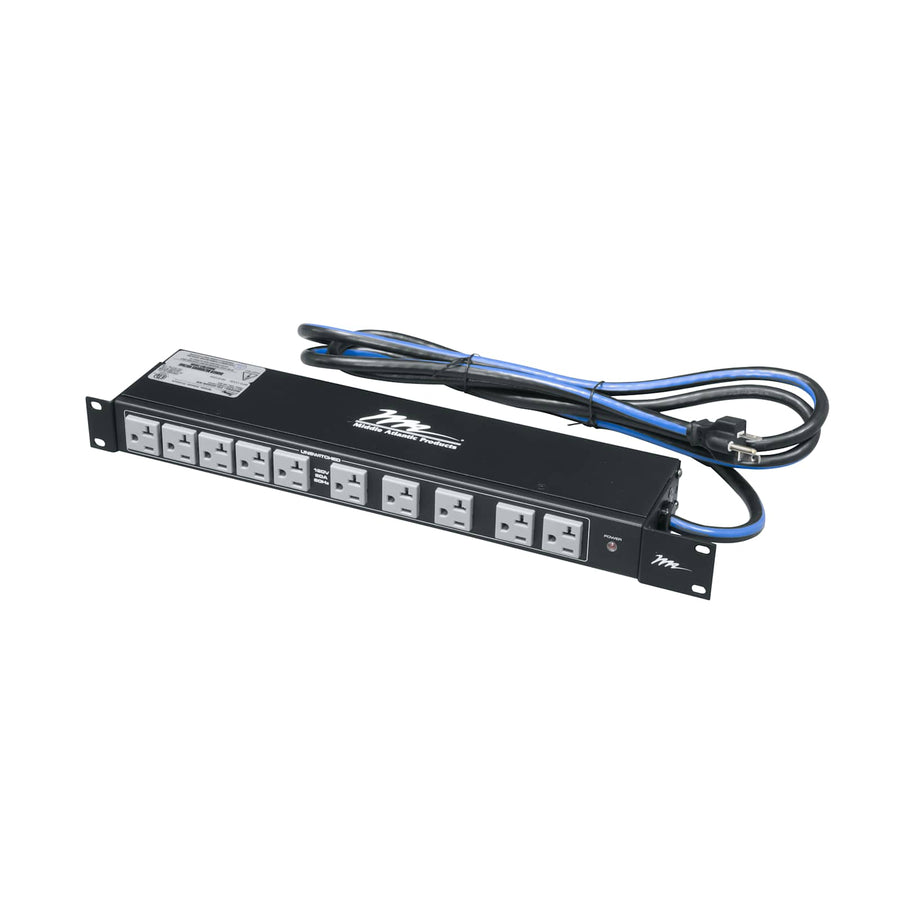

Multi-Mount PDU, 20 Outlet & 20A
20-outlet Multi-Mount PDU with 20A capacity, 1 RU height, and SignalSAFE power cord for flexible orientation
The Middle Atlantic PD-2020R-NS is a versatile 1 RU Multi-Mount PDU designed to provide power access exactly where it is needed within a rack. This 20-outlet unit operates on 120 VAC and features a 20 Amp capacity. The chassis is built with a shallow depth of 4.37 in (11.1 cm) to conserve valuable rack space for other critical equipment. A key feature of this model is the included 9 ft (2.7 m) SignalSAFE power cord, which is engineered to minimize potential interference from AC magnetic fields generated by other equipment in the rack. The unit is ETL Listed and features a 5-20P plug type. Because it is part of the Multi-Mount series, the reversible and adjustable mounting ears allow for significant installation flexibility; this unit can be mounted horizontally or vertically to accommodate complex rack layouts. The 19 in (48.3 cm) wide chassis includes 20 outlets with varied orientations to ensure compatibility with many different plug styles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 4.37 in (11.1 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 6.9 lbs (3.1 kg) |
| Volts AC | 120 VAC |
| Width | 19 in (48.3 cm) |
All other specifications 10
| Cable Type | Corded |
| Mounting Points | 2 |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 20 |
| Plug Type | 5-20P |
| Power Switch | No |
| TAA Compliant | No |
| UPC | 656747126581 |
| Certifications | ETL Listed |
Resources
Questions about this part
Can the PD-2020R-NS be mounted vertically?
Yes. The Multi-Mount series features reversible and adjustable mounting ears that allow the PDU to be installed either horizontally or vertically to suit your specific rack configuration.
What is the plug type for the PD-2020R-NS power cord?
This PDU features a 5-20P plug type and includes a 9 ft (2.7 m) SignalSAFE power cord designed to reduce interference from AC magnetic fields.
How many outlets does this PDU have and what is the amperage?
The PD-2020R-NS provides 20 outlets and supports a 20 Amp, 120 VAC circuit.
Does the PD-2020R-NS include a power switch?
No, this specific SKU is a corded, non-switched power distribution unit.
How much rack space does this unit occupy?
This is a 1 RU unit with a 4.37 in (11.1 cm) depth, designed to save space for other equipment in the rack.
