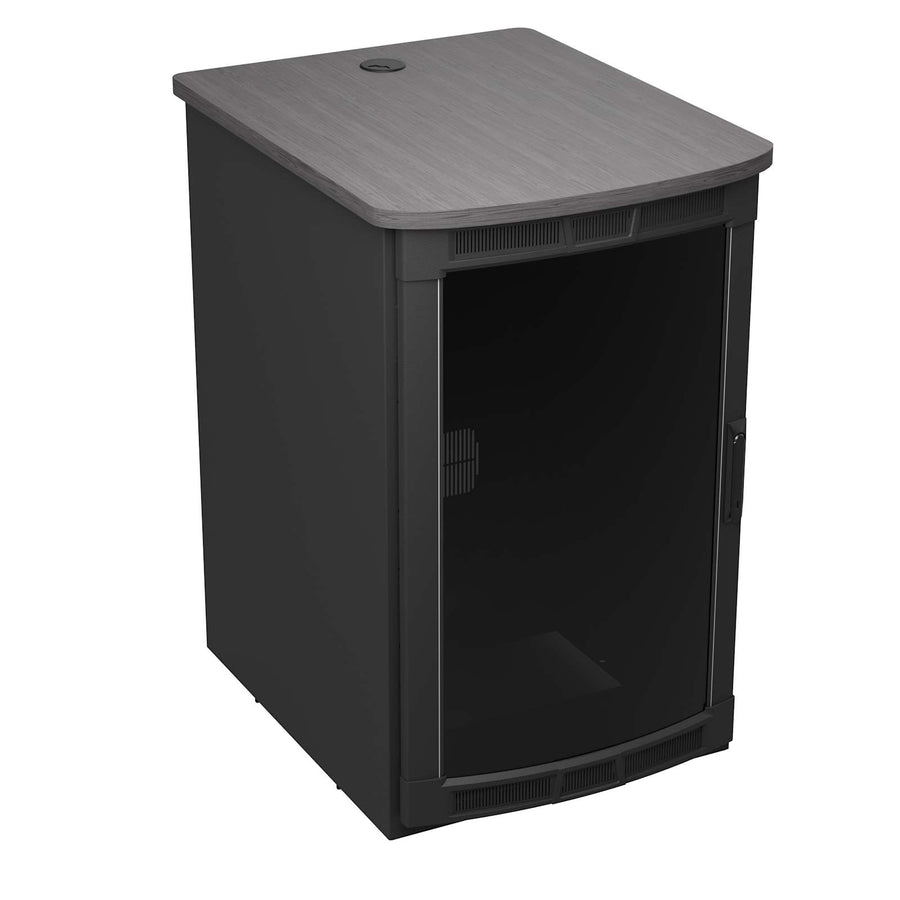

BGR-19SA27MDK-A3 Rolling Presentation Rack with Asian Night Top
19 RU mobile AV rack with Asian Night wood laminate top, 1100 lbs UL load capacity, and Forward Compatible rackrails
The BGR-19SA27MDK-A3 is a professional mobile AV enclosure from the BGR MDK Series that combines high-end furniture elegance with a robust steel construction. This 19 RU rolling rack features an Asian Night high pressure laminate (HPL) wood top specifically designed to accommodate video monitors. The enclosure is built from steel with a black wrinkle powder coat finish and includes a skirted wheelbase with leveling feet for stability. For accessibility, it features a curved plexi front door and a rear door designed for cable entry. The unit is equipped with 25mm x 150mm swing handles and utilizes a Forward Rackrail system. This system is Forward Compatible, allowing for the integration of Forward blank panels, vent panels, and both horizontal and vertical cable management. The 24.5 in (62.2 cm) total width provides extra lateral space for front-to-back cable management and mounting small devices on Lever Lock™ accessories, maximizing your 19 RU usable space.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 39.5 in (100.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 165 lbs (74.8 kg) |
| Rack Units | 19 RU |
| Shipping Weight | 191 lbs (86.6 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 33.25 in (84.5 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Asian Night |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402548 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
100 CFM Fan Panel, 27dB
UQFP-4$630.90
1 RU Fan Tray, 3 Fans, 207 CFM
FTA-3$556.20
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A
PDT-615C-NS$232.20
13 RU Lace Strip with Round Holes - 6 Piece
LACE-13P$105.30

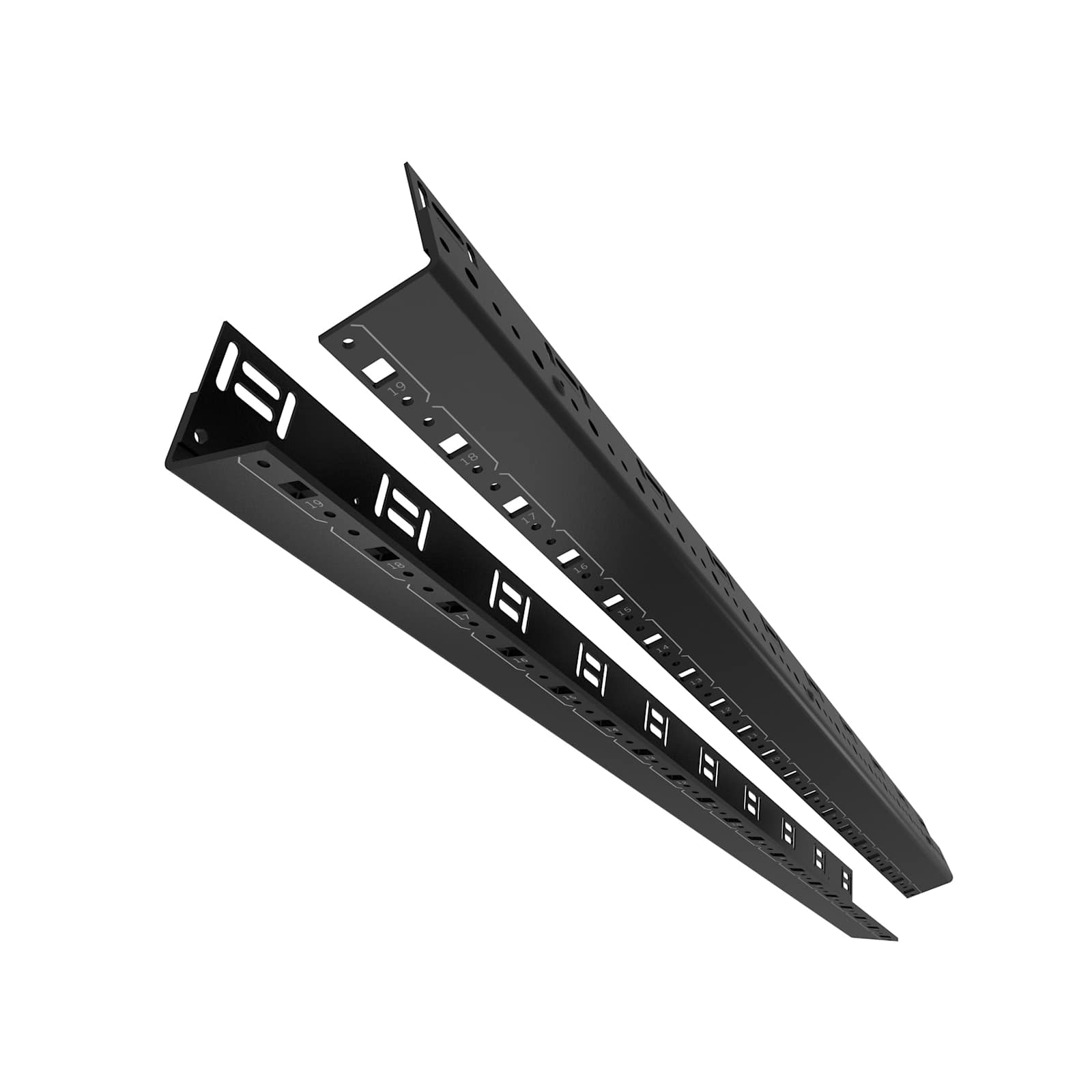

19 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR19$152.10
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Questions about this part
Can I mount a monitor on top of this rack?
Yes, the BGR-19SA27MDK-A3 features an Asian Night high pressure laminate (HPL) top that can accommodate video monitors.
What is the usable depth for my equipment?
The total depth is 31.35 in (79.6 cm), providing a usable depth of 24.4 in (62 cm) inside the enclosure.
Is this rack compatible with the Forward series accessories?
Yes, it is Forward Compatible and accepts Forward vertical cable management and Forward blank or vent panels.
What is the weight capacity for this mobile rack?
The unit has a UL Listed load capacity of 1100 lbs (499 kg).
What is the difference between the BGR-19SA27MDK-A3 and other BGR MDK racks?
This SKU is the Asian Night finish variant; other options in the series offer different wood laminate colors such as Walnut Heights or Studio Teak.
