AXS Series Rack AX-SXR-38
38 RU in-wall slide out rotating rack for large-scale A/V equipment installation, 450 lbs capacity

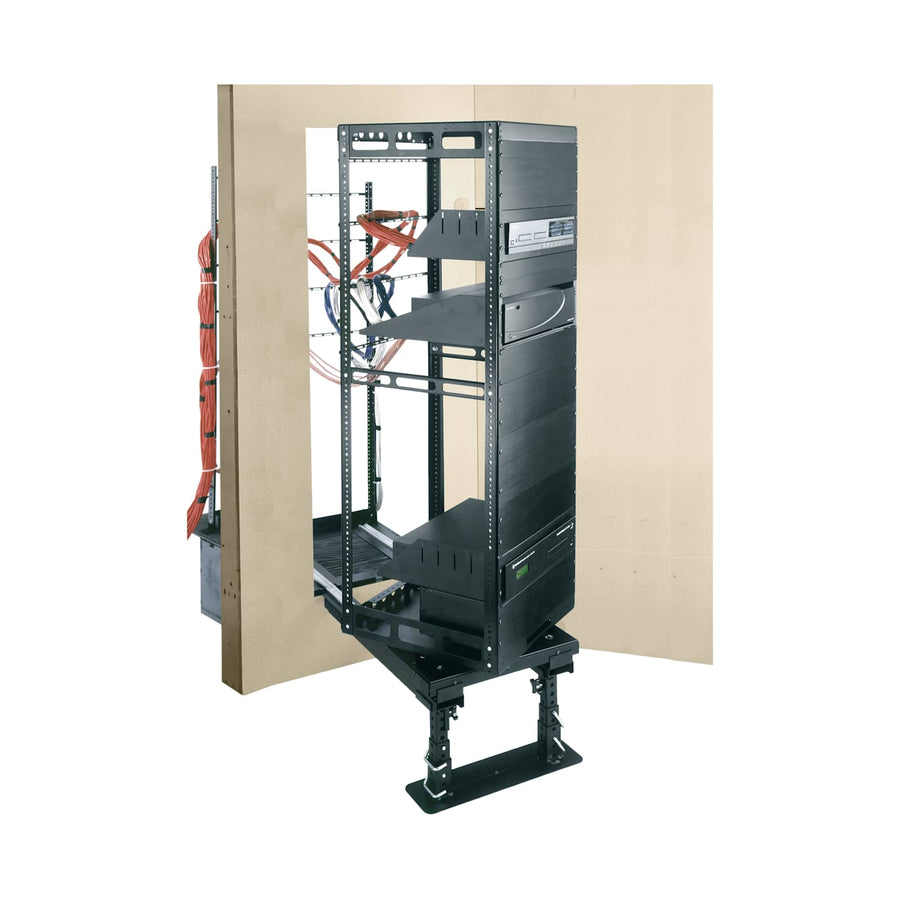

The AX-SXR-38 is a 38 RU in-wall slide out rotating rack designed to provide access to equipment in cramped spaces. While it functions similarly to the standard AXS Series, this AX-SXR model features a rotating capability once pulled out from the wall or cabinet, allowing for easier maintenance and cabling in large-scale audio and video installations. It is built with a unique interlocking corner joint to ensure exceptional structural strength and assembly ease. This rack features standard 10-32 threaded front and rear rack rails with numbered spaces for quick component identification. For efficient installation, the removable frame can be integrated off-site, and the service tracks include a built-in level. This unit is TAA compliant and supports a weight capacity of 450 lbs (204.1 kg). It has a usable height of 66.5 in (168.9 cm) and a usable depth of 20 in (50.8 cm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 71.19 in (180.8 cm) |
| Rack Units | 38 RU |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 66.5 in (168.9 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056277 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
AXS Service Tracks 31 Inch
TRACK31$512.10
114 CFM Fan Kit for AXS Series Rack
AXS-FAN-KDiscontinued
AXS Service Stand 3-10 Inches High
TS310$451.80
57 CFM Fan Kit for AXS Series Rack
AXS-FANDiscontinued
AXS Service Stand 10-22 Inches High
TS1022$612.90
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A & 2-Stage Surge
PDT-1015C-RN$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
PDT-1015C-M-NS$385.20
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Questions about this part
How does the AX-SXR-38 differ from the standard AXS Series?
The AX-SXR-38 includes a rotating mechanism that allows the rack to turn once it is pulled out from the wall, providing better access to equipment in tight spaces compared to the non-rotating AXS models.
What is required to complete the installation of the AX-SXR-38?
Service tracks and service stands must be purchased separately to allow the rack to pull out for servicing; compatible options include the AXS Service Stand (TS310 or TS1022) and AXS Service Tracks (TRACK31).
What are the usable dimensions for equipment mounting?
This 38 RU rack provides a usable height of 66.5 in (168.9 cm) and a usable depth of 20 in (50.8 cm).
Is the AX-SXR-38 suitable for high-density equipment loads?
Yes, this rack is designed for large systems and supports a total weight capacity of 450 lbs (204.1 kg).
Which document should I use for a project submittal?
For technical drawings and CAD files, you can download the AX-SXR Series CAD Technical Specification Drawings (dwg) available in the resources tab.
