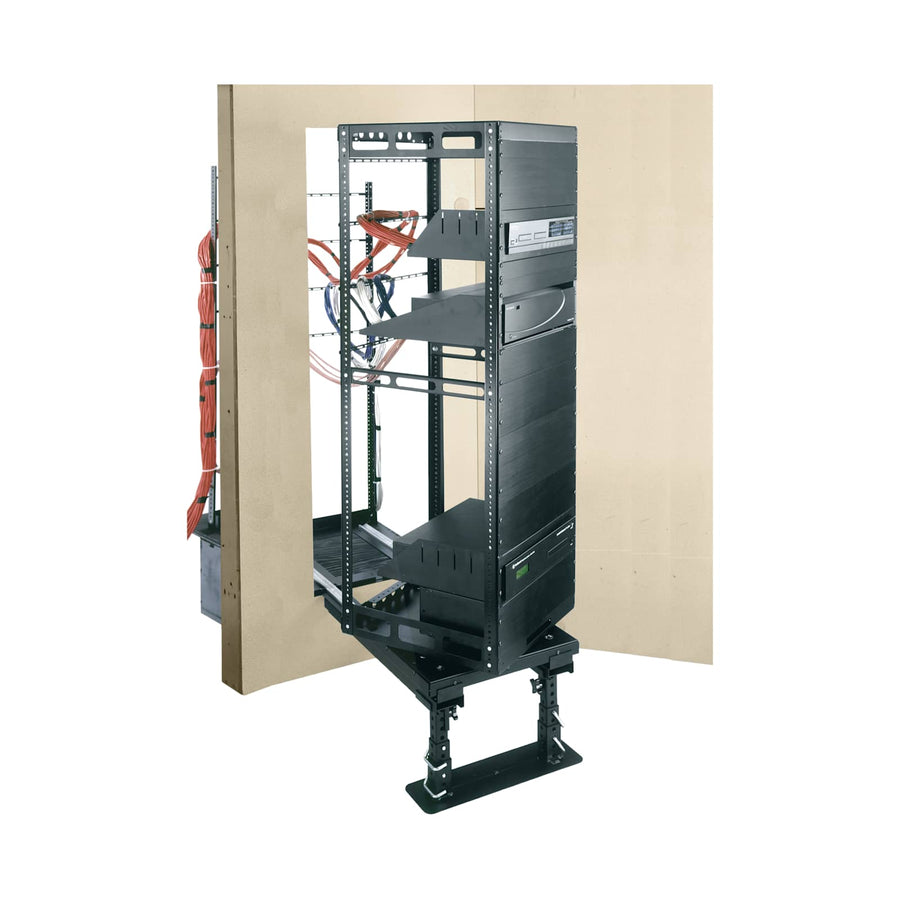

AXS Series Rack AX-SXR-36
In-wall 36 RU slide out rotating rack for flush-mounted AV equipment, featuring a 450 lbs weight capacity and TAA compliance
The Middle Atlantic AX-SXR-36 is an AXS Series in-wall slide out rotating rack designed to facilitate easy access to audio and video equipment installed flush into a wall or cabinet. While similar to the standard AXS series, this AX-SXR model provides an additional rotating capability once pulled out, allowing technicians to service equipment in cramped or restricted spaces. This unit is built with a unique interlocking corner joint for exceptional strength and ease of assembly during installation. It features standard fixed front and rear 10-32 threaded rackrails with numbered spaces for organized mounting. This 36 RU rack has a total height of 67.69 in (171.9 cm) and a width of 19.25 in (48.9 cm). With a usable height of 63 in (160 cm) and a usable depth of 20 in (50.8 cm), it supports heavy systems with a 450 lbs (204.1 kg) weight capacity. This model is TAA compliant and is manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 67.69 in (171.9 cm) |
| Rack Units | 36 RU |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 63 in (160 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056253 |
| Certifications | TAA |
Resources
You'll need these with it
FTA Series 4 Inch DC Fan
FT-FAN$90.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
10-32 Rackscrew Truss-Head - 100 Piece
HP$41.40

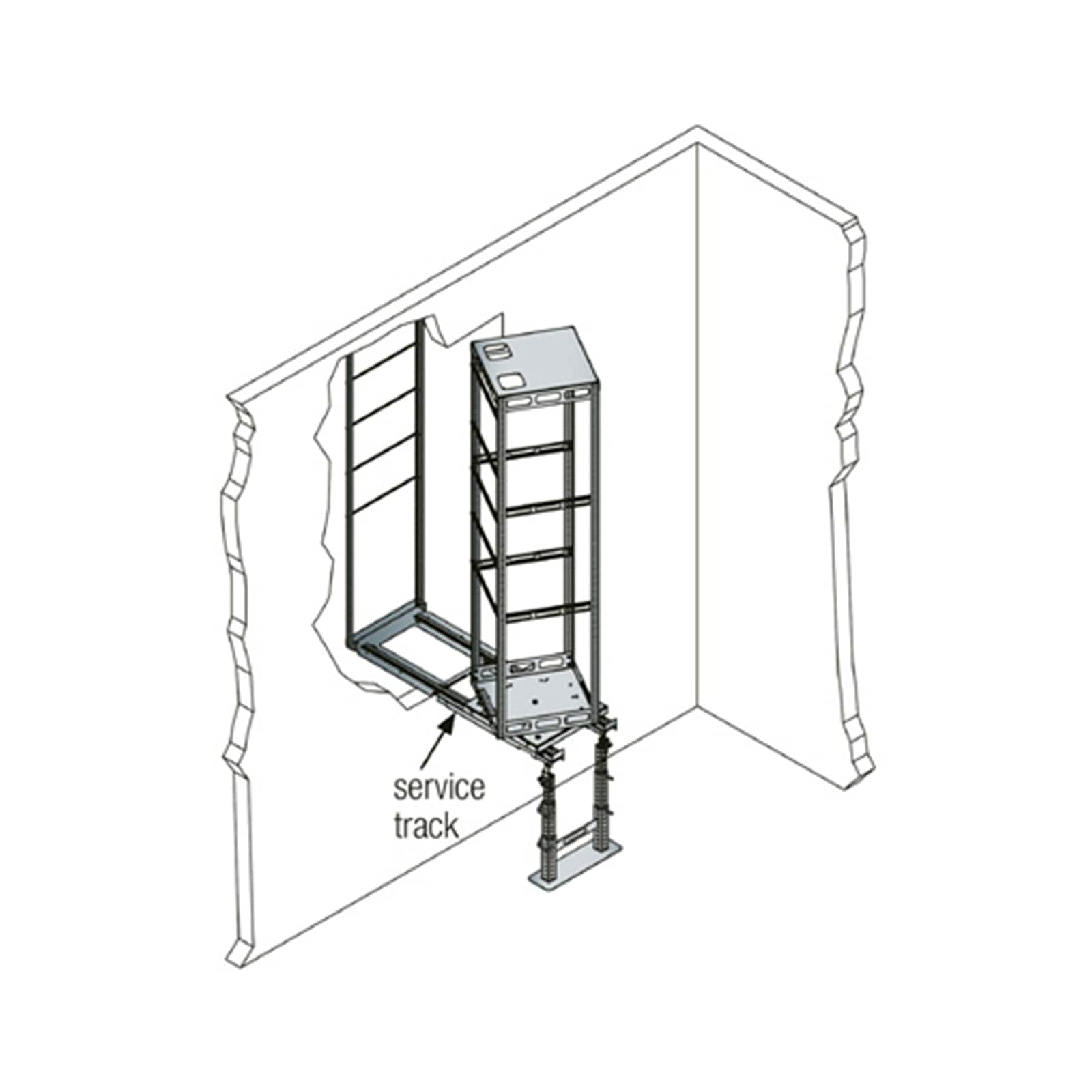

AXS Service Tracks 31 Inch
TRACK31$512.10

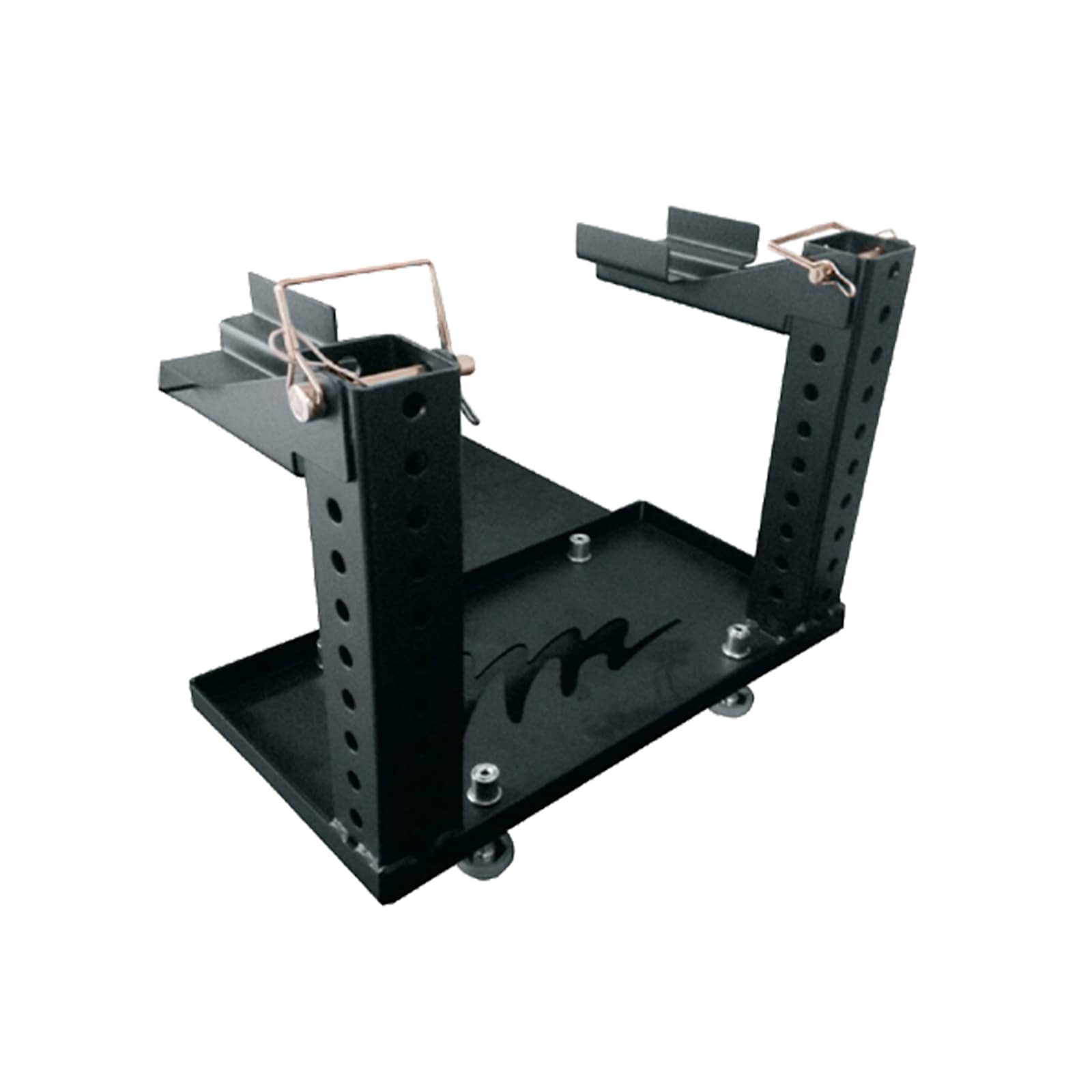

AXS Service Stand 3-10 Inches High
TS310$451.80
293 CFM Duct Cool System
DUCT-COOL-2PT$1,001.70
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A & 2-Stage Surge
PDT-1015C-RN$297.90

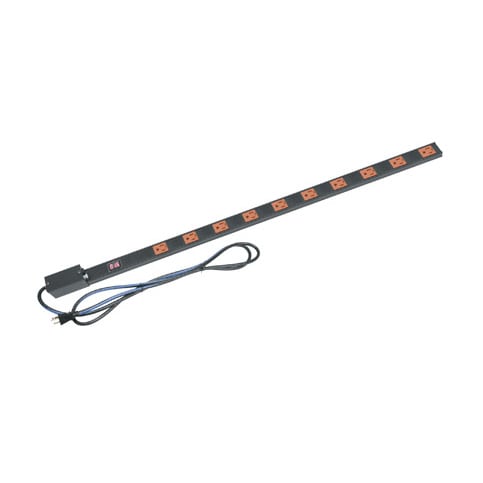

PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
PDT-1015C-M-NS$385.20
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
Questions about this part
Will this rack fit my in-wall AV equipment?
The AX-SXR-36 is designed for audio and video equipment installed flush into a wall or cabinet, providing rotation for easier service in tight spaces.
What do I need to buy to complete the installation?
Service tracks, such as the AXS Service Tracks 31 Inch (TRACK31), and AXS Service Stands (TS310) are required and sold separately.
What is the maximum weight capacity for the AX-SXR-36?
This 36 RU rack has a total weight capacity of 450 lbs (204.1 kg).
What type of rack rails are used in this unit?
The rack features standard fixed front and rear 10-32 threaded rackrails with numbered spaces for equipment mounting.
Can I integrate this rack before it is installed in the wall?
Yes, the removable rack frame is designed to be integrated off-site to save time during the installation process.
