293 CFM Duct Cool System
Active thermal management system with 293 CFM airflow and automatic thermostatic control

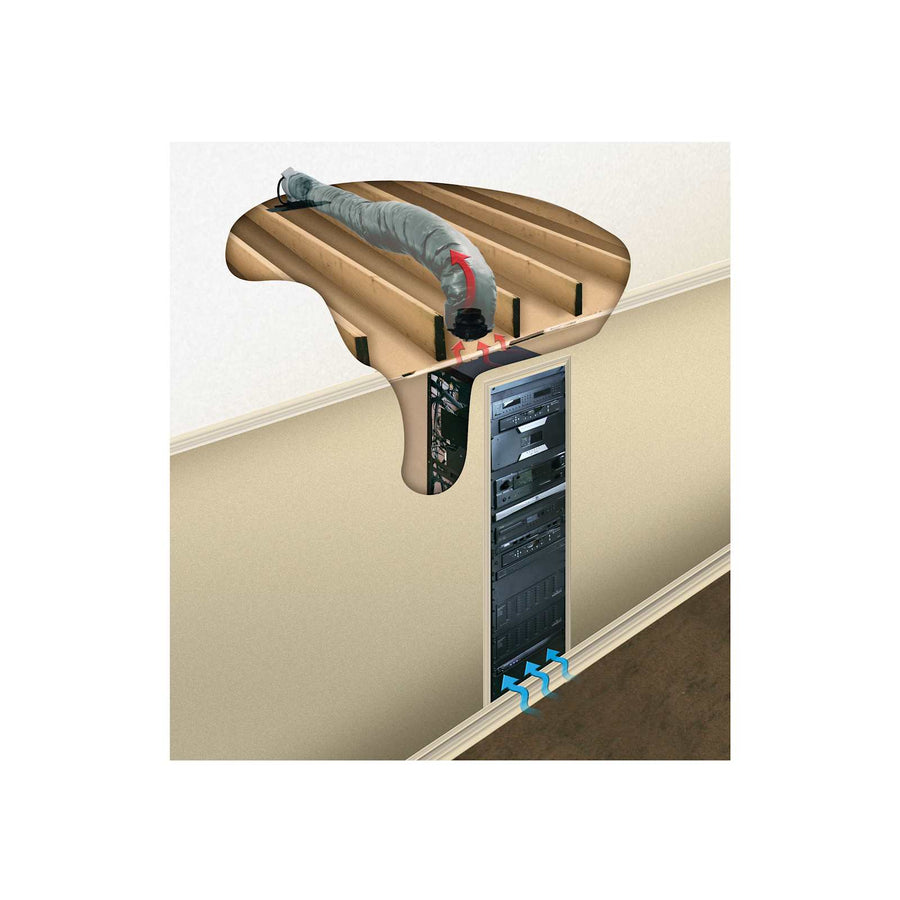

The Middle Atlantic DUCT-COOL-2PT is an active thermal management system designed to pull heated air from confined areas and exhaust it to a remote location. This system utilizes a high static pressure blower capable of maintaining airflow through up to 25 feet of duct. It is rated at 293 CFM and operates at 36.5 dB to manage heat quietly. For automated temperature control, the unit features a built-in thermostat that is preset to activate the fan at 88ºF and deactivate it once the temperature drops to 85ºF. The system operates on 120 VAC and is UL Listed. This component provides flexible positioning options for installers needing to manage heat in environments where the primary exhaust point is far from the heat source.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| CFM | 293 |
| Depth | 11.68 in (29.7 cm) |
| Height | 11.4 in (29 cm) |
| Volts AC | 120 VAC |
| Width | 10.3 in (26.2 cm) |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Power Type | AC |
| UPC | 656747099182 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
How far can the exhaust duct extend from the unit?
The high static pressure blower is designed to maintain airflow through up to 25 feet of duct.
Can I change the temperature settings on the thermostat?
The unit includes a built-in thermostat preset to turn on at 88ºF and turn off at 85ºF.
What is the noise level during operation?
The system is rated at 36.5 dB while providing 293 CFM of airflow.
What electrical requirements are needed for installation?
The DUCT-COOL-2PT requires a 120 VAC power source.
Are there additional accessories available for this system?

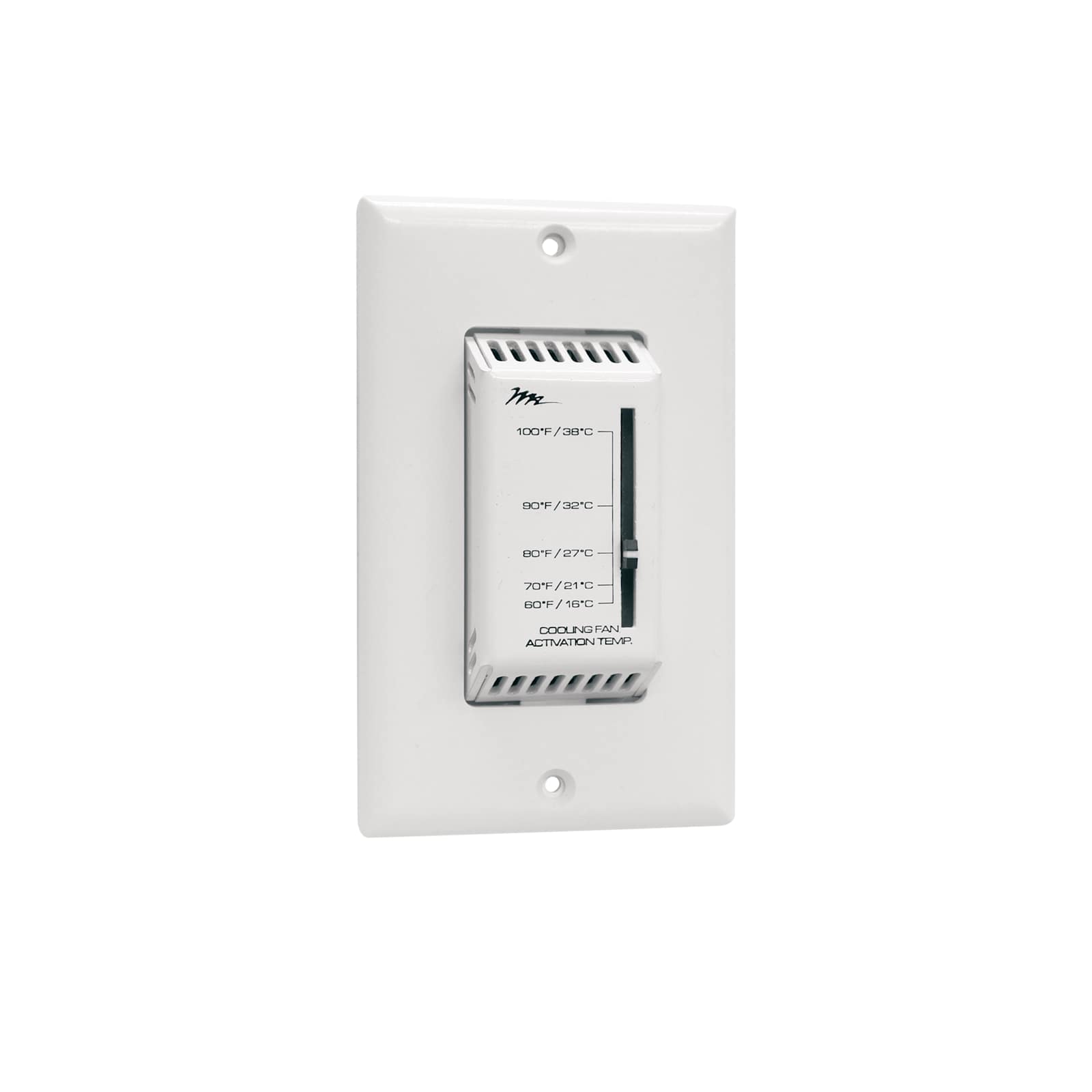

The DUCT-COOL-2PT is compatible with the THERM-A Duct Cool Thermostat.
