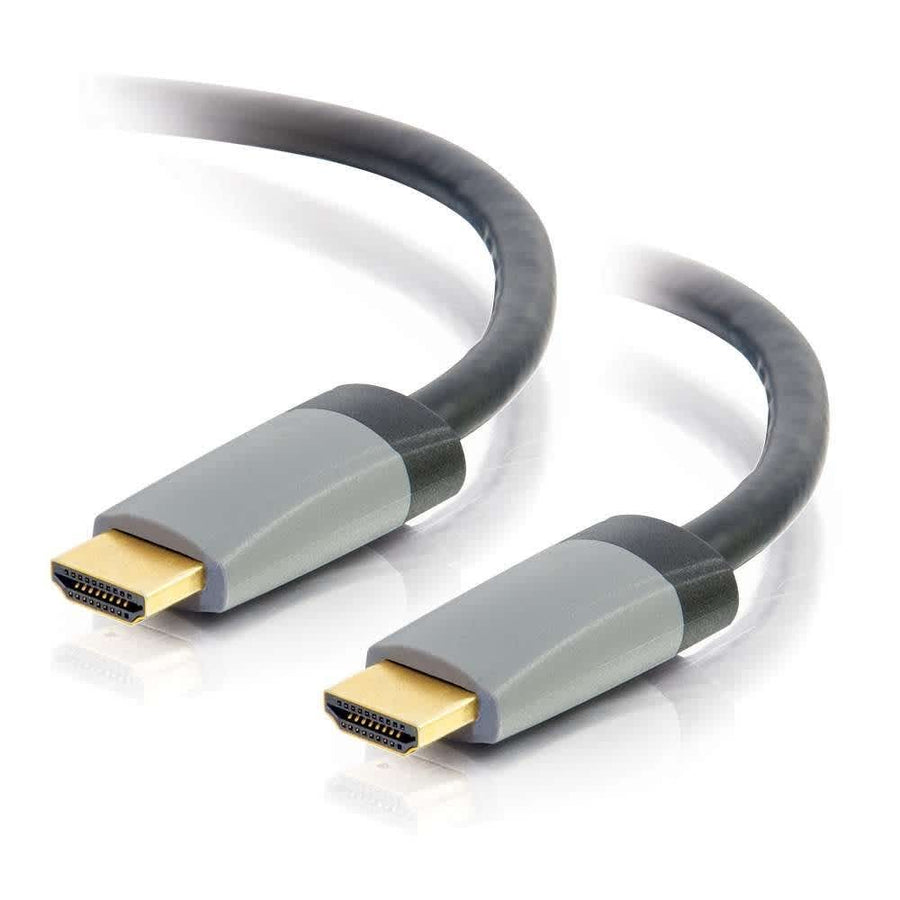

50ft (15.2m) Plus Series Select Standard HDMI® Cable with Ethernet
50ft (15.2m) HDMI cable with Ethernet, CL2 rated for in-wall use and 1080p @ 60Hz support
The C2G CG50636 is a 50 ft (15.2 m) Plus Series Select Standard Speed HDMI cable designed for multimedia source device connections in commercial audio-video and desktop applications. This cable is engineered for reliability in professional environments, featuring gold-plated connectors to ensure enhanced durability and increased electrical conductivity. For installations requiring cable runs through walls, the jacket is CL2 rated, making it suitable for in-wall applications. It supports a data transfer rate of 4.95 GBPS and provides a video resolution of 1080p @ 60Hz. The cable also supports CEC extensions, allowing for the control of connected consumer electronics through a single control point, and supports up to 32 audio channels for an immersive sound experience. This high-speed HDMI cable features a 0.39 in (10 mm) diameter and a bend radius of 2.76 in (70 mm). It is a black, in-wall rated solution for standard speed HDMI needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.76 in (70 mm) |
| Cable Diameter | 0.39 in (10 mm) |
| Cable Length | 50 ft (15.2 m) |
| Package Count | 1 |
| Shipping Weight | 4.15 lbs (1.9 kg) |
| Cable Type | High Speed HDMI, Video |
| Color | Black |
| Connector 1 | (1) HDMI Male |
All other specifications 10
| Connector 2 | (1) HDMI Male |
| HDMI Type | Standard Speed |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CL2 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| Video Resolution | 1080p @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 4.95 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
4-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41058$132.99
50ft (15.2m) Performance Series AOC High Speed HDMI® Cable
C2G41484$339.99
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
Questions about this part
Is the CG50636 suitable for installation inside walls?
Yes, this cable features a CL2 rated jacket specifically designed to meet the requirements for in-wall installations.
What video resolution can the CG50636 support?
The CG50636 supports video resolutions up to 1080p @ 60Hz with a data transfer rate of 4.95 GBPS.
Does this HDMI cable support audio control?
Yes, it supports CEC extensions for controlling consumer electronics through a single point and supports up to 32 audio channels.
What are the physical dimensions of the CG50636 cable?
The cable has a diameter of 0.39 in (10 mm) and a minimum bend radius of 2.76 in (70 mm).
What documentation is available for technical submittals?
You can access the C2G PLUS SERIES Select HDMI® Cable with Ethernet - In-Wall CL2-Rated PDF for detailed technical specifications.
