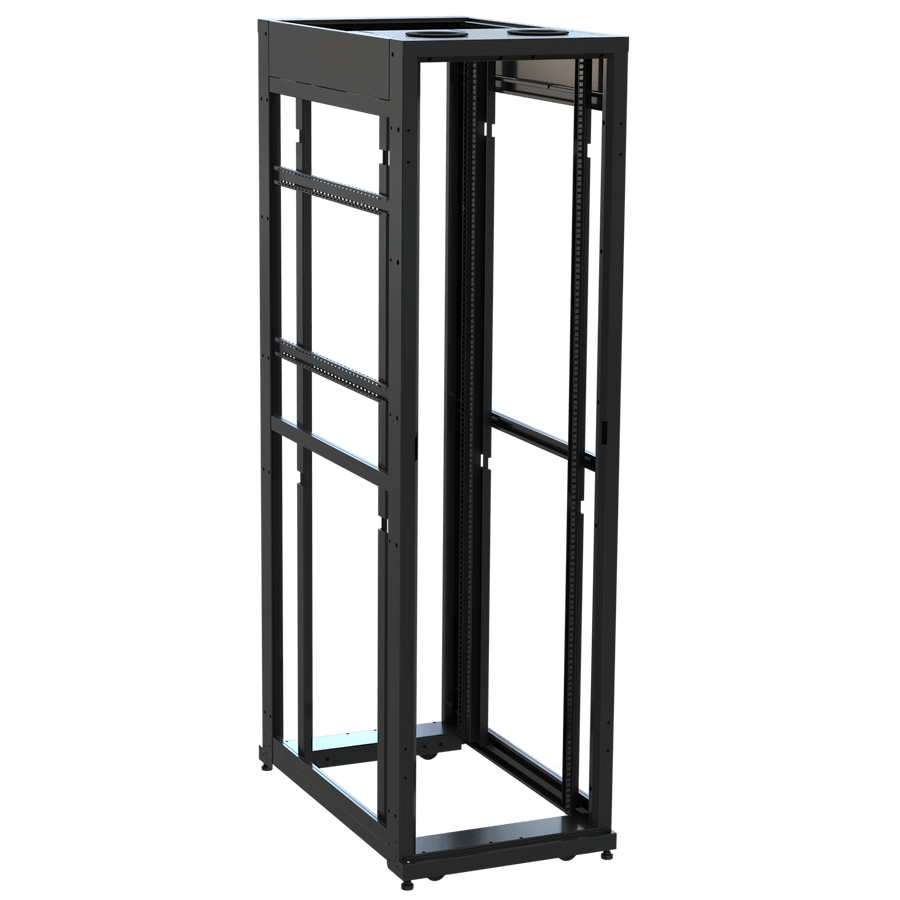

45 RU SNE Series Rack Frame, 42 Inches Deep, 24 Inches Wide with Cage Nut Rackrail
45 RU SNE Series Rack Frame, 42 in deep, 24 in wide, seismic rated, UL listed, with cage nut rackrails
The SNE24F-CN-4542 is a 45 RU SNE Series Rack Frame designed for advanced security and network enclosure applications. This floor-standing frame is purpose-built to meet the rigorous requirements of hybrid systems, including IP networking, analog, digital, and analog deployments. It features a 42 in (106.7 cm) depth and a 24.04 in (61.1 cm) width, providing a usable height of 78.75 in (200 cm) and a usable depth of 38.48 in (97.7 cm). This TAA compliant, seismic-rated frame is UL listed and offers a significant UL load capacity of 3000 lbs (1,360.8 kg). The unit includes two pairs of cage nut rackrails and is engineered with a black texture powder coat finish. For installation, this frame is raised-floor ready and includes both standard riser bases and seismic bases, along with four leveling feet and four casters for mobility. While this SKU is the frame only, it is highly gangable to expand capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 84.9 in (215.7 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 213 lbs (96.6 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 38.48 in (97.7 cm) |
| Usable Height | 78.75 in (200 cm) |
| Width | 24.04 in (61.1 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747238284 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
45 RU SNE Series Cable Chase, 42 Inches Deep
SNE-CCE12-4542$1,273.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Questions about this part
Will this SNE24F-CN-4542 fit my equipment in a standard rack?
Yes, this frame provides a usable height of 78.75 in (200 cm) and a usable depth of 38.48 in (97.7 cm) to accommodate standard rackmount hardware.
What accessories are needed to complete this enclosure?
This is a frame-only system. You may need to purchase components such as the SNE-CCE12-4542 Cable Chase, various PDU options like the PDT-2X520, or WUSS17-5 Wide Unit Shelves to complete your setup.
Is the SNE24F-CN-4542 suitable for unconditioned spaces?
The SNE Series supports thermal options designed for both unconditioned or conditioned environments using either active or passive ventilation.
What is the difference between this and the WMRK-4542?
The SNE24F-CN-4542 is part of a series being discontinued on December 1, 2026; the WMRK-4542 is the manufacturer's recommended replacement.
Does this rack frame support seismic mounting?
Yes, this frame is seismic rated and includes both seismic and standard riser bases to ensure stability in various installation environments.
