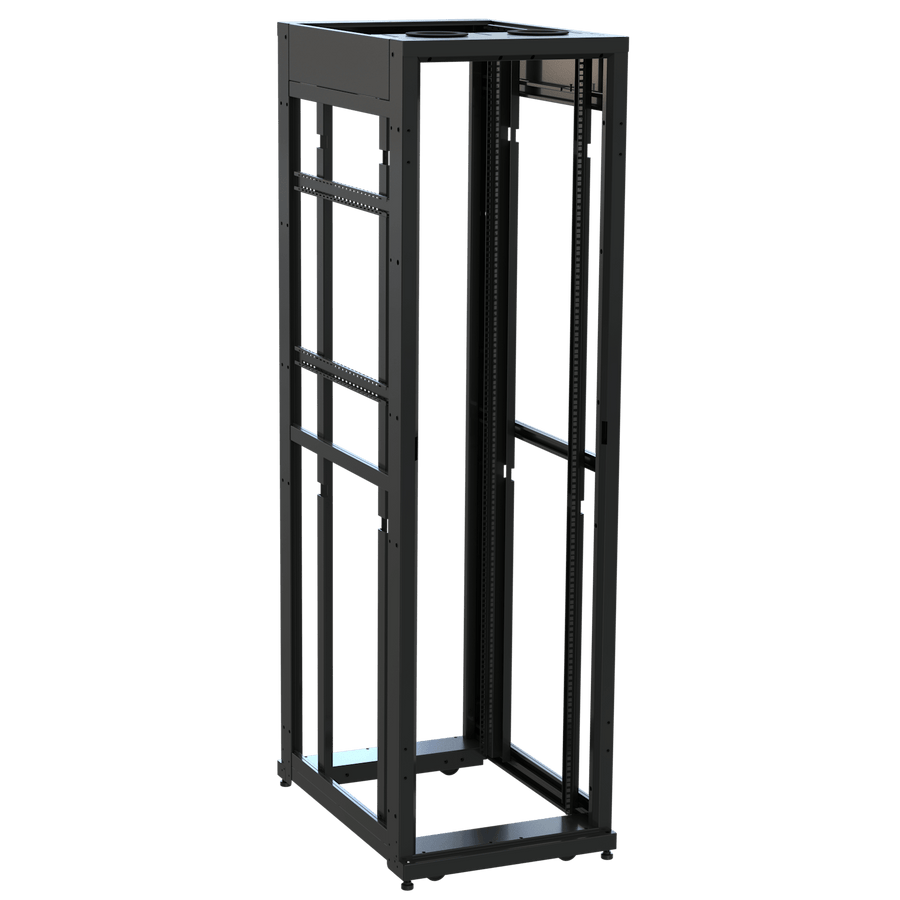

45 RU SNE Series Rack Frame, 36 Inches Deep, 24 Inches Wide with Cage Nut Rackrail
45 RU floor-standing rack frame, 24.04" wide and 36" deep, featuring seismic certification and cage nut rackrails
The SNE24F-CN-4536 is a 45 RU SNE Series Rack Frame designed to meet the rigorous demands of modern IP networking, analog, digital, and hybrid system installations. This 24.04" wide and 36" deep floor-standing frame provides a robust foundation for high-density equipment, offering a usable height of 78.75 in (200 cm) and a usable depth of 32.48 in (82.5 cm). Built for stability and security, the unit is seismic rated and UL listed, supporting a UL load capacity of 3000 lbs (1,360.8 kg). This system type is a frame only, supplied with two pairs of cage nut rackrails and four leveling feet. For mobility, the unit includes four casters. The frame is gangable and features a black texture powder coat finish. This TAA compliant, USA-made chassis is the ideal base for SNE Series security and network enclosures, supporting various thermal management and cabling options to suit both conditioned and unconditioned environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 84.9 in (215.7 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 204 lbs (92.5 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 78.75 in (200 cm) |
| Width | 24.04 in (61.1 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747238246 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
24 Inch Wide Solid Top for SNE Rack
SNE24-ST$103.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
45 RU Split Fan Door for 24 Inch SNE Rack
SNE24-CFD-45$2,095.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
Questions about this part
What equipment can I mount in the SNE24F-CN-4536?
This frame is purpose-built for IP networking, analog, digital, and hybrid systems. It is compatible with a wide range of SNE Series accessories, such as the SNE24-ST solid top or SNE24-CFD-45 split fan doors.
What is included with this rack frame?
This is a frame-only system that includes two pairs of cage nut rackrails, four leveling feet, and four casters. Note that mounting hardware for specific devices or specialized rails may be required separately.
What is the usable depth of this 36 inch rack?
While the total depth is 36 in (91.4 cm), the usable depth for equipment installation is 32.48 in (82.5 cm).
Is this rack suitable for seismic environments?
Yes, the SNE24F-CN-4536 is seismic rated and UL listed, making it suitable for environments requiring high structural integrity.
Can I expand this rack with other units?
Yes, this frame is gangable, allowing you to attach additional units side-by-side for larger system deployments.
