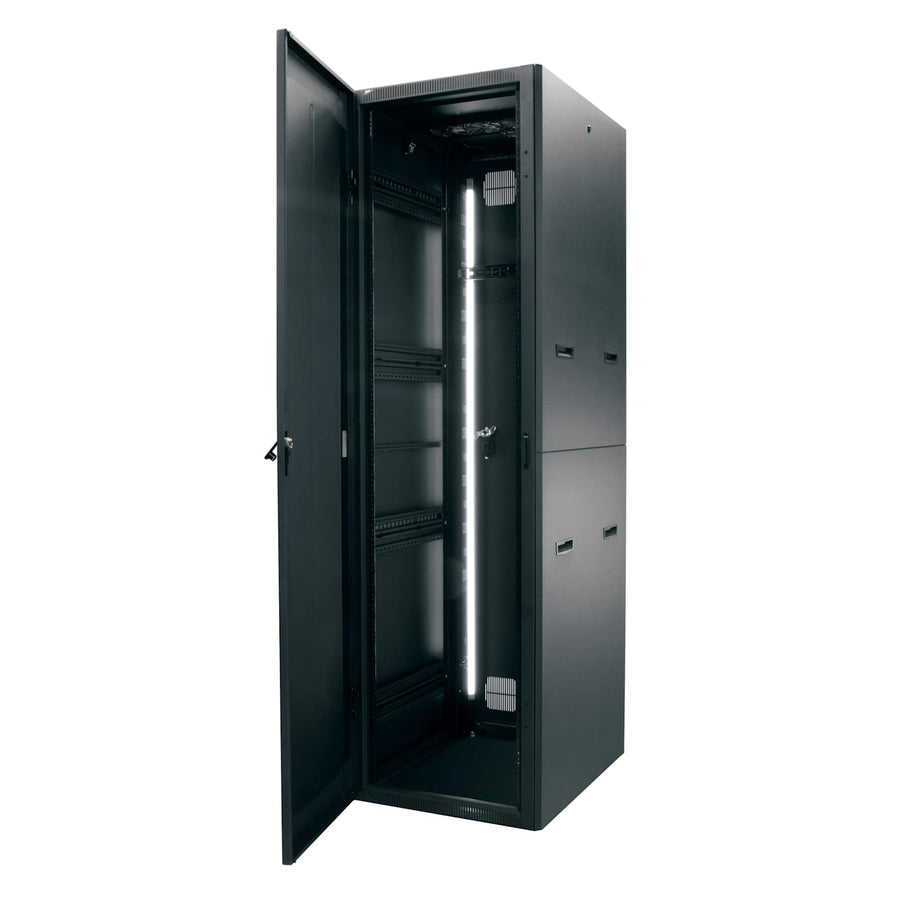

45 RU Pre-Configured BGR for AV Systems - 32 Inches Deep
45 RU floor-standing AV rack, 32-inch depth, pre-configured with integrated cable management and thermal accessories
The BGR-4532-AV is a pre-configured 45 RU floor-standing BGR rack specifically engineered for modern professional AV systems. This steel rack features a 32 in (81.3 cm) depth and a total height of 83.23 in (211.4 cm). Designed for rapid deployment, this unit comes with several Forward accessories, including four 1RU flanged blank panels (FWD-EB1), two 2RU flanged blank panels (FWD-EB2), and a variety of horizontal and vertical cable management solutions. Vertical organization is supported by two Lever Lock™ vertical channels (LL-VC21) and Forward Vertical Cable Management Lace (FWD-LACE-UMV-44-45). Horizontal routing is facilitated by a 4pk of Forward straight horizontal lacer bars (FWD-LB-1A-4PK) and a 4pk of Forward 2” offset horizontal lacer bars (FWD-LB-2A-4PK). This TAA compliant rack provides a usable depth of 22.9 in (58.2 cm) and a weight capacity of 3000 lbs (1360.8 kg), making it a robust solution for high-density equipment deployments. The 23 in (58.4 cm) wide frame includes a rear door and swing handles (25mm x 150mm) for efficient access.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 276 |
| Depth | 32 in (81.3 cm) |
| Height | 83.23 in (211.4 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 320 lbs (145.2 kg) |
| Usable Depth | 22.9 in (58.2 cm) |
| Usable Height | 78.88 in (200.4 cm) |
All other specifications 15
| Weight Capacity | 3000 lbs (1360.8 kg) |
| Width | 23 in (58.4 cm) |
| Color | Black |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Pre-Configured for Pro AV |
| Rack Rail Type | Forward Rackrail |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Special Features | Installation Time Savers |
| UPC | 656747384431 |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
1 RU Mounting Rackshelf
UTR1$58.50
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-44-OWP$400.50
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
Leveling Feet Heavy Duty
LF-HD$47.70
1 RU Mounting Rackshelf - 12 Piece
UTR1-RP12$615.60
Questions about this part
What is included in the pre-configured BGR-4532-AV kit?
This SKU includes specific Forward accessories: (4) 1RU flanged blank panels (FWD-EB1), (2) 2RU flanged blank panels (FWD-EB2), (1) 4pk of Forward straight horizontal lacer bars (FWD-LB-1A-4PK), (1) 4pk of Forward 2” offset horizontal lacer bars (FWD-LB-2A-4PK), (1) Forward Vertical Wire Grid Lace (FWD-LACE-WB3-44-45), and (1) Forward Vertical Cable Management Lace (FWD-LACE-UMV-44-45) with two Lever Lock™ vertical channels (LL-VC21).
What is the usable space inside the BGR-4532-AV?
The rack has a total usable height of 78.88 in (200.4 cm) and a usable depth of 22.9 in (58.2 cm).
Is the BGR-4532-AV TAA compliant?
Yes, the BGR-4532-AV is TAA compliant and features a steel construction with a black wrinkle powder coat finish.
Can I add casters or leveling feet to this rack?
Yes, compatible accessories include the Caster Base for BGR Series (CBS-BGR) or Heavy Duty Leveling Feet (LF-HD).
What additional mounting hardware or shelves are compatible?
Compatible items include various 1RU and 2RU shelves like the VSA-1626 or VDS, as well as vertical power strips such as the PD-2420SC-NS.
