44 RU ERK Series Rack, 25 Inches Deep, Knockdown
44 RU knockdown floor-standing rack, 25 inch depth, 1000 lbs UL load capacity, TAA compliant

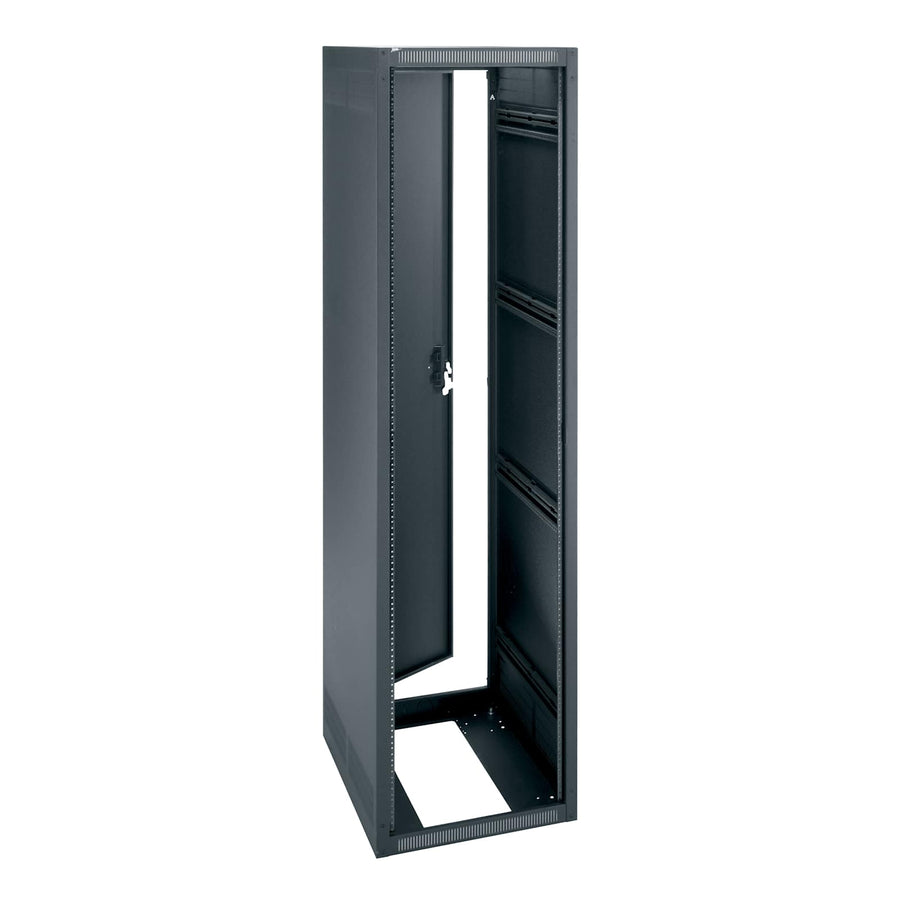

The Middle Atlantic ERK-4425KD is a 44 RU floor-standing rack designed for efficient, economical AV installations. This knockdown series ships flat for simplified logistics and streamlined on-site assembly. Built from steel with a black wrinkle powder coat finish, this frame-only configuration offers a usable height of 77.13 in (195.9 cm) and a usable depth of 23.47 in (59.6 cm) within a 25 in (63.5 cm) total depth. The rack features standard front adjustable 10-32 threaded rackrails with numbered spaces for precise equipment positioning. For thermal management, the side panels include both top and bottom venting to facilitate passive airflow. This model includes a configurable rear door for enclosure security. For larger deployments, multiple ERK Series enclosures can be ganged together to create partitioned multi-bay systems, allowing for improved thermal management control and enhanced security in complex installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 81.13 in (206.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 184 lbs (83.5 kg) |
| UL Load Capacity | 1000 lbs (453.6 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
| Usable Height | 77.13 in (195.9 cm) |
All other specifications 14
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| Rear Door | Yes |
| Ships Flat | Yes |
| TAA Compliant | YesYes |
| UPC | 656747070242 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-25$324.00
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
Caster Base for 25 Inch Deep ERK Series - 700 pounds
CBS-ERK-25R$373.50
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 20 Outlet, 15A Hardwired
PDT-2X1015$440.10
PDT Low Profile Vertical Power Strip, 20 Outlet, 15A & 2-Stage Surge
PDT-2015C-RN$418.50
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Questions about this part
Will the ERK-4425KD work for a seismic installation?
Yes, this rack has a documented seismic load capacity of 591 lbs (268.1 kg).
What do I need to buy to complete this rack installation?
This is a frame-only configuration. You may need to add accessories such as the CBS-ERK-25 caster base, UTR1 mounting rackshelves, or various PDT power strips.
How much equipment can I safely load into this rack?
The ERK-4425KD has a UL load capacity of 1000 lbs (453.6 kg).
Can I use this rack for partitioned multi-bay setups?
Yes, the ERK Series enclosures are designed to be ganged together to create partitioned, multi-bay installations for improved security and thermal management.
Does this rack meet TAA requirements?
Yes, the ERK-4425KD is TAA compliant and is manufactured in the USA.
