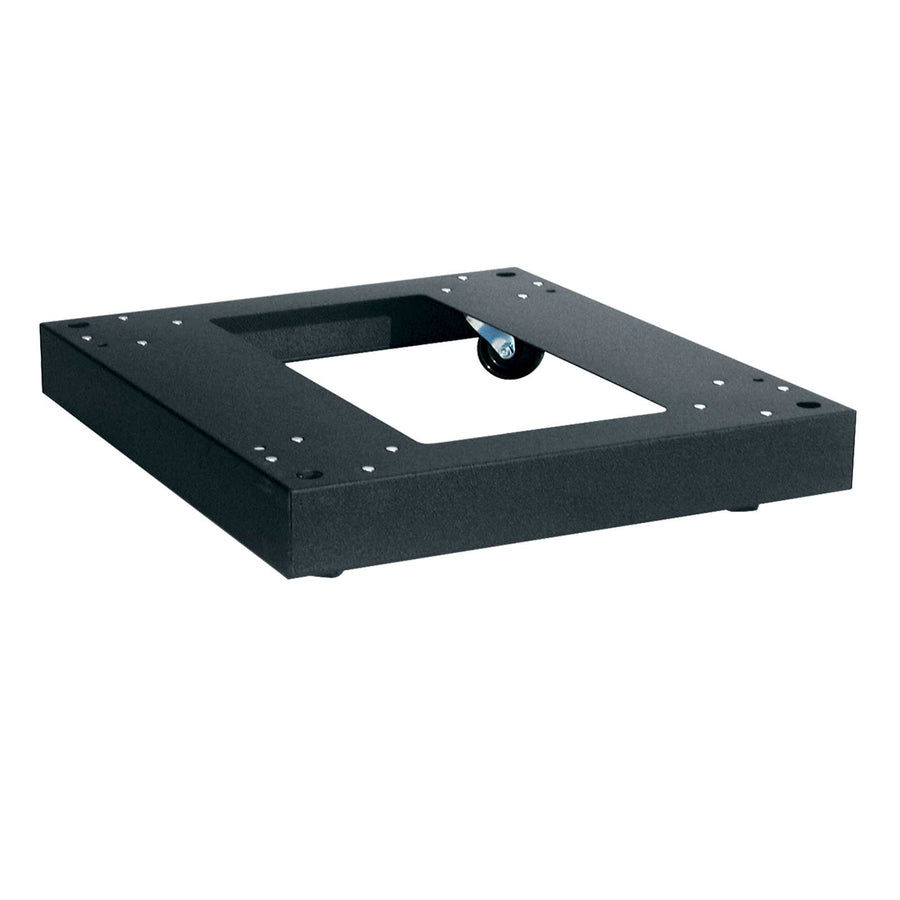

Caster Base for 25 Inch Deep ERK Series - 700 pounds
Skirted caster base for 25 in deep ERK series racks, providing a 700 lbs capacity and 4 in additional height
The CBS-ERK-25R is a skirted caster base specifically designed to bolt to the bottom of Middle Atlantic ERK Series rack systems. This base adds 4 in (10.2 cm) of height to the overall rack assembly and features a black wrinkle powder coat finish on its robust steel construction. It is designed to hide the wheels, providing an improved aesthetic appearance while protecting the caster area. The unit is UL listed and TAA compliant. It includes four pre-installed 3" non-locking fine floor swivel casters, making it suitable for mobile equipment deployments on various floor types.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 25 in (63.5 cm) |
| Height | 4 in (10.2 cm) |
| Product Weight | 17.2 lbs (7.8 kg) |
| Shipping Weight | 19.2 lbs (8.7 kg) |
| Weight Capacity | 700 lbs (317.5 kg) |
| Width | 22 in (55.9 cm) |
| Base Series | ERK |
| Finish | Black Wrinkle Powder Coat |
| Style | Fine Floor |
| UPC | 656747067136 |
| Certifications | UL Listed |
Resources
Questions about this part
Will the CBS-ERK-25R fit my ERK series rack?
This base is specifically for the 25 in (63.5 cm) deep version of the ERK Series rack systems.
How much height does this caster base add to my rack?
This skirted base adds 4 in (10.2 cm) to your overall rack height.
What is the load capacity of the CBS-ERK-25R?
The base has a 700 lbs (317.5 kg) weight capacity.
What type of casters are included with this base?
It comes with (4) 3" pre-installed non-locking fine floor swivel casters.
Which documents are available for submittals?
You can access the Caster Inner Platform Bases A&E Specification Sheet or the 3D CAD drawings via the technical resources.
