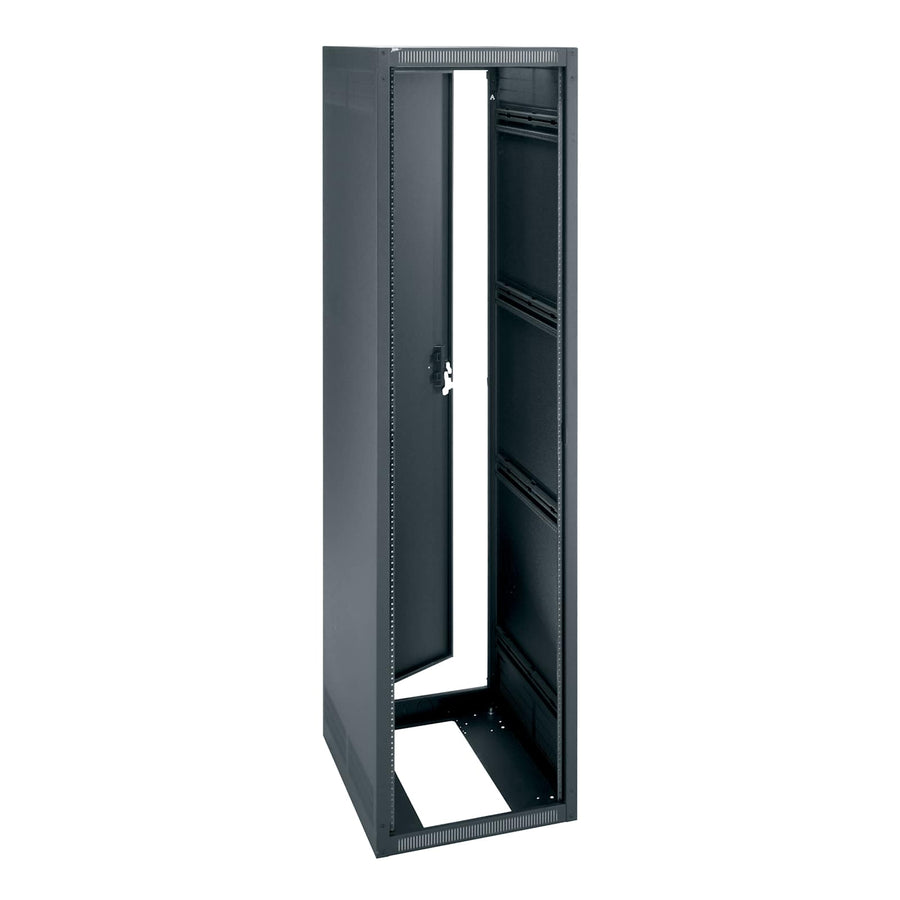

40 RU ERK Series Rack, 28 Inches Deep
40 RU floor-standing rack, 28 in deep, 2,500 lbs UL load capacity, seismic rated, and TAA compliant
The Middle Atlantic ERK-4028 is a 40 RU floor-standing rack designed for professional AV installations requiring high structural integrity and thermal management. This 28 in (71.1 cm) deep frame features a fully welded steel construction and is finished in a black wrinkle powder coat. It is engineered with top and bottom venting in the rack sides to facilitate airflow, and includes convenient lacing points and slotted rackrail brackets to streamline cable management. This unit provides a usable height of 70.13 in (178.1 cm) and a usable depth of 26.47 in (67.2 cm). For security, it includes a key-locked standard rear door. This ERK Series rack is UL listed with a 2,500 lbs (1,134 kg) weight capacity and is TAA compliant. For seismic protection in sensitive environments, this frame can be paired with ERK-Z4 brackets to achieve a seismic load capacity of 680 lbs (308.4 kg). This frame-only configuration can be ganged with other ERK Series enclosures to create partitioned multi-bay installations for improved security or controlled thermal management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 74.13 in (188.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 126.1 lbs (57.2 kg) |
| Rack Units | 40 RU |
| Shipping Weight | 158 lbs (71.7 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 26.47 in (67.2 cm) |
All other specifications 15
| Usable Height | 70.13 in (178.1 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747213618 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 680 lbs (308.4 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
KO Series Rear Door Fan Kit, 190 CFM
KO-AWFP2$252.90
40 RU Vented Front Door for SR, ERK, MRK and WRK Racks, 64% Open
LVFD-40$722.70
100 CFM Fan Panel, Anodized
QFP-2$252.90
550 CFM Fan Top for ERK Series with Controller ERK Series
ERK-10FT-FC$877.50
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
Caster Base for 28 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-28$343.80
40 RU Plexi Front Door for SR, ERK, MRK and WRK Racks
PFD-40$926.10
Caster Base for 28 Inch Deep ERK Series - 700 pounds
CBS-ERK-28R$388.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Questions about this part
Will this rack work for seismic installations?
Yes, this rack is seismic rated with a seismic load capacity of 680 lbs (308.4 kg) when installed with ERK-Z4 brackets.
Can I add cooling to this ERK-4028 rack?
Yes, you can add a 100 CFM Anodized fan panel (QFP-2) or a 550 CFM Top Fan (ERK-10FT-FC) to manage thermal requirements.
What is the usable space inside the ERK-4028?
The rack provides a usable height of 70.13 in (178.1 cm) and a usable depth of 26.47 in (67.2 cm).
What accessories are needed for cable management?
For organized cabling, you can use 40 RU Lace Strips (LACE-40-OWP) which are 4.75 inches wide and include tie posts.
Is this rack suitable for high-weight equipment loads?
Yes, this unit is UL listed with a total weight capacity of 2,500 lbs (1,134 kg).
