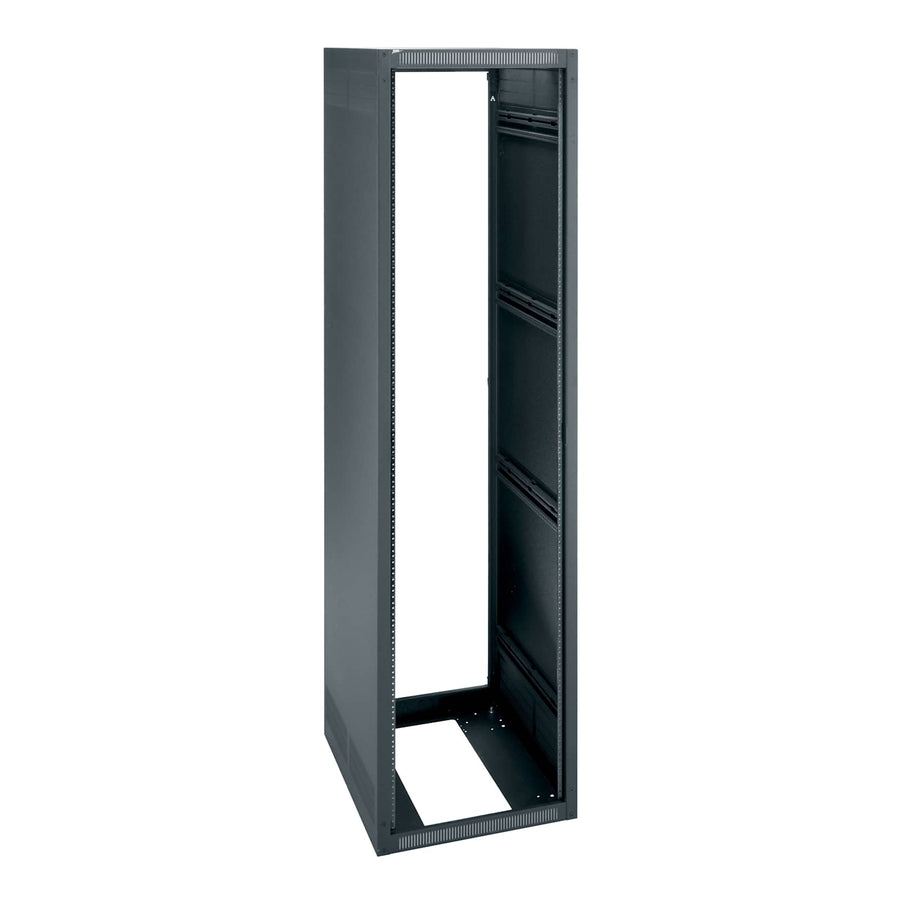

40 RU ERK Series Rack, 25 Inches Deep without Rear Door
40 RU floor standing rack, 25" deep, with a 2,500 lbs. UL load capacity and seismic rating
The ERK-4025LRD is a 40 RU floor standing rack from the Middle Atlantic ERK Series, providing a high-capacity foundation for professional AV installations. This frame-only configuration features a 25 in (63.5 cm) depth and 74.13 in (188.3 cm) height, offering 23.47 in (59.6 cm) of usable depth for equipment mounting. Constructed from heavy-duty steel with a black wrinkle powder coat finish, it is built for durability and strength. The rack is UL Listed in the US and Canada with a 2,500 lbs (1,134 kg) load capacity. For environments requiring enhanced structural stability, it is seismically rated with a seismic load capacity of 591 lbs (268.1 kg) when installed with ERK-Z4 brackets. This TAA compliant rack includes top and bottom venting in the sides and slotted rackrail brackets for efficient cable management. The front adjustable 10-32 threaded rackrails provide numbered spaces for precise component placement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 74.13 in (188.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 110.1 lbs (49.9 kg) |
| Rack Units | 40 RU |
| Shipping Weight | 142 lbs (64.4 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
All other specifications 15
| Usable Height | 70.13 in (178.1 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747006555 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-25$324.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
10-32 Rackscrew Truss-Head - 100 Piece
HP$41.40
40 RU Vented Front Door for SR, ERK, MRK and WRK Racks, 64% Open
LVFD-40$722.70
Caster Base for 25 Inch Deep ERK Series - 700 pounds
CBS-ERK-25R$373.50
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
40 RU Plexi Front Door for SR, ERK, MRK and WRK Racks
PFD-40$926.10
40 RU Vented Front Door for SR, ERK, MRK and WRK Racks
VFD-40$639.90
1 RU Rack Vent Panel, Perforated with 64% Open Area - 12 Piece Contractor Pack
VT1-CP12$280.80
1 RU Laminate Sliding Rackshelf
SSL$173.70
Questions about this part
Is the ERK-4025LRD seismic rated?
Yes, this rack has a seismic load capacity of 591 lbs (268.1 kg) when it is installed using ERK-Z4 brackets.
What is the maximum weight capacity for this rack?
This unit is UL Listed with a load capacity of 2,500 lbs (1,134 kg).
What accessories are needed to add a door or mobility?
You can add mobility with a CBS-ERK-25 caster base and secure the enclosure with a VFD-40, Vented Front Door, or PFD-40 Plexi Front Door.
What is the usable mounting depth for equipment?
The ERK-4025LRD has a 25 in (63.5 cm) total depth with a usable depth of 23.47 in (59.6 cm).
Can this rack be used in multi-bay installations?
Yes, the ERK Series is designed to be ganged together to create partitioned multi-bay installations for security and thermal management.
