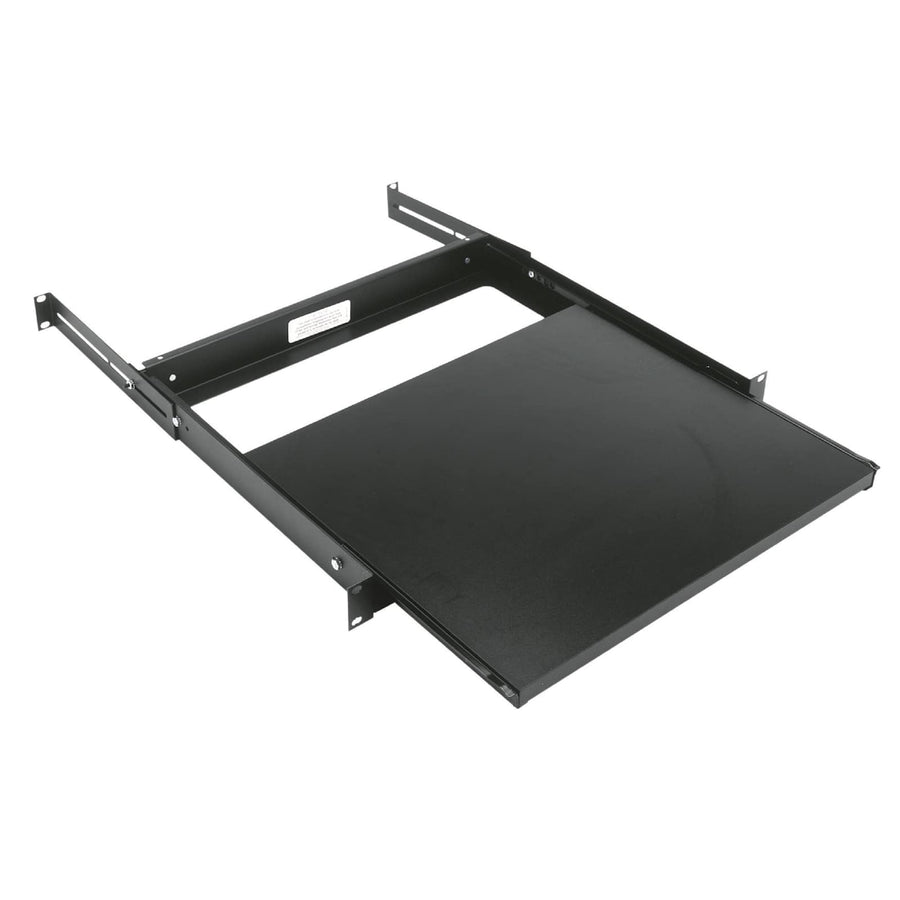

1 RU Laminate Sliding Rackshelf
1 RU sliding rackshelf with black laminate finish and 35 lbs weight capacity
The SSL is a 1 RU laminate sliding rackshelf designed to provide easy equipment access within a standard rack. This steel construction shelf features an attractive black laminate finish and occupies only a single rack unit of space. For installation, the unit uses a telescopic rear support that adjusts to accommodate a mounting depth range of 15.1" to 23.9". When fully extended, the nylon roller slides provide 11-3/8" of extension, offering a usable depth of 13.75". This shelf is rated for a weight capacity of 35 lbs (15.9 kg). Note that in steel racks, a rear rackrail is required for mounting. The SSL is TAA compliant and UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15.1 in (38.4 cm) |
| Height | 1.75 in (4.4 cm) |
| Mounting Depth Max | 23.9 in (60.7 cm) |
| Mounting Depth Min | 15.1 in |
| Rack Units | 1 RU |
| Shipping Weight | 10.6 lbs (4.8 kg) |
| Usable Depth | 13.75 in (34.9 cm) |
| Weight Capacity | 35 lbs (15.9 kg) |
All other specifications 5
| Width | 19 in (48.3 cm) |
| Color | Black |
| Mounting Points | 4 |
| UPC | 656747021978 |
| Certifications | UL Listed |
Resources
Questions about this part
Will the SSL fit in my rack?
The SSL requires a minimum distance of 15-1/8" between the front and rear rails. The adjustable rear support allows for mounting depths ranging from 15.1" to 23.9".
What is the weight capacity of the SSL sliding shelf?
The SSL is rated for a maximum weight capacity of 35 lbs (15.9 kg) across its 11-3/8" nylon roller extension.
What tools are needed for installation?
Please refer to the SSL and SS Series Instruction Sheet for the specific installation tools and mounting requirements.
Is the SSL TAA compliant?
Yes, the SSL is TAA compliant and is also UL Listed for safety standards.
How much usable depth does this shelf provide?
While the shelf has a total depth of 15.1" (38.4 cm), it provides a usable depth of 13.75" (34.9 cm) when extended.
