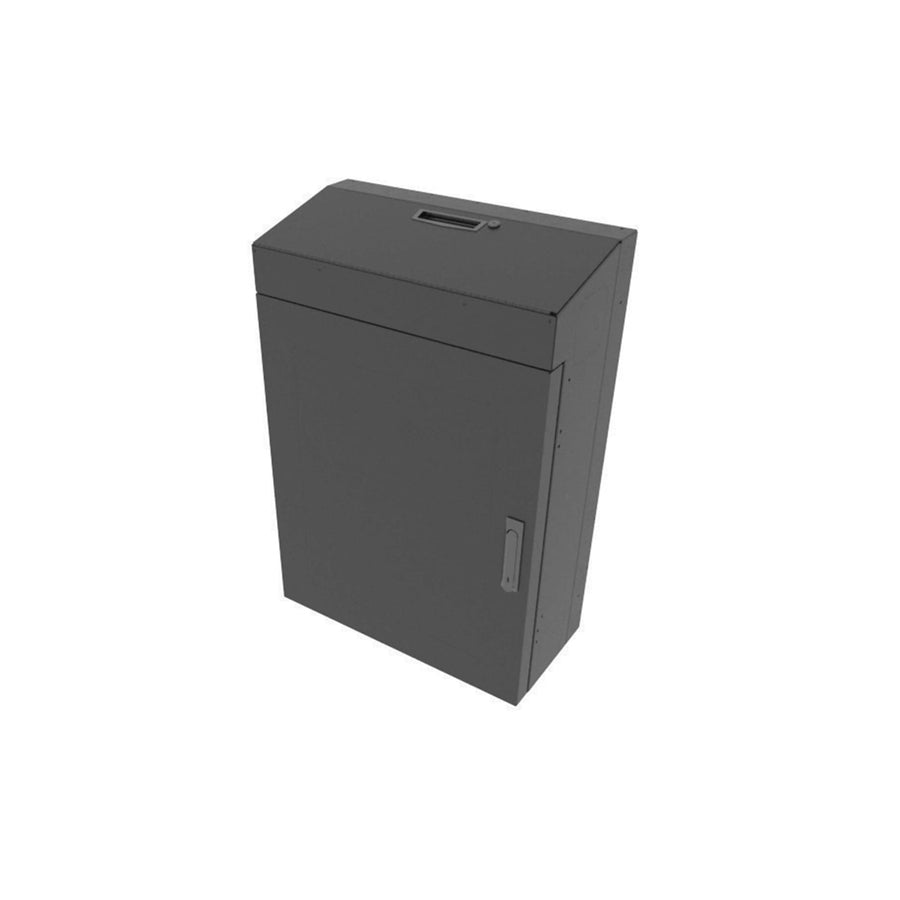

4 RU Low Profile Wall Rack Solid Top - Black
4 RU vertical wall mount rack with 30" usable depth, solid door, and TAA compliance
The VWM-SD-4-36K-BW is a 4 RU low-profile vertical wall rack designed to house deep equipment in a vertical, "knobs-up" orientation. This steel cabinet provides 30" (76.2 cm) of usable depth, making it an efficient solution for mounting deeper hardware in confined spaces. The unit features a split door design with a hinged solid top, allowing end-users to access controls while restricting visibility for security. Both the door and the hinged top are lockable and can be keyed separately. For cable management and thermal regulation, the cabinet includes laser knockouts on the top, bottom, and sides. The rack rails are compatible with both 10-32 thread and cage nut mounting, and the rackrails can be positioned flexibly to meet specific installation requirements. This TAA-compliant, USA-made enclosure is finished in a black textured powder coat and includes an integral electrical box to simplify power distribution for the system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 12 in (30.5 cm) |
| Height | 36 in (91.4 cm) |
| Product Weight | 62.5 lbs (28.4 kg) |
| Rack Units | 4 RU |
| Shipping Weight | 73 lbs (33.1 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 27.8 in (70.6 cm) |
| Width | 25 in (63.5 cm) |
All other specifications 14
| Available Internationally | Yes |
| Color | Black |
| Door Type | Solid Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Rack Rail Type | 10-32 and Cage Nut |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747291579 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
115V Fan 4 1/2 Inch, 95 CFM
MAFAN$99.90
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
4 1/2 Inch DC Fan Kit, 138 CFM
FAN2-DC$132.30
Filter Kit for CWR and VWM Series
FILTER-R-4-2K$154.56
Lever Lock Front Door Kit for VWM Series, fits 36 Inch Split Door
LL-VWM-36SP$101.70
4 RU VWM Series Adjustable Rail/Mounting Bracket Kit
VWM-RR-4$98.10
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Questions about this part
What is the maximum weight capacity for the VWM-SD-4-36K-BW?
This rack has a UL Load Capacity of 150 lbs (68 kg).
What mounting hardware is required for the rackrails?
The rackrail type supports both 10-32 thread and cage nut mounting options.
Can I add active cooling to this vertical rack?
Yes, it is compatible with various fan kits, such as the FAN2-DC-FC 4 1/2 Inch DC Fan Kit with a Thermo Controller.
Does this rack include a power distribution unit?
The cabinet features an integral electrical box, and it is compatible with several PDU options including the PDS-620R multi-mount power unit.
How do I access the equipment once it is mounted?
The design features a split door and a hinged solid top that can be unlocked to provide access to controls.
