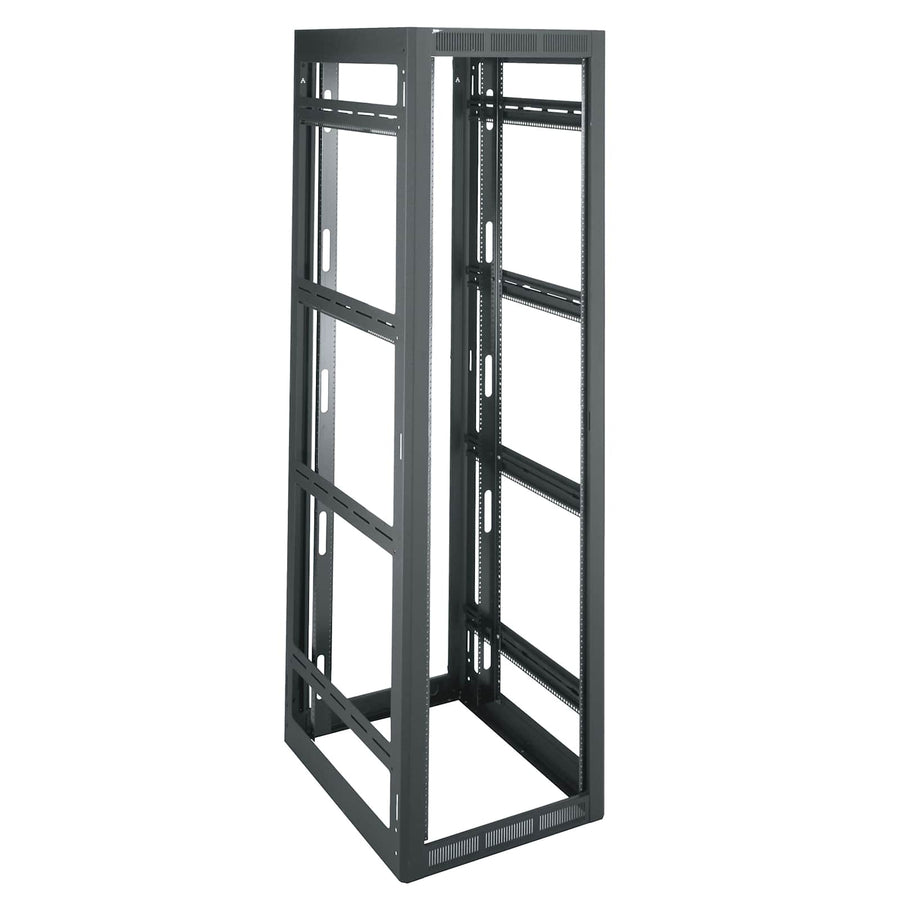

37 RU WRK Series 24-1/4 Inch Wide Rack, 32 Inches Deep without Rear Door
37 RU floor-standing WRK series rack with 32 inch depth and 24-1/4 inch width for heavy cable bundles and enhanced airflow
The Middle Atlantic WRK-37-32LRD is a 37 RU floor-standing rack designed to accommodate equipment with thick cable bundles that require more space than a standard narrow rack provides. This model features a 24-1/4" overall width to facilitate easier side cabling and improved cooling airflow. It is built with fully welded construction for maximum strength and is seismic rated per ASCE 7-10, providing a seismic load capacity of 900 lbs (408.2 kg). The rack includes standard front and rear adjustable 10-32 threaded rackrails with numbered spaces to simplify installation. These extra-wide rackrails include integrated cable pass-throughs to assist with front-to-rear cabling. This specific SKU is provided without a rear door. It is TAA compliant and UL listed, making it suitable for various professional environments. For enhanced mobility, the CBS-WRK-32 caster base is available.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32.63 in (82.9 cm) |
| Height | 70.88 in (180 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 37 RU |
| Shipping Weight | 173.6 lbs (78.7 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 30.75 in (78.1 cm) |
| Usable Height | 64.75 in (164.5 cm) |
All other specifications 12
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 24.25 in (61.6 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747024665 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 900 lbs (408.2 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
380 CFM Fan Top
MW-4FT-380CFM$649.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Caster Base for 32 Inch Deep WRK Series
CBS-WRK-32$405.00
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
PDT Low Profile Vertical Power Strip, 14 Outlet, 15A
PDT-1415C-NS$286.20

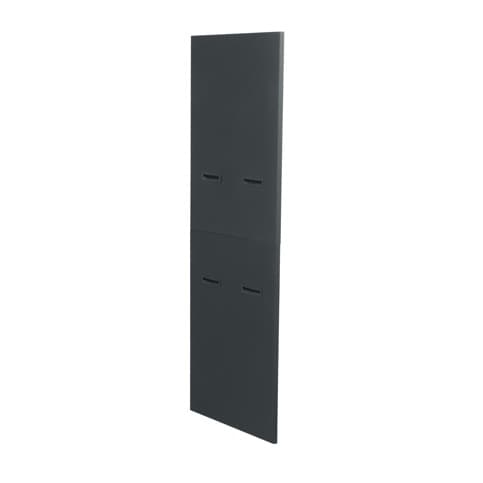

37 RU Side Panels for 31-32 Inch Deep MRK or WRK Racks
SPN-37-312$995.40
37 RU Rackrail 10-32 for WRK Series
WRK-RR37$231.30
37 RU Rackrail Cage Nut for WRK Series
PROWRK-RR37$275.40
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
Is the WRK-37-32LRD seismic rated?
Yes, this rack is seismic rated and meets ASCE 7-10 standards with a seismic load capacity of 900 lbs (408.2 kg).
What is the maximum weight capacity for this rack?
The rack has a total weight capacity of 10,000 lbs (4535.9 kg) and a UL load capacity of 2,500 lbs (1,134 kg).
What accessories are needed to complete the enclosure?
This SKU ships without a rear door. You can add SPN-37-312 side panels and other components like the CBS-WRK-32 caster base for mobility.
Does this rack support TAA compliance?
Yes, the WRK-37-32LRD is TAA compliant and is manufactured in the USA.
What are the mounting rail specifications?
The rack features standard front and rear adjustable 10-32 threaded rackrails with numbered spaces for organized installation.
