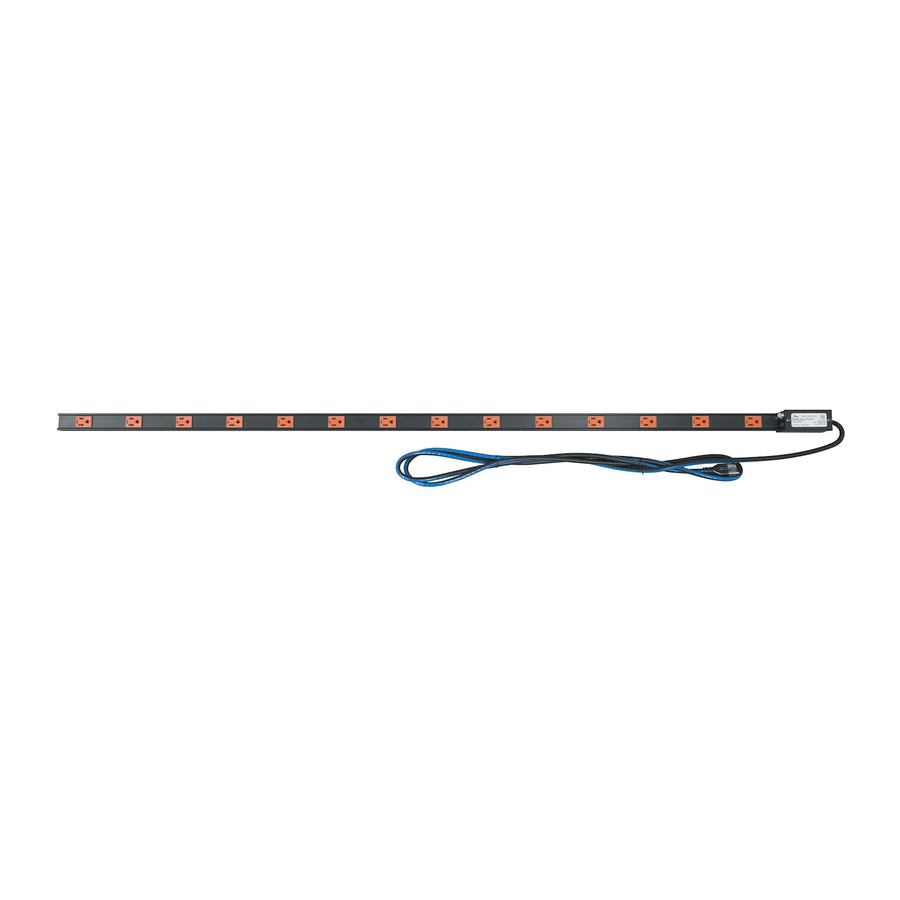

PDT Low Profile Vertical Power Strip, 14 Outlet, 15A
14 outlet vertical power strip with 9 ft (2.7 m) cord, 15A capacity, and a low-profile chassis for space-saving rack installation
The Middle Atlantic PDT-1415C-NS is a low-profile vertical power distribution strip designed to maximize outlet density without consuming precious rack units. With a highly efficient 1.58 in (4 cm) width and a shallow 2.1 in (5.3 cm) depth, this 14 outlet unit fits unobtrusively into the rear of a rack, placing power connections immediately adjacent to the equipment. This specific corded model features a 9 ft (2.7 m) SignalSAFE™ wire, which is engineered to minimize potential signal interference caused by AC magnetic fields from other rack-mounted equipment. The PDT-1415C-NS operates on 120 VAC at 15 Amps and is ETL listed for safety. Installation is streamlined via a clip-in mounting system that snaps the PDU into place on any Middle Atlantic rack rail bracket style. The included mounting hardware is reusable, allowing for quick adjustments during system integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 59.88 in (152.1 cm) |
| Shipping Weight | 4.8 lbs (2.2 kg) |
| Volts AC | 120 VAC |
| Width | 1.58 in (4 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Local Meter | No |
| Number of Circuits | 1 |
| Outlet Count | 14 |
| Plug Type | 5-15P |
| UPC | 656747191756 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will this power strip fit in my Middle Atlantic rack?
Yes, the PDT-1415C-NS is designed to mount to every style of Middle Atlantic rack rail bracket using the included snap-in clips.
How do I install the PDT-1415C-NS in a rack?
The unit features a simple one-step installation where you snap the PDU into the rack rail using the provided reusable mounting hardware.
Does the corded model help with signal interference?
Yes, this corded model utilizes SignalSAFE™ wire to help minimize potential interference from AC magnetic fields generated by other equipment in your rack.
What is the total reach of the power cord?
The PDT-1415C-NS comes equipped with a 9 ft (2.7 m) corded cable and a standard 5-15P plug.
What documentation is available for submittals?
You can access the PDT Series Thin Power Distribution A&E Specification Sheet and CAD technical drawings through the Resources tab for system submittals.
