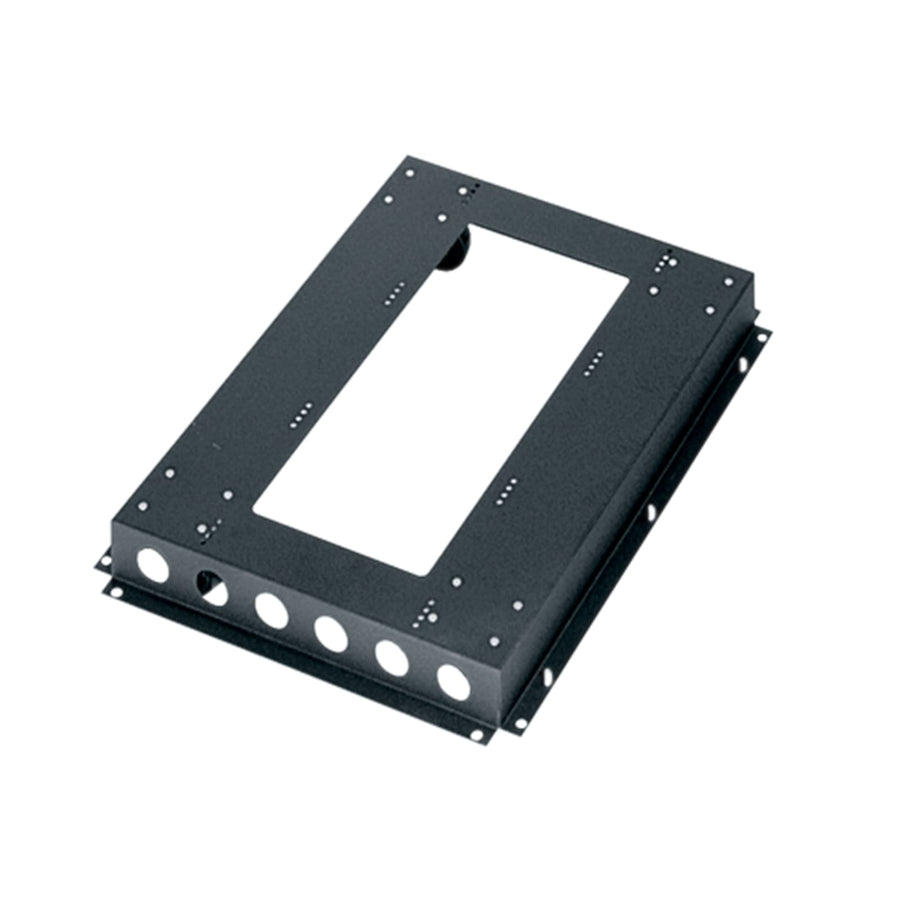

Caster Base for 32 Inch Deep WRK Series
Caster base for 32 inch deep WRK Series racks, 1,300 lbs capacity, featuring 3" non-locking swivel casters
The Middle Atlantic CBS-WRK-32 is a specialized caster base designed specifically for use within 32 in (81.3 cm) deep WRK Series racks. This inner caster base design is engineered to keep the rack height low to maintain maximum stability during transport or repositioning. When installed, this base only increases the overall height of your rack by 1 in (2.54 cm). Constructed from robust steel with a black wrinkle powder coat finish, it supports a weight capacity of 1,300 lbs (589.7 kg). The unit features four 3" pre-installed non-locking commercial grade swivel casters for maneuverability. This product is UL Listed in the US and Canada and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 32 in (81.3 cm) |
| Height | 4 in (10.2 cm) |
| Product Weight | 29.3 lbs (13.3 kg) |
| Shipping Weight | 31.3 lbs (14.2 kg) |
| Weight Capacity | 1300 lbs (589.7 kg) |
| Width | 23.13 in (58.8 cm) |
| Base Series | WRK |
| Finish | Black Wrinkle Powder Coat |
| Style | Standard |
| UPC | 656747003417 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
Will the CBS-WRK-32 fit my WRK Series rack?
The CBS-WRK-32 is designed specifically for 32 inch deep WRK Series racks and will fit inside them.
Can I secure the rack once it is on the casters?
Yes, this base works with LF leveling feet to secure the rack in place after it has been moved.
What accessories are needed to stabilize the rack?
To secure the rack in place, you can use LF leveling feet or LF-ISO leveling feet isolating.
Is the CBS-WRK-32 UL listed?
Yes, this caster base is UL Listed in both the US and Canada and is TAA compliant.
What is the height increase when using this base?
Because this uses an inner caster base design, it only increases your overall rack height by 1 in (2.54 cm).
