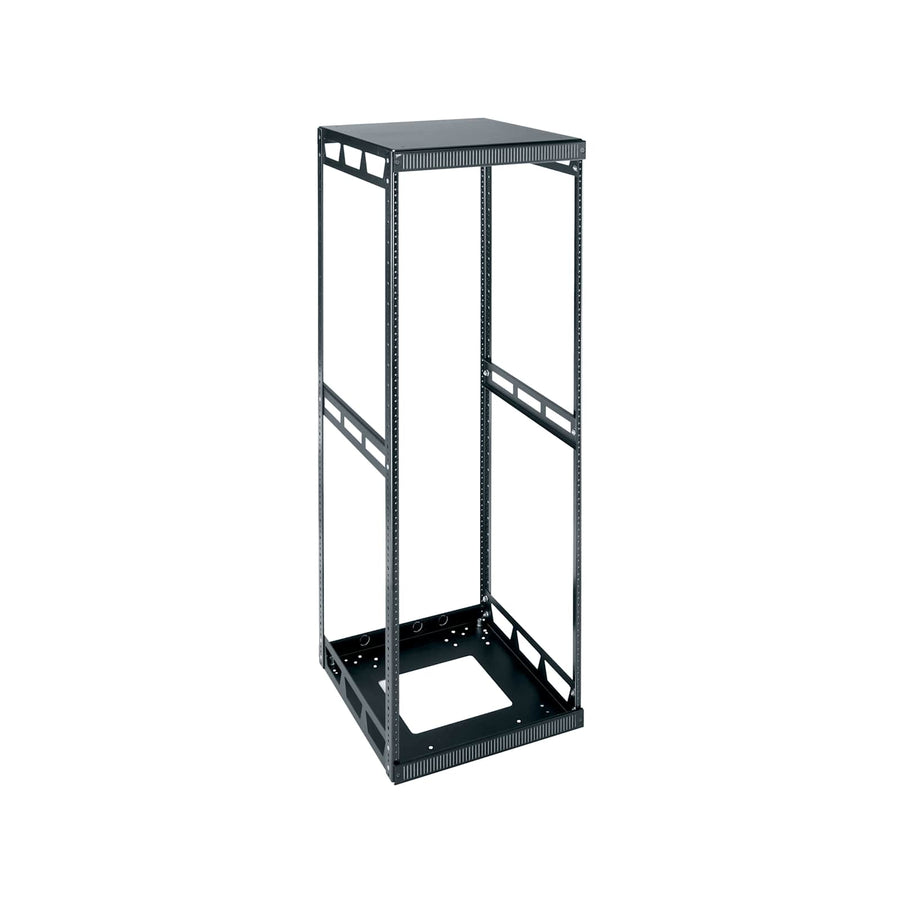

29 RU Slim 5 Series 19-1/8 Inch Wide Rack Frame, 26 Inches Deep
29 RU floor standing rack frame, 26" usable depth, 400 lbs capacity, TAA compliant
The Middle Atlantic 5/29/2026 is a 29 RU Slim 5 Series rack frame designed for versatile integration in various professional AV environments. This floor-standing frame features a 26 in (66 cm) usable depth and a total height of 54.5 in (138.4 cm). Built with strong steel construction, it utilizes a unique interlocking corner joint to provide exceptional strength while maintaining an open design for easy access to equipment. This knockdown rack type is shipped ready-to-assemble in a bolt-together configuration, which facilitates flat shipment via UPS. The frame includes standard front and rear fixed 10-32 threaded rackrails with marked spaces to accommodate 19 in (48.3 cm) wide equipment. For specialized airflow or security requirements, the frame accepts optional removable steel side panels and features two laser knockout locations on the top for mounting cooling fans. This unit is TAA compliant and UL listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26 in (66 cm) |
| Height | 54.5 in (138.4 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 42 lbs (19.1 kg) |
| Rack Units | 29 RU |
| Shipping Weight | 53.73 lbs (24.4 kg) |
| UL Load Capacity | 400 lbs (181.4 kg) |
| Usable Depth | 26 in (66 cm) |
All other specifications 10
| Usable Height | 50.75 in (128.9 cm) |
| Width | 19.13 in (48.6 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| TAA Compliant | Yes |
| UPC | 656747064135 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
Caster Kit for Slim 5 Series Locking
5WL$120.60
1 RU BlowerPanel, 100 CFM, 32dB & Anodized
QBP-2A$640.80
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20

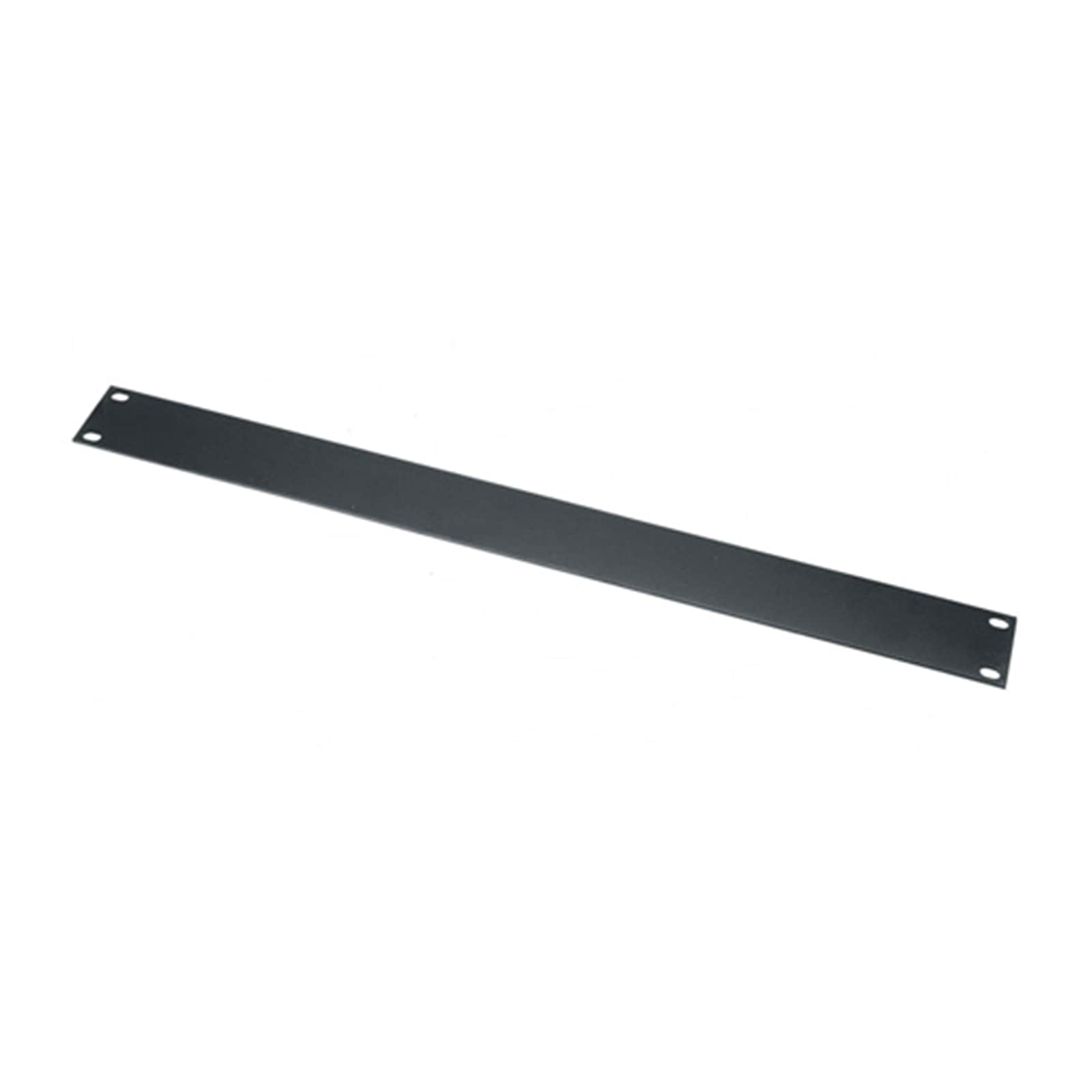

1 RU Flat Blank Rack Panel, Aluminum
PHBL-1$19.80

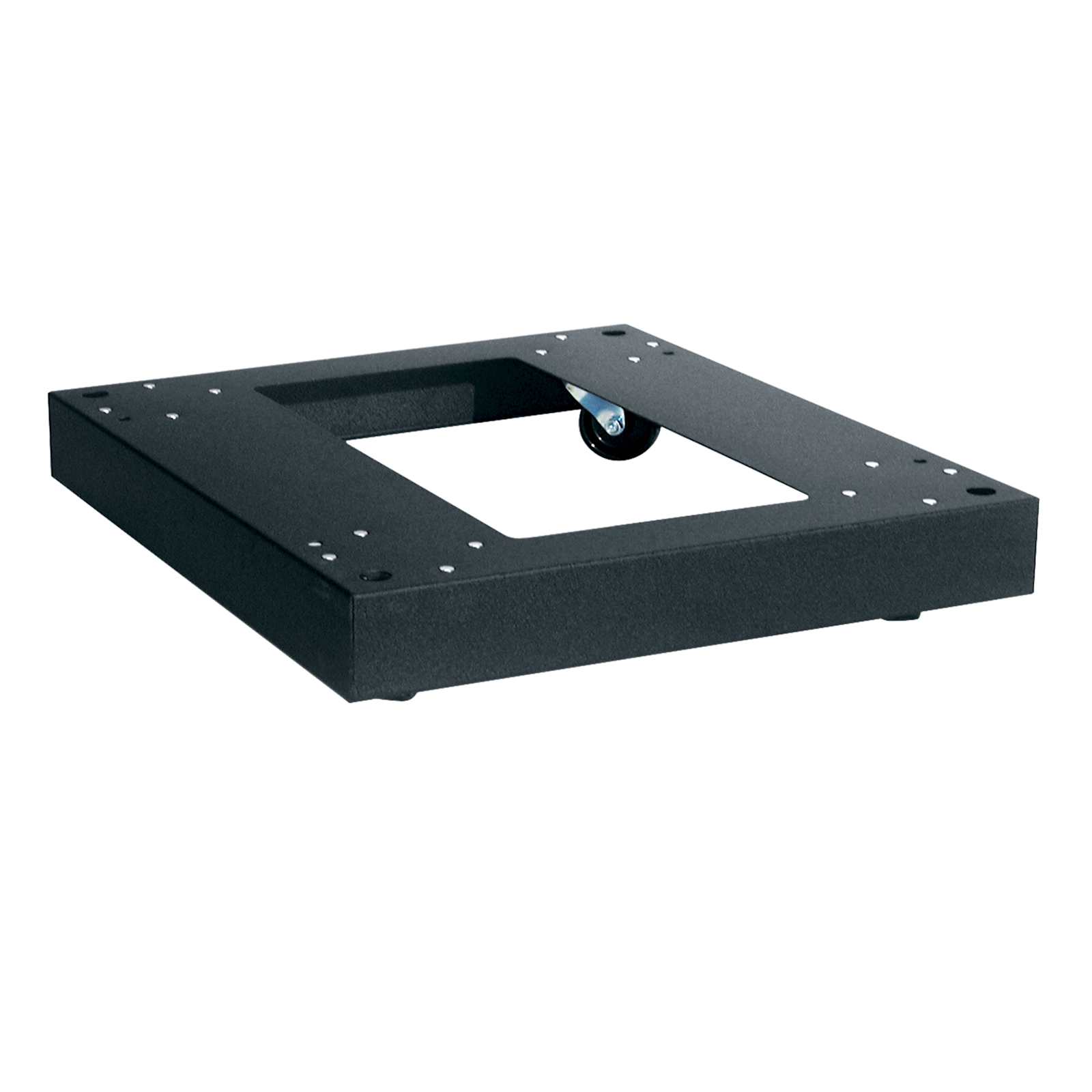

Caster Base for 26 Inch Deep Slim 5 Series
CBS-5-26$324.00
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A & 2-Stage Surge
PDT-1015C-RN$297.90
Questions about this part
What accessories are required to secure this rack?
This is a frame-only configuration. You can add security and airflow control by installing optional removable steel side panels or the CBS-5-26 Caster Base.
Can I install cooling fans in this frame?
Yes, the top of the frame includes two laser knockout locations specifically for mounting cooling fans.
How much weight can this 29 RU rack support?
The 5/29/2026 has a UL listed load capacity of 400 lbs (181.4 kg).
Is this rack suitable for TAA compliant projects?
Yes, this rack frame is TAA compliant and is manufactured in the USA.
How does this compare to other Slim 5 Series models?
This 29 RU model is part of a series that includes other sizes, such as the 37 RU and 43 RU variants.
