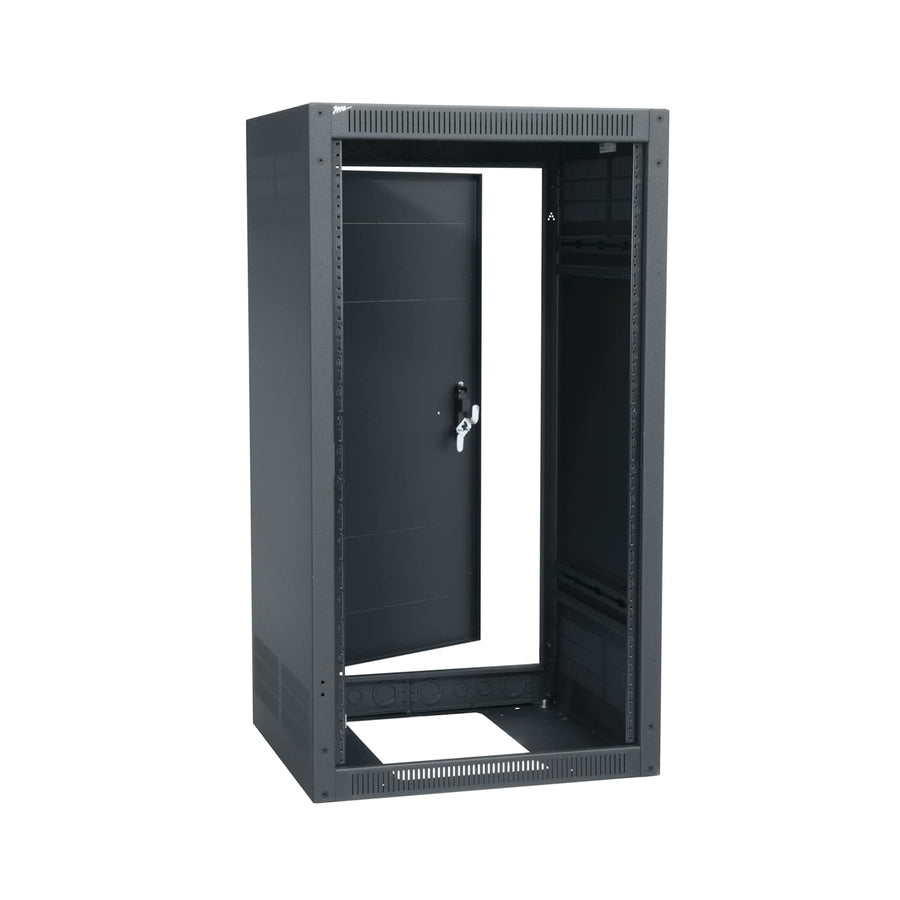

27 RU ERK Series Rack, 20 Inches Deep
27 RU floor-standing rack, 20" deep, featuring a key-locked rear door and seismic rating
The ERK-2720 is a 27 RU floor-standing rack designed for economical, standalone AV installations. Built with fully welded steel construction, this frame provides a high-strength foundation with a UL-listed load capacity of 2,500 lbs (1,134 kg). For installations requiring enhanced security or thermal management control, these units can be ganged together to create partitioned multi-bay enclosures. This specific 20 in (50.8 cm) deep model features a usable depth of 18.47 in (46.9 cm) and a usable height of 47.38 in (120.4 cm). For seismic environments, the ERK-2720 is seismic rated and provides a seismic load capacity of 597 lbs (270.8 kg) when installed with ERK-Z4 brackets. The unit includes a key-locked standard rear door for secure equipment access and features top and bottom venting in the rack sides to facilitate airflow. The front adjustable 10-32 threaded rackrails include numbered spaces and lacing points for organized cable management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 51.38 in (130.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 74.1 lbs (33.6 kg) |
| Rack Units | 27 RU |
| Shipping Weight | 106 lbs (48.1 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 18.47 in (46.9 cm) |
All other specifications 15
| Usable Height | 47.38 in (120.4 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747006272 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 597 lbs (270.8 kg) |
Resources
You'll need these with it
KO Series Rear Door Fan Kit, 190 CFM
KO-AWFP2$252.90
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
1 RU Mounting Rackshelf - 12 Piece
UTR1-RP12$615.60
1 RU Sliding Rackshelf
SS$254.70
27 RU Vented Front Door for ERK Racks
VFD-27$508.50
Fan panel, 3 fan, Anodized
FP3$79.20
Fan panel, 2 fan, Anodized
FP2$75.60
Questions about this part
Will the ERK-2720 fit my equipment depth requirements?
The ERK-2720 has a total depth of 20 in (50.8 cm) with a usable depth of 18.47 in (46.9 cm) to accommodate various AV components.
Is the ERK-2720 seismically rated for high-activity areas?
Yes, this rack is seismic rated and provides a seismic load capacity of 597 lbs (270.8 kg) when installed specifically with ERK-Z4 brackets.
What accessories are compatible with the ERK-2720 for cooling?
You can enhance airflow using the KO-AWFP2 Rear Door Fan Kit or the QFAN 115V 4 1/2 Inch fan for active thermal management.
Can I customize the ERK-2720 to be a full enclosure?
This SKU is the Frame Only configuration; you can add components like the VFD-27 Vented Front Door to complete the enclosure.
What is the weight capacity of this 27 RU rack?
The ERK-2720 is UL Listed with a 2,500 lbs (1,134 kg) load capacity for heavy equipment installations.
