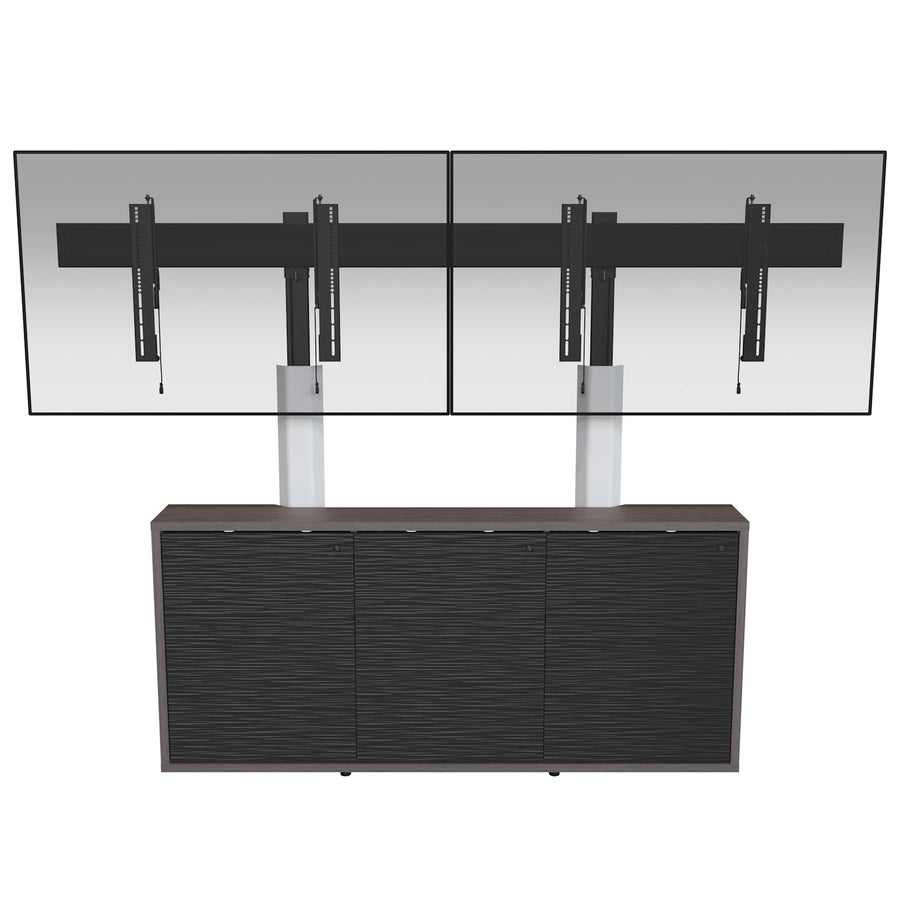

24 Inch C3 Dual Display Mount System
Dual display mount for 50"–70" displays, 300 lbs capacity, compatible with 24 Inch C3 Credenza frames
The Middle Atlantic C3-24-LD2U is a dual display mount system specifically engineered to convert C3 Credenzas into complete AV systems. Designed in partnership with Chief, this system utilizes Chief Fusion® extrusion to ensure compatibility with a wide range of Fusion® series accessories. This SKU is intended for use with the 24 Inch C3 Credenza series, specifically supporting 1, 2, 3, and 4 bay C3 Credenza frames and woodkits. The system is built from steel and features height-adjustable telescoping uprights to accommodate different installation requirements. Once mounted to the wall with minimal hardware, the weight is supported by the C3 Credenza and the integrated stabilizing feet. This mount offers a 300 lbs (136 kg) weight capacity and supports two displays with a mounting pattern compatibility ranging from 100x100 to 800x400. For professional finishes, the included white paintable upright covers allow the mount to blend into the surrounding wall color.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.9 in (7.4 cm) |
| Height | 60.5 in (153.7 cm) |
| Max Screen Size | 70 in (177.8 cm) |
| Product Weight | 43 lbs (19.5 kg) |
| Shipping Weight | 50 lbs (22.7 kg) |
| Supported Display Size | 50" - 70" |
| Weight Capacity | 300 lbs (136 kg) |
| Base Series | 24 Inch C3 Credenza |
All other specifications 6
| Color | Black |
| Height Adjustable | Yes |
| Material | Steel |
| Mounting Hardware Included | Yes |
| Number of Displays | 2 |
| UPC | 656747389849 |
Resources
You'll need these with it
Fusion® Above/Below ConferenceSHOT ePTZ Camera Mount for Extra-Large Displays
FCA810K$112.80
Fusion® Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
FCA800K$106.40
Fusion® Above/Below IntelliSHOT Camera Mount for Extra-Large Displays
FCA810E$201.60
Fusion® Side Channel Speaker Adapter, Extra-Large Displays
FCA841$255.20
Fusion® Side Channel Speaker Adaptor
FCA831$231.20
Fusion® and Thinstall™ Hardware Kits | Legrand AV
FHB5149$116.80
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Fusion® Low-Profile Above/Below Shelf for Large Displays
FCA803$140.00
Fusion® Lower Component Shelf, Large Displays
FCA802$166.40
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
Fusion® Above/Below IntelliSHOT Camera Mount for Large Displays
FCA800E$154.40
Verified fitment
Questions about this part
Will the C3-24-LD2U fit my specific display?
This system is verified against 4,165 display models from 130 manufacturers, including Sony FW65BZ35L, Samsung 550DX, and LG 24LF4820. It supports displays from 50" to 70".
What is the weight capacity of this dual mount?
The system has a 300 lbs (136 kg) weight capacity when supporting two displays.
What accessories are compatible with the Chief Fusion extrusion?
It is compatible with Fusion® series accessories such as the FCA812 Lower Component Shelf (Extra-Large displays) or the FCA821 Center Camera Shelf.
How is the display height adjusted after installation?
The system features telescoping uprights that allow for 6" of fine-tune adjustment to achieve perfect display placement after the initial installation.
Does this mount require a specific wall installation?
The mount attaches to the wall using minimal hardware, while the primary weight is supported by the C3 Credenza and its stabilizing feet.
