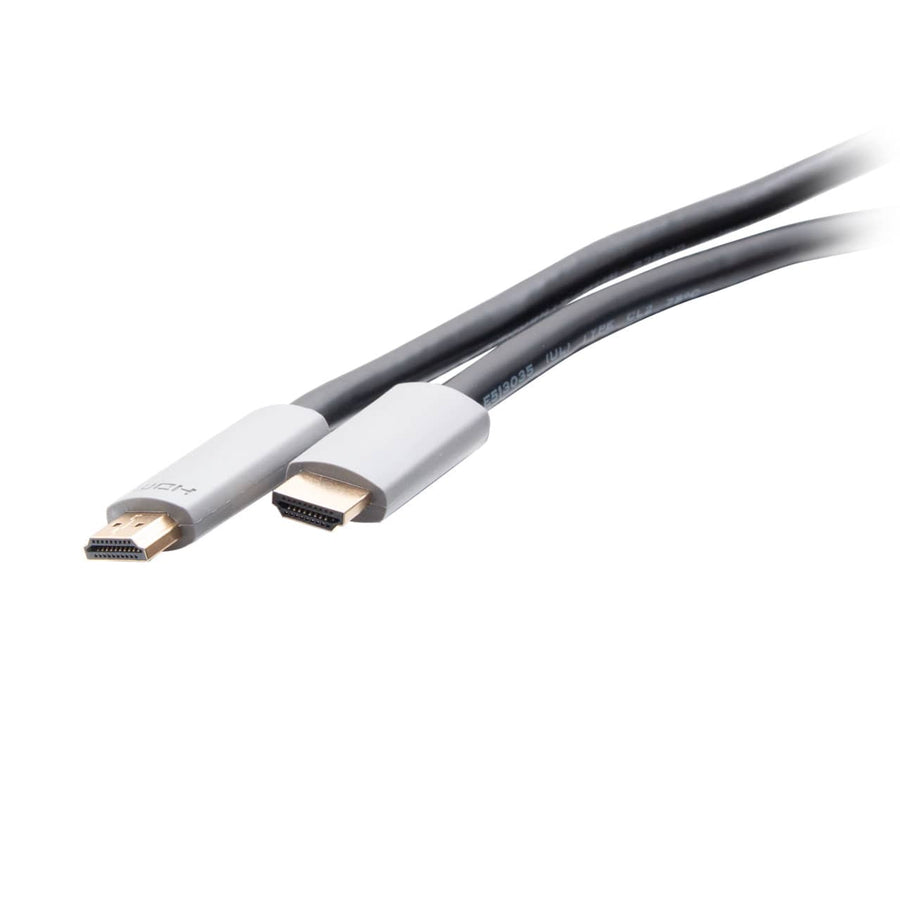

20ft (6.1m) Plus Series Select High Speed HDMI® Cable with Ethernet
20ft (6.1m) High Speed HDMI cable for 4K @ 60Hz, CL2 rated for in-wall use and featuring gold-plated connectors
The C2G CG50632 is a 20ft (6.1m) High Speed HDMI cable designed for connecting multimedia source devices in desktop or commercial audio-video environments. This cable supports 4K @ 60Hz video resolution and features an 18 GBPS data transfer rate. For professional installations, the jacket is CL2 rated, making it suitable for in-wall applications. The cable features gold-plated connectors to improve electrical conductivity and provide enhanced durability over time. It supports CEC extensions, allowing for the control of multiple consumer electronics devices through a single control point, and is capable of supporting 32 audio channels for immersive sound. This black HDMI cable has a 0.35 in (8.8 mm) diameter and a bend radius of 3.46 in (88 mm), making it manageable for routing in tight spaces during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 3.46 in (88 mm) |
| Cable Diameter | 0.35 in (8.8 mm) |
| Cable Length | 20 ft (6.1 m) |
| Package Count | 1 |
| Shipping Weight | 1.27 lbs (0.6 kg) |
| Cable Type | High Speed HDMIVideo |
| Color | Black |
| Connector 1 | (1) HDMI Male |
All other specifications 10
| Connector 2 | (1) HDMI Male |
| HDMI Type | High Speed |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CL2 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
4-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41058$132.99
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
20ft (6.1m) Performance Series AOC High Speed HDMI® Cable
C2G41481$271.99
Questions about this part
Can I run the CG50632 cable inside a wall?
Yes, the CG50632 features a CL2 rated jacket specifically designed to meet the requirements for in-wall installations.
What video resolution does this HDMI cable support?
This High Speed HDMI cable supports a video resolution of 4K @ 60Hz with an 18 GBPS data transfer rate.
What are the physical dimensions of this 20ft cable?
The cable has a 0.35 in (8.8 mm) diameter and a minimum bend radius of 3.46 in (88 mm).
Does this cable support audio features like CEC?
Yes, it supports CEC extensions for controlling multiple devices and can support up to 32 audio channels.
Is there a warranty included with the CG50632?
This C2G Plus Series cable is covered by a lifetime warranty.
