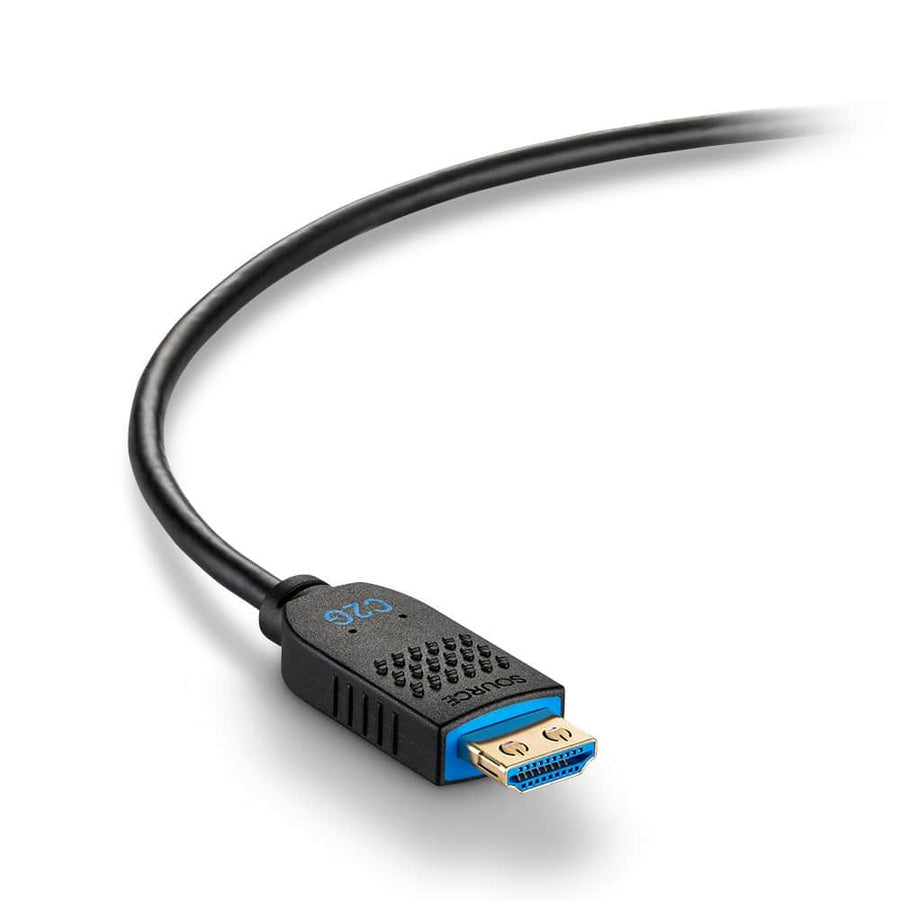

200ft (61m) Performance Series AOC High Speed HDMI® Cable
200ft (61m) Active Optical HDMI cable supporting 4K @ 60Hz with a plenum-rated jacket
The C2G41489 is a 200 ft (61 m) Performance Series Active Optical (AOC) HDMI cable designed to deliver stable, high-resolution video in high-interference environments. Its fiber strand construction reduces the risk of EMI/RFI, making it a reliable choice for data centers, manufacturing facilities, and surgical theaters where consistent signal integrity is critical. This high-speed cable supports video resolutions up to 4K (4096 x 2160) @ 60Hz and features an 18 GBPS data transfer rate. For commercial installations, the plenum-rated jacket allows for safe use in spaces above dropped ceilings or beneath raised floors in hospitals and schools. The cable is directional, with the source connector clearly labeled and tagged to prevent installation errors. The gold-plated male HDMI connectors feature integrated finger grips for easier insertion and removal, while the gripping connector shell provides 2x greater port retention to ensure secure connections at the device end.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.95 in (75 mm) |
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 200 ft (61 m) |
| Shipping Weight | 7.56 lbs (3.4 kg) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) HDMI Male |
All other specifications 9
| HDMI Type | Active Optical |
| Jacket Rating | Plenum Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| UPC | 757120414896 |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
4-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41058$132.99
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
100ft (30.5m) Performance Series AOC High Speed HDMI® Cable
C2G41486$510.99
Questions about this part
Is the C2G41489 suitable for commercial plenum airspaces?
Yes, this cable features a plenum-rated jacket designed for use in spaces above dropped ceilings or beneath raised floors in commercial buildings like hospitals and schools.
Does this HDMI cable support 4K resolution?
Yes, the C2G41489 supports High Speed resolutions up to 4K (4096 x 2160) @ 60Hz, providing high-quality video content.
How do I know which end is the source end?
This is a directional cable; the source connector is specifically labeled and tagged to help you differentiate it from the display connector during installation.
What makes this cable better for data centers or surgical theaters?
The fiber strand construction within the C2G41489 reduces EMI/RFI risks, providing more stable performance in high-interference environments compared to standard copper cables.
How long is the C2G41489 cable?
This specific SKU is a 200 ft (61 m) length. A shorter 100 ft (30.5 m) version is also available under SKU C2G41486.
