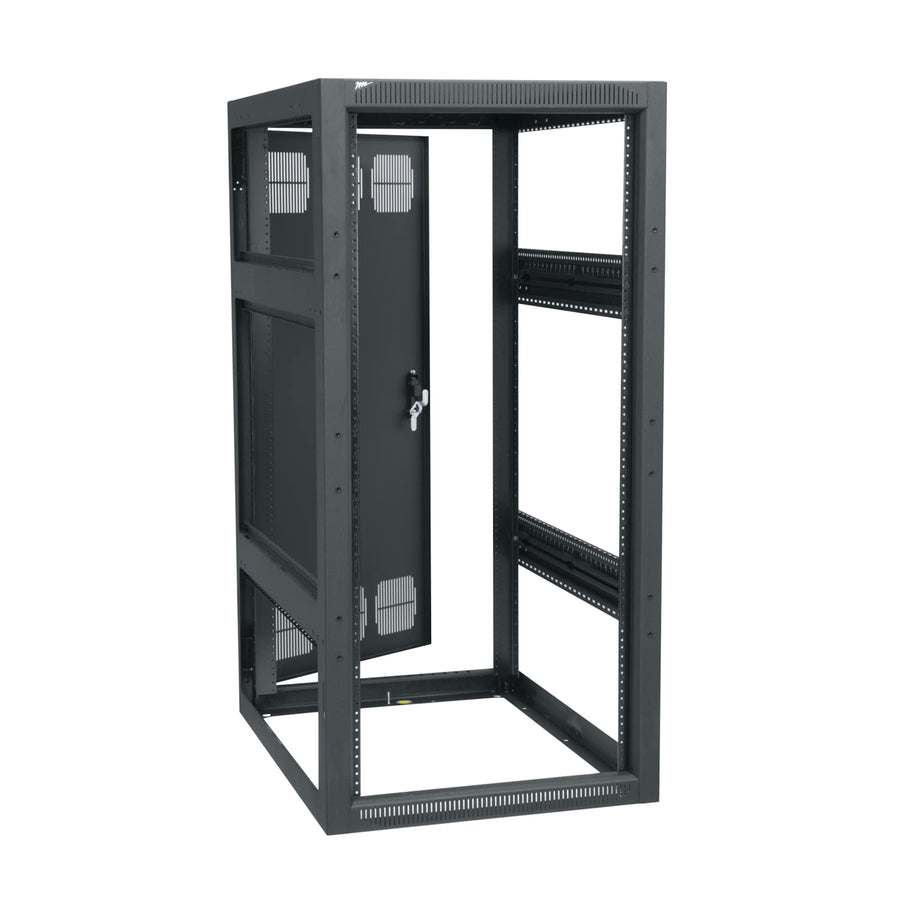

19 RU BGR Series Rack, 27 Inches Deep
19 RU floor-standing BGR series rack, 27" deep, seismic rated with Forward and Lever Lock™ compatibility
The Middle Atlantic BGR-1927 is a 19 RU floor-standing rack designed for professional AV environments requiring high structural integrity and installation efficiency. This 27 in (68.6 cm) deep frame is built from steel with a black wrinkle powder coat finish and features a 23 in (58.4 cm) width to provide extra lateral space for front-to-back cable management. As the first Forward Compatible rack, it utilizes Forward Rackrail with numbered spaces for adjustable front and rear positioning, allowing for significantly faster installation. This model is Seismic Rated with a seismic load capacity of 1175 lbs (533 kg) and carries a UL Load Capacity of 3000 lbs (1,360.8 kg). The configuration is a Frame Only setup including a standard vented rack rear door that accepts optional fans or a brush grommet rear door kit for large cable passages. It is TAA compliant and gangable for larger system configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 37.38 in (95 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 19 RU |
| Shipping Weight | 107 lbs (48.5 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 33.38 in (84.8 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747142352 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
1 RU Fan Tray, 6 Fans, 414 CFM & 220 - 240VAC
IFTA-6$762.30

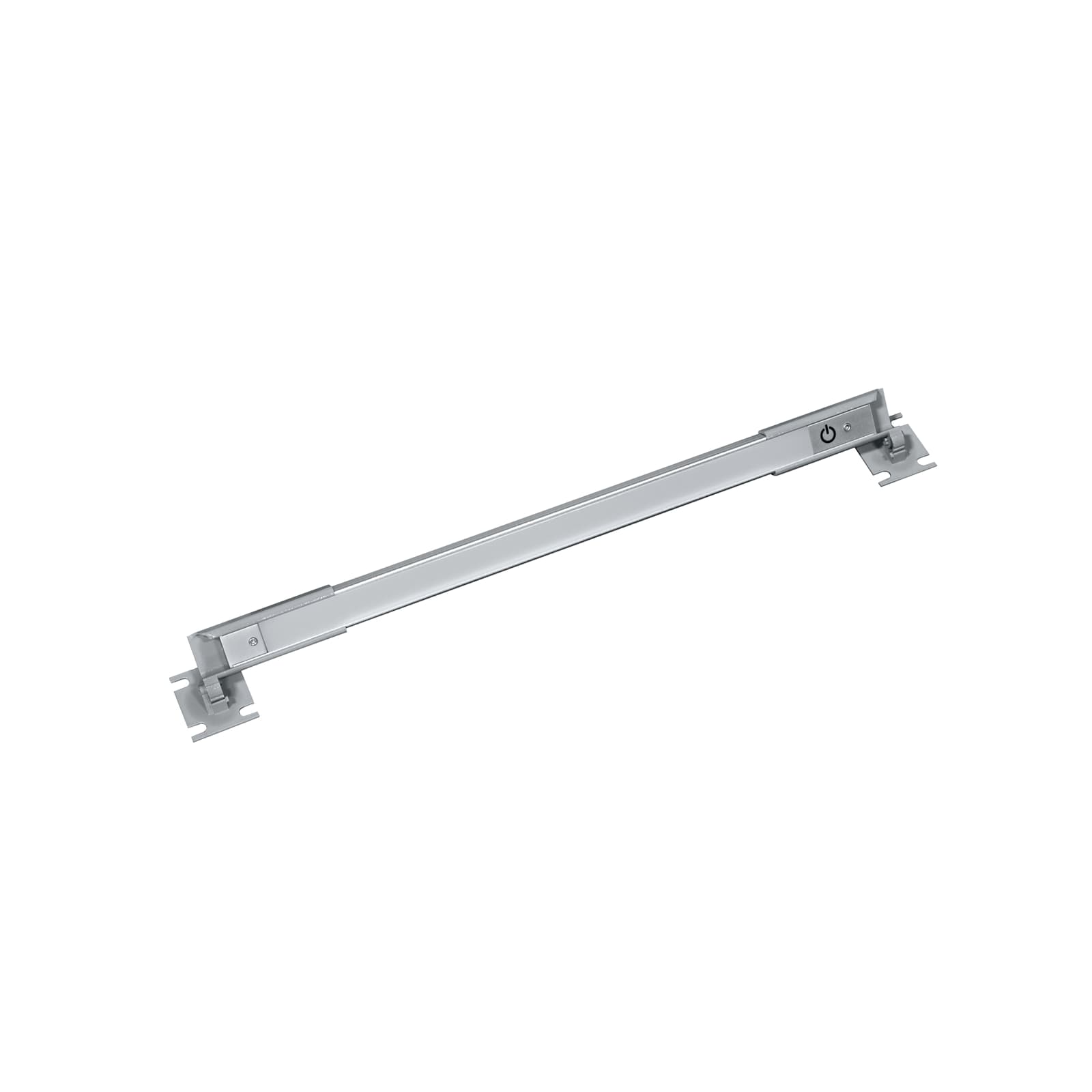

Single LED Work Light
LT-CABUTL-SINGLE$261.00
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
12 RU Copper Bus Bars, 2 Inch Wide
BB-12$148.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
Will the BGR-1927 fit my specific AV equipment?
This 19 RU rack is designed for standard 19 in (48.3 cm) panel width equipment. Its 24.4 in (62 cm) usable depth provides ample space for most standard rack-mount chassis and components.
What is the difference between the BGR-1927 and other BGR series racks?
The BGR-1927 is the 27 in (68.6 cm) depth variant within the BGR series; other models in this series offer different rack unit heights and depths to suit specific footprints.
Can I add cable management or cooling to this rack?
Yes. The wide 23 in (58.4 cm) width allows for side Lacing and vertical cable management, while the vented rear door accepts optional fan kits like the UQFP-4RT or FAN2-DC-FC.
Is this rack suitable for seismic or high-vibration environments?
Yes, the BGR-1927 is Seismic Rated with an ASCE and HCAI (formerly OSHPD) certification, providing a seismic load capacity of 1175 lbs (533 kg).
What accessories are required to complete the installation?
This SKU is a Frame Only configuration. You may need to separately purchase accessories such as the CBS-BGR caster base, PDU units like the PDT-1620C-NS, or LED work lights.
