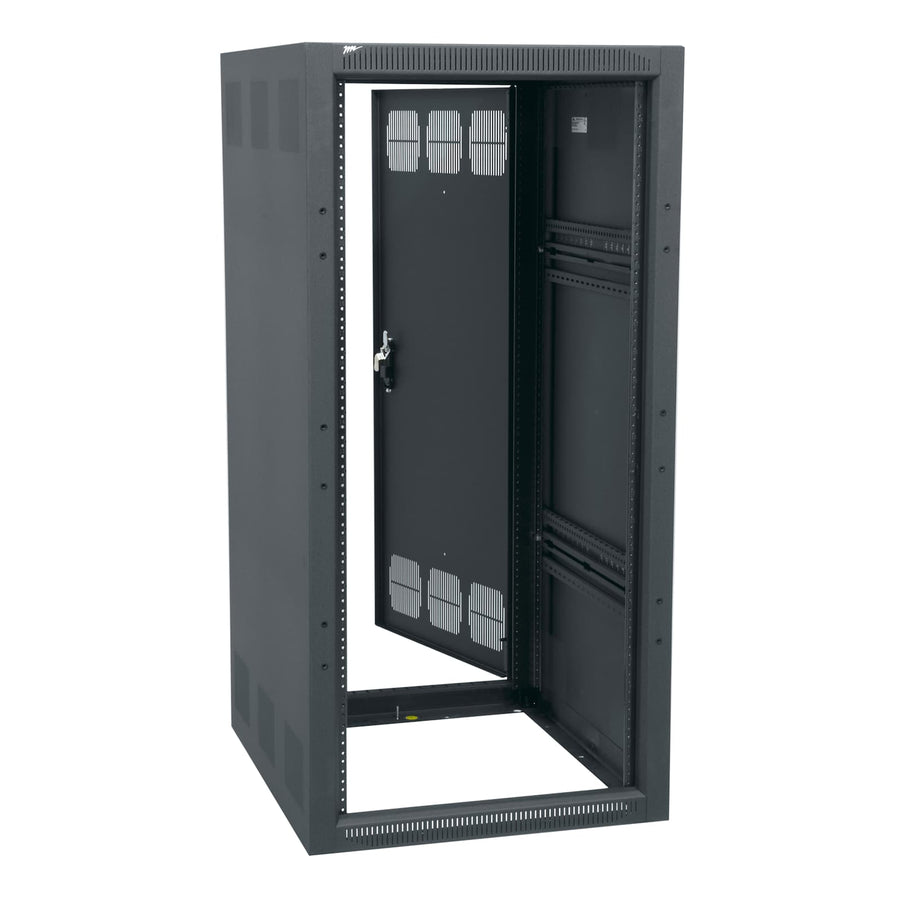

19 RU BGR-SA Series Rack, 27 Inches Deep
19 RU floor-standing AV rack, 27 in (68.6 cm) deep, seismic rated with Forward compatibility and a 3000 lbs UL load capacity
The Middle Atlantic BGR-19SA-27 is a 19 RU standalone AV rack designed for high-performance system integration. Featuring a 27 in (68.6 cm) depth and a 23 in (58.4 cm) total width, this rack provides extra side room for front-to-back cable management or mounting small devices via the Lever Lock™ system. This unit is the first in its class to be Forward Compatible, allowing for rapid, tool-free installations with compatible accessories. The design includes a solid-sided construction to enhance system security and manage airflow, while the integrated ganging holes allow multiple BGR-SA units to be joined together. This rack includes a standard vented rear door, which is compatible with optional brush grommet kits for cable passage or fan panels for enhanced cooling. For heavy-duty deployments, the steel frame offers a 3000 lbs UL load capacity and a seismic load capacity of 1175 lbs (53 dekg). It is TAA compliant, UL listed, and carries ASCE and HCAI (formerly OSHPD) certifications, making it suitable for demanding professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 37.38 in (95 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 19 RU |
| Shipping Weight | 121 lbs (54.9 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 33.38 in (84.8 cm) |
All other specifications 17
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747142338 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, Textured
QTFP-2$243.00
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
1 RU Fan Tray, 3 Fans, 207 CFM
FTA-3$556.20
Multi-Mount PDU, 20 Outlet & 15A
PD-2015R-NS$333.00
115V Fan 4 1/2 Inch, 95 CFM
MAFAN$99.90
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A Basic Surge
PDT-615C$286.20
19 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR19$152.10
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Premium Series UPS Replacement Battery Pack
UPS-RBP$936.00
Questions about this part
Will the BGR-19SA-27 fit my equipment depth requirements?
The BGR-19SA-27 features a 27 in (68.6 cm) total depth with 24.4 in (62 cm) of usable depth, providing sufficient clearance for most standard AV components.
Is this rack suitable for seismic or high-vibration environments?
Yes, this rack is Seismic Rated with a seismic load capacity of 1175 lbs (533 kg) and is UL Listed for safety.
What accessories are compatible with the BGR-19SA-27?
This rack accepts the Lever Lock™ system for tool-free management and is compatible with various accessories like the CBS-BGR Caster Base and various PDU models such as the PDT-1620C-NS.
Can I add cooling to this rack?
The included standard vented rear door is designed to accept optional fans, such as the QTFP-2 100 CFM Fan Panel, to manage thermal loads.
How do I handle cable entry through the rear door?
Installers can use the brush grommet rear door kit to allow for large cable passage without the need for additional fishing.
